SUEI Series 3/8in Tube Outside Diameter Union Elbow
SUEI Series 3/8in Tube Outside Diameter Union Elbow
SKU:SUE-82993d
Precision-engineered 3/8in Tube Union Elbow for efficient and safe fractional tube connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUEI Series 3/8in Tube Outside Diameter Union Elbow
$39.99
Quantity: 1
Claim Your Seller Account
SUEI Series 3/8in Tube Outside Diameter Union Elbow
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

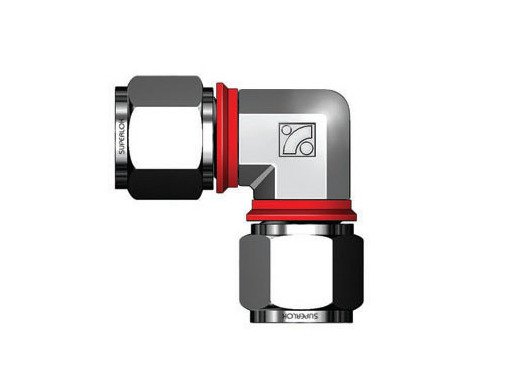

The SUEI Series 3/8in Tube Outside Diameter Union Elbow is designed to connect fractional tubes with precision and reliability. Made from high-quality materials such as Alloy 625, Alloy 825, and Stainless Steel, this union elbow ensures durability and corrosion resistance. The innovative i-Fitting® components enhance installer safety, productivity, and cost-efficiency by providing a built-in gap gauge to prevent over-tightening. Ideal for high-pressure and chemical environments, this industry-changing design is applicable to valve connections, meeting the highest standards of quality and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

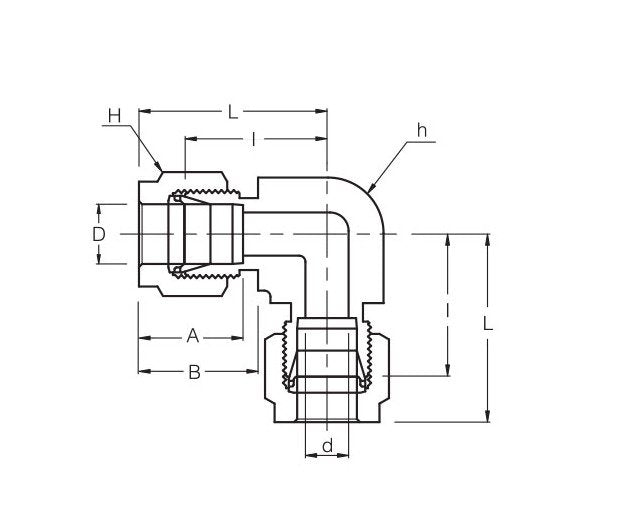

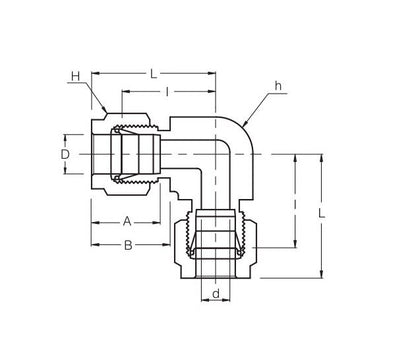

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
