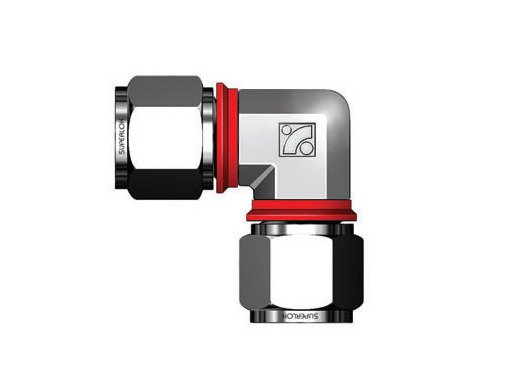

SUEI Series 8mm Union Elbow Connector
SUEI Series 8mm Union Elbow Connector
SKU:SUE-92ca8c
Reliable 8mm Union Elbow Connector for metric tubes, ensures perfect compression and safety in high-pressure environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SUEI Series 8mm Union Elbow Connector
$24.99
Quantity: 1
Claim Your Seller Account
SUEI Series 8mm Union Elbow Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUEI Series 8mm Union Elbow Connector is a reliable solution for connecting metric tubes. With a robust construction of Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, it offers exceptional durability. Featuring i-Fitting® components like body, front & back ferrule, and nut, it ensures perfect compression with the built-in check ring, enhancing safety in high-pressure environments. This industry-changing design boosts productivity, reduces costs, and is adaptable to diverse valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

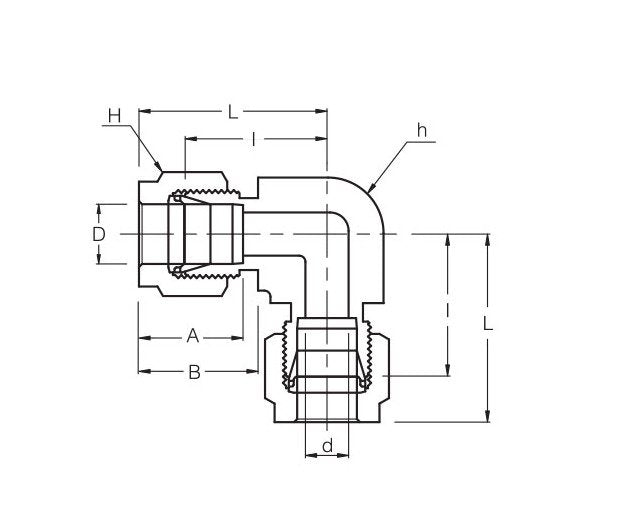

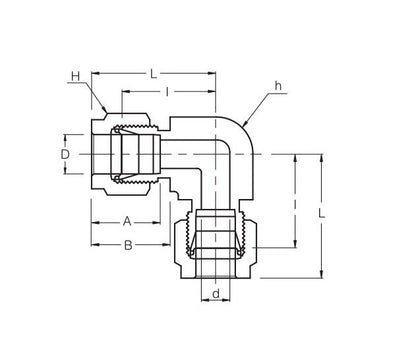

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
