SUI Series 10mm Tube Union Fitting

Name: SUI Series 10mm Tube Union Fitting
Brand: Superlok-Mako Products LLC
SKU: SUI-62eb6b
Price: 29.99 USD
Availability: OutOfStock

SKU:SUI-62eb6b

Premium 10mm Tube Union for secure metric tube connections. Enhances safety, productivity, and durability. Patented i-Fitting® technology for perfect compression.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SUI Series 10mm Tube Union is a precision-engineered component designed for reliable metric tube connections. Crafted from high-quality materials such as Alloy 625, 825, C-276, and more, this union ensures durability and longevity. Featuring innovative i-Fitting® technology, it includes a check ring for perfect compression, enhancing installer safety and productivity. Ideal for valve connections in high-pressure environments, this industry-leading design offers a patented solution for efficient and secure tube fittings.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

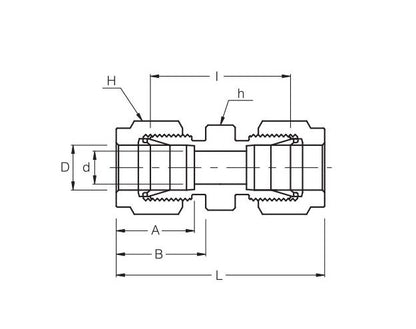

Technical Specs Dimension A

17.2 mm

Technical Specs Dimension B

19.5 mm

Technical Specs Dimension I

31.0 mm

Technical Specs Dimension L

46.2 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.9 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Tube Outside Diameter D

10 mm

Technical Specs Width Across Flat H

19 mm
