SUI Series 18mm Metric Tube Union

Name: SUI Series 18mm Metric Tube Union
Brand: Superlok-Mako Products LLC
SKU: SUI-b8db27
Price: 29.99 USD
Availability: OutOfStock

SKU:SUI-b8db27

High-quality 18mm Metric Tube Union with i-Fitting® components for safety and efficiency in industrial settings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SUI Series 18mm Metric Tube Union is a high-quality fitting designed to connect metric tubes seamlessly. Crafted from a variety of durable materials including Alloy 625, Stainless Steel, and more, this union ensures robustness and longevity. Its innovative i-Fitting® components, such as the built-in check ring for perfect compression, enhance safety, increase productivity, and reduce costs. Ideal for valve connections, this union is industry-changing with its patented design by BMT, making it a reliable choice for high-pressure and chemical environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

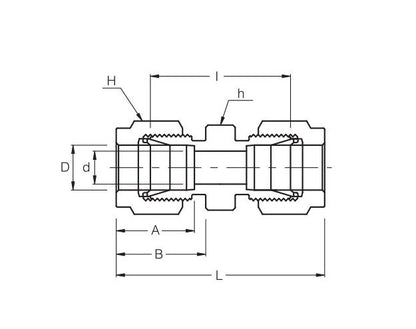

Technical Specs Dimension A

24.4 mm

Technical Specs Dimension B

22.0 mm

Technical Specs Dimension I

33.3 mm

Technical Specs Dimension L

53.5 mm

Technical Specs Material

Technical Specs Minimum Dimension D

15.1 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Tube Outside Diameter D

18 mm

Technical Specs Width Across Flat H

30 mm
