SUI Series 3/8 Tube Union Connector

Name: SUI Series 3/8 Tube Union Connector
Brand: Superlok-Mako Products LLC
SKU: SUI-bb100b
Price: 29.99 USD
Availability: OutOfStock

SKU:SUI-bb100b

Enhance safety & productivity with the SUI 3/8 Tube Union Connector. Perfect compression, reliable performance in industrial settings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SUI Series 3/8 Tube Union Connector is a vital component for connecting fractional tubes. With a durable construction using materials like Alloy 625, Stainless Steel, and more, this union ensures reliable performance in various applications. Its innovative i-Fitting® design with a built-in check ring enhances safety, productivity, and cost-efficiency by preventing over-tightening and ensuring perfect compression. Ideal for valve connections, this union meets stringent industry standards, offering a secure and efficient solution for high-pressure and hazardous chemical environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

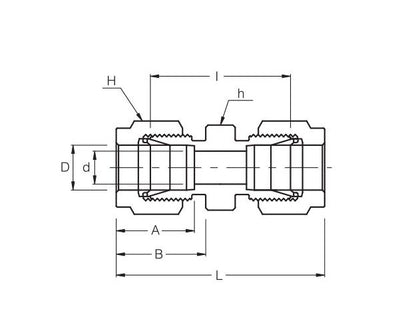

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension I

30.22 mm

Technical Specs Dimension L

44.95 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in

SUI Series 3/8 Tube Union Connector
