SUI Series 6mm Tube Union Connector
SUI Series 6mm Tube Union Connector
SKU:SUI-0fbf5a
Enhance tube connections with the innovative SUI Series 6mm Union Connector, ensuring precise fittings and improved safety in high-pressure environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUI Series 6mm Tube Union Connector
$39.99
Quantity: 1
Claim Your Seller Account
SUI Series 6mm Tube Union Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUI Series 6mm Tube Union Connector is designed for metric tube connections, offering precise fittings with dimensions meeting industry standards. Its i-Fitting® components ensure perfect compression, enhancing installer safety and productivity in high-pressure environments. This patented design minimizes over- and under-tightening issues, making it ideal for valve connections across various materials such as stainless steel, aluminum, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

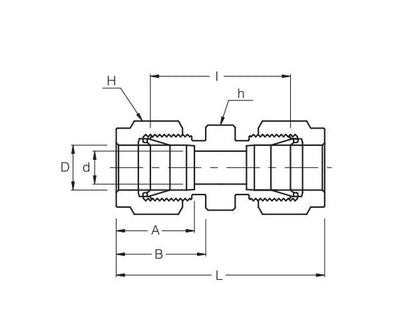

Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
26.2 mm
Technical Specs Dimension L
41.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
