SUI Series 8mm Tube Union Connector
SUI Series 8mm Tube Union Connector
SKU:SUI-bf9e26
Precision-engineered 8mm Tube Union Connector with i-Fitting® technology for safe, efficient metric tube connections.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SUI Series 8mm Tube Union Connector
$34.99
Quantity: 1
Claim Your Seller Account
SUI Series 8mm Tube Union Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUI Series 8mm Tube Union Connector is a precision-engineered fitting designed to connect metric tubes with outside diameters of 8mm. Made from high-quality materials such as Alloy 625, Stainless Steel, and more, it ensures durability and reliability for various industrial applications. Featuring i-Fitting® technology, it offers unmatched safety, efficiency, and productivity benefits. The built-in check ring enhances installation accuracy, eliminates over-tightening risks, and streamlines connections, making it ideal for high-pressure and hazardous environments. Industry-changing and patented, this union meets the highest standards of quality and performance in valve connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

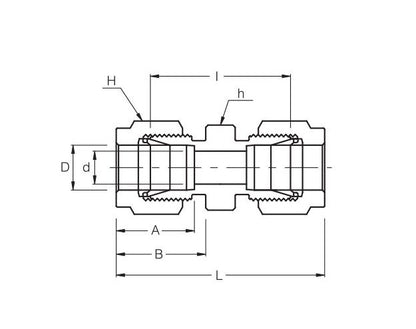

Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
28.2 mm
Technical Specs Dimension L
43.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
