Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor - 166 CFM, 125 PSI
Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor - 166 CFM, 125 PSI
SKU:SUL-fb30fc
Powerful Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor - 166 CFM, 125 PSI, Energy Efficient
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor - 166 CFM, 125 PSI
$8,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor - 166 CFM, 125 PSI
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

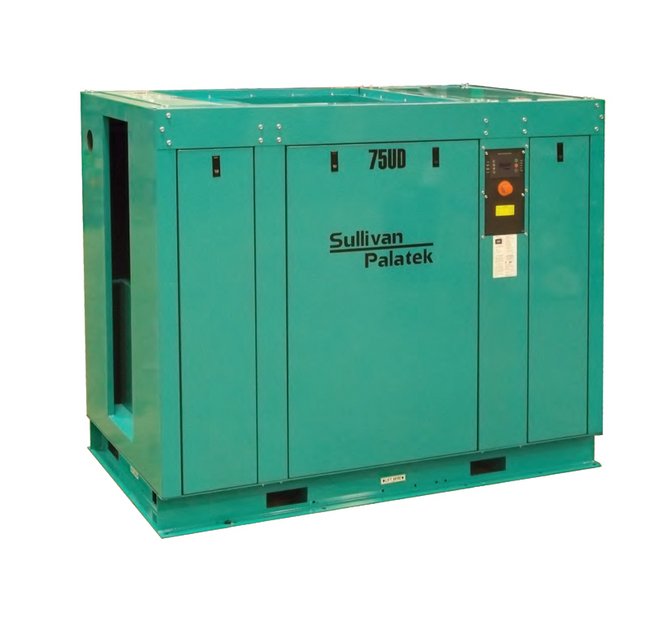

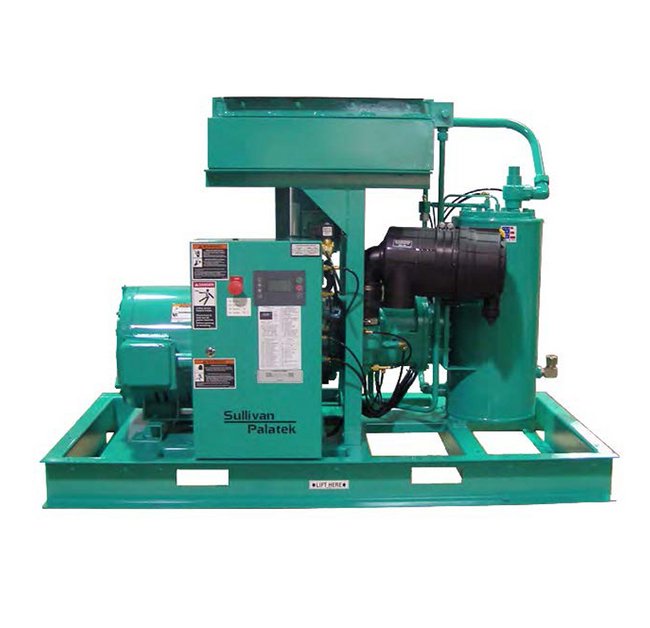

The Sullivan-Palatek® 40-100 UD Series Industrial Air Compressor delivers a flow capacity of 166 CFM at 125 PSI, ideal for heavy-duty industrial applications. With a powerful 40 HP motor and energy-efficient design, this compressor ensures reliable performance. It features a T1 Microprocessor for precise control, ASME-Coded Separator Tank for safety, and a Cooling System with aftercoolers for optimal functionality. Compliant with AEM, CAGI, and industry standards, this compressor is a dependable choice for government and institutional buyers seeking top-notch air compression solutions.
Product Specifications
Features 0
Energy Efficient
Note 0
The Ultimate Performance Rotary Screw Air Compressor.Description, Specifications and Pictures represented in this brochure may vary from actual equipment purchased.
Product Information Air Intake Filter Product Information
Heavy-duty dry type with easily replaceable elements.
Product Information Controls Product Information
0-100% modulation, solenoid controlled for smooth lowest possible no load power.
Product Information Cooling System Product Information
Cooling system with dedicated fan motor, large side by side lube cooler and aftercooler.

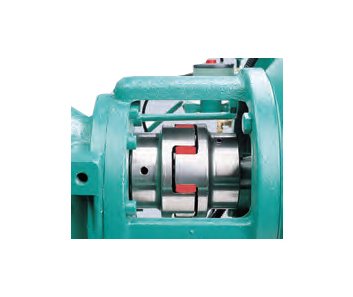

Product Information Coupling And Drive Product Information
Compressor is flange mounted to motor C-face for positive alignment and direct driven.
Product Information Electric Motor Product Information
460/575/3/60 standard (208/230/3/60 and 380/415/50 optional on most models).

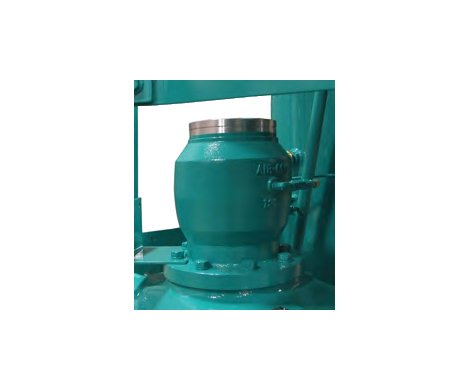

Product Information Inlet And Check Valve Product Information
One piece housing for dependable performance and complete modulation.

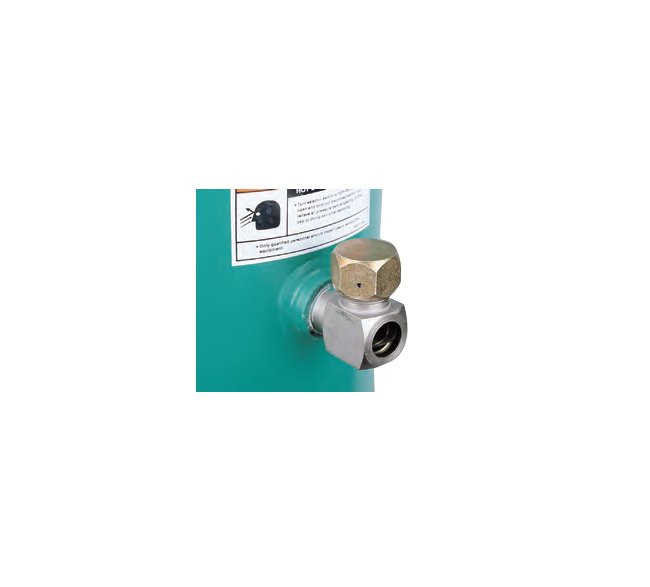

Product Information Lube Fill And Level Elbow Product Informatio
One piece fluid fill elbow and level indication sight glass.
Product Information Motor Starter Product Information
Full voltage magnetic starter with 120 volt controls, NEMA 1.
Product Information Protective Devices Product Information
Class 20 Solid State overload relay, anti reverse, high temperature and high pressure shutdown switch's (40-60 HP).

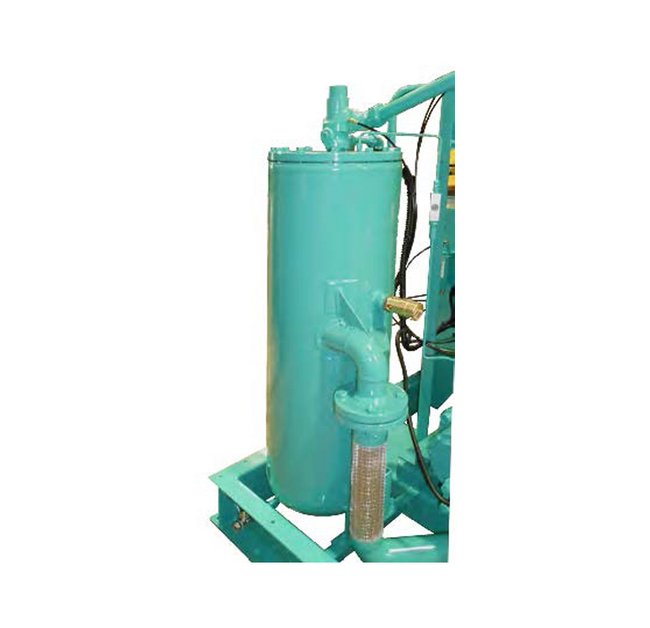

Product Information Separator Tank Product Information
ASME coded 200 PSIG tank, relief valve, minimum pressure/check valve.
Product Information T1 Microprocessor Product Information
Program daily schedule to suit plant requirements.
Specifications Brand
Sullivan-Palatek®
Specifications Compressed Air Accessories
Air Filters | Air System Analysis | Condensate Management Systems | Desiccant Air Dryers | Oil Free Systems | Refrigerated Air Dryers | System Management Solutions
Specifications Diesel Driven Portable Air Compressors
185 to 1800 cfm | 3 Year Air End Warranty | John Deere, Cat and Cummins Engines | Offshore Models | Utility Models
Specifications Discharge National Pipe Thread Npt
1.25 in
Specifications Electric Driven Industrial Air Compressors
125 to 300 hp SP20 | 15 to 40 hp Direct Drive | 300 to 400 hp SP32 | 40 to 100 hp updraft | 5 to 10 hp Belt Driven | High and Low Pressure | Specialty Packaged Systems | Variable Frequency Drive Designs
Specifications Fan Motor Power
1 hp
Specifications Flow Capacity At 125 Psi Rating
166 ft³/min
Specifications Flow Capacity At 150 Psi Rating
115 ft³/min
Specifications Flow Capacity At 175 Psi Rating
105 ft³/min
Specifications Height
48 in
Specifications High Pressure Portable And Skid
950-1150/350
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Instrument Quality Air
D375 to D1600
Specifications Length
66 in
Specifications Motor Power
40 hp
Specifications New Gas Powered Dual Fuel 185 Cfm Units
Construction Electric Rentals 50 to 450 hp | Electronic Parts Orders Through | Full Line of Pneumatic Tools | Hoses and Accessories | Skid Mount Aftercoolers | Skid Mount Dryers and Aftercoolers | SmartEquip™
Specifications Piston Air Compressors
Gas Driven | Pressure Lube | Splash Lube
Specifications Series
40 to 100 UD
Specifications Sump Capacity
3.5 gal
Specifications Weight
1050 lb
Specifications Weight Per Enclosed
1350 lb
Specifications Width
34 in
Standard Features Air Intake Filter Standard Features
Easy access replaceable element(s) | Heavy-duty dry-type

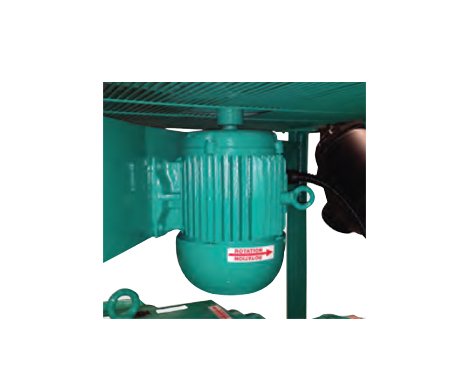

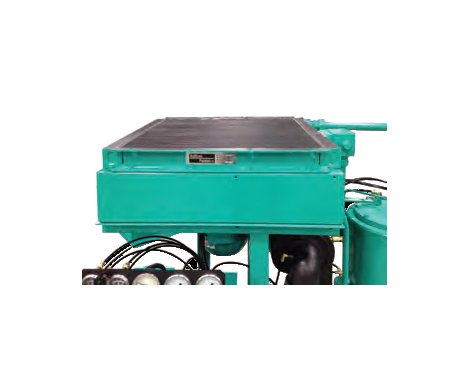

Standard Features Cooling System Standard Features
Dedicated fan motor | Easy cleaning | Side by side lube cooler and air cooled aftercooler | Updraft design allows hot air to be recovered or exhausted thru top of the machine
Standard Features Electric Motor Standard Features
208/230/460/575 (380/415/50) volt | NEMA T-frame with C-face Flange | Open drip proof squirrel cage induction type | Optional TEFC available on all models | Premium efficient design

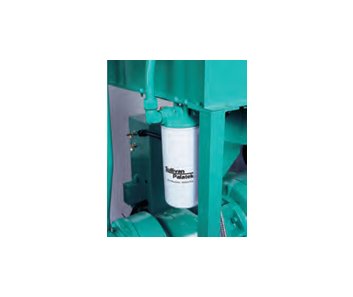

Standard Features Fluid Filter Standard Features
Spin-on type element strategically located for ease of maintenance
Standard Features Inlet And Check Valve Standard Features
Complete range of modulated inlet control 0-100% | One piece housing for dependable performance
