Sullivan-Palatek® D Series 20 HP Rotary Screw Air Compressor
$5,799.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® D Series 20 HP Rotary Screw Air Compressor
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

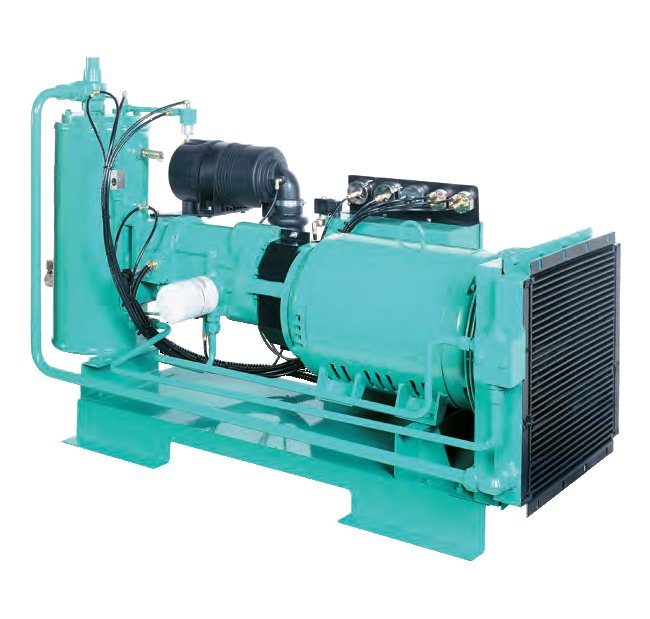

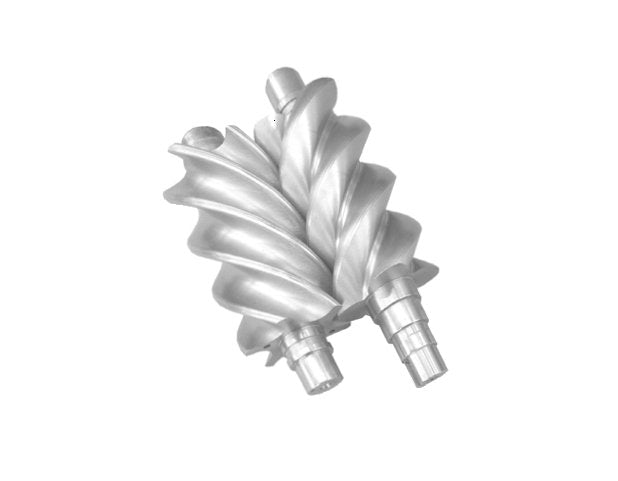

The Sullivan-Palatek® D Series 20 HP Rotary Screw Air Compressor is a reliable industrial-grade compressor featuring a high-performance air end with oversize radial thrust bearings for durability. With advanced rotor design and precision rotary screws, it runs cool with minimal wear, prolonging the life of circulating fluid. Key features include electric motor with energy efficiency, ASME safety relief valve, and optional warranties for added protection and peace of mind. Ideal for institutions and government buyers seeking a low maintenance, high-quality air compressor.
Product Specifications

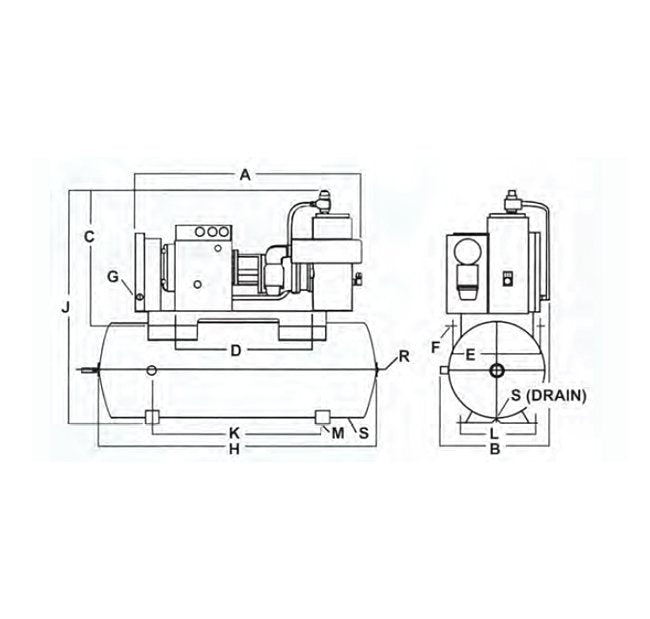

Base Mounted Base Mounted Diameter For Dimension A
56 in
Base Mounted Base Mounted Diameter For Dimension B
29 in
Base Mounted Base Mounted Diameter For Dimension C
38 in
Base Mounted Base Mounted Diameter For Dimension D
40 in
Base Mounted Base Mounted Diameter For Dimension E
21.38 in
Base Mounted Base Mounted Diameter For Dimension F
0.75 in
Base Mounted Base Mounted Diameter For Dimension G
1 in
Base Mounted Base Mounted Diameter For Dimension H
69 in
Base Mounted Base Mounted Diameter For Dimension J
63 in
Base Mounted Base Mounted Diameter For Dimension K
42 in
Base Mounted Base Mounted Diameter For Dimension L
18.5 in
Base Mounted Base Mounted Diameter For Dimension M
0.9 in
Base Mounted Base Mounted Diameter For Dimension R
2 in
Base Mounted Base Mounted Diameter For Dimension S
0.5 in
Base Mounted Base Mounted Port Connection For Dimension G
National Pipe Thread (NPT)
Base Mounted Base Mounted Port Connection For Dimension R
National Pipe Thread (NPT)
Base Mounted Base Mounted Port Connection For Dimension S
National Pipe Thread (NPT)
Base Mounted Base Mounted Weight
625 lb
Base Mounted Motor Power
20 hp
Base Mounted Note For Crated Dimensions A B C H J And K
Crated Dimensions, L-84", W-45", H-60" (Tank Mounted 74").
Base Mounted Sump Capacity
3 gal
Base Mounted Tank Diameter
24 in
Base Mounted Tank Mounted Capacity
120 gal
Base Mounted Weight
950 lb
Features 0

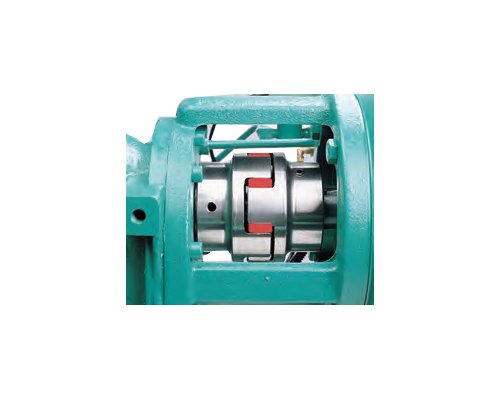

Electric Motor 208, 230, 460, 575 VoltsMotor Starter - 208/230/460/575 Volt (15-25 HP) 460/575 Volt (30-40 HP)Protective DevicesOil Level Sight GlassASME Coded 200 PSI Separator/Sump TankDirect Drive CouplingQuality InstrumentationAll New Platinum and Platinum-Plus Warranties available.Energy Efficient
Note 0

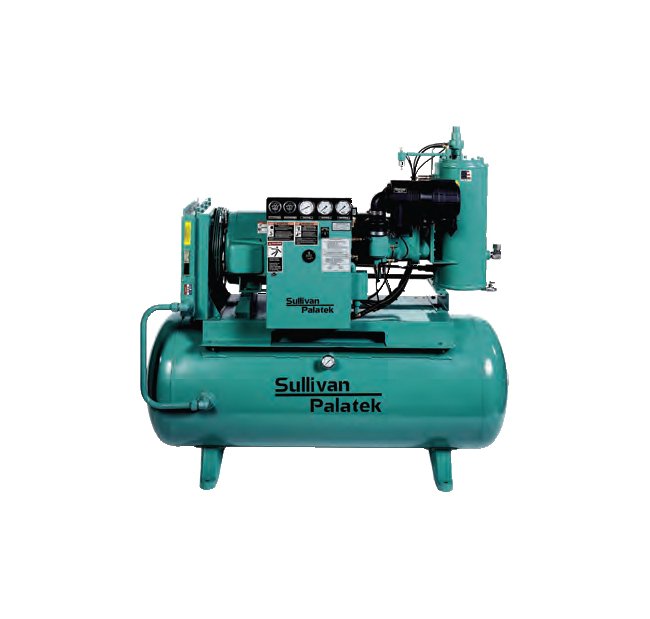

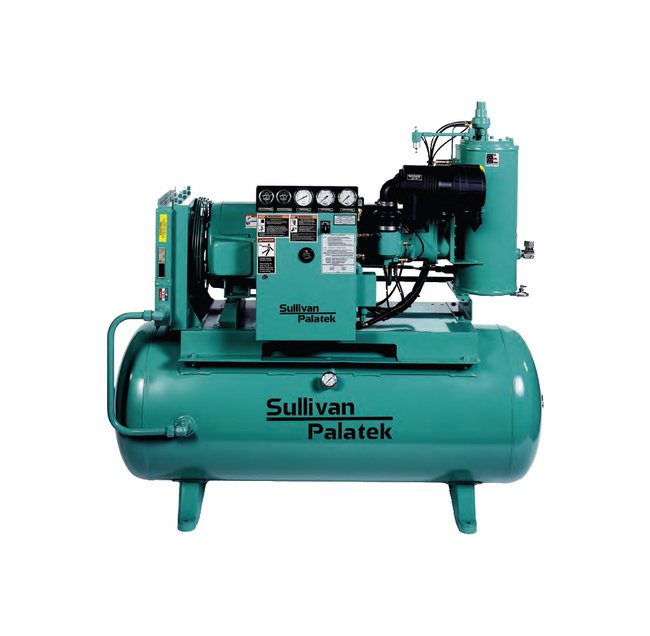

Water cooled option available.The ultimate performance rotary screw air compressor.Shown with optional tank mount.
Specifications Brand
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Compressed Air Accessories
Air Filters | Air System Analysis | Condensate Management Systems | Desiccant Air Dryers | Oil Free Systems | Refrigerated Air Dryers | System Management Solutions
Specifications Diesel Driven Portable Air Compressors
185 to 1800 cfm | 3 Year Air End Warranty | John Deere, Cat and Cummins Engines | Offshore Models | Utility Models
Specifications Electric Driven Industrial Air Compressors
15 to 40 hp Direct Drive | 40 to 100 hp Up-Draft | 5 to 10 hp Belt Driven | High and Low Pressure | Specialty Packaged Systems | Variable Frequency Drive Designs
Specifications Flow Capacity At 125 Psi Rating
80 ft³/min
Specifications Flow Capacity At 150 Psi Rating
78 ft³/min
Specifications Flow Capacity At 175 Psi Rating
53 ft³/min
Specifications High Pressure Portable And Skid
900/350 to 1150/350
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Instrument Quality Air
375H to 1600H | Construction Electric 50 to 400 HP | Electronic Parts Orders Through | Full Line of Pneumatic Tools | Hoses and Accessories | Skid Mount Aftercoolers | Skid Mount Dryers and Aftercoolers | SmartEquip™
Specifications Piston Air Compressors
Gas Driven | Pressure Lube | Splash Lube
Specifications Series
D

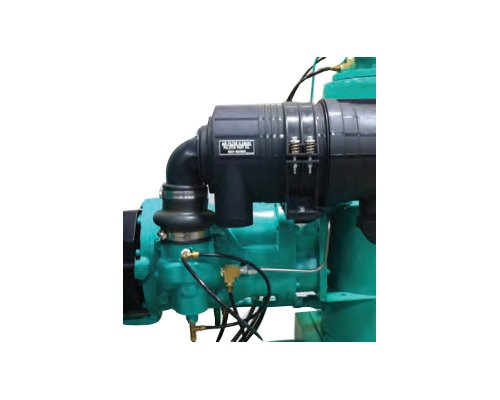

Standard Features Air Intake Filter
Oversized dry type. Primary and secondary element. Easily replaced

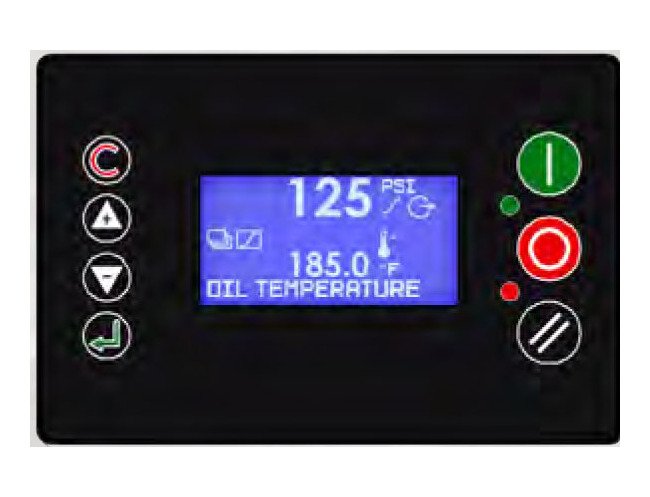

Standard Features Controls
Full modulation, solenoid controlled for smooth transition to lowest possible no load power. Automatic start/stop or constant speed selector switch. Timed dual control.
