Sullivan-Palatek® D Series 30 HP Industrial Air Compressor
Sullivan-Palatek® D Series 30 HP Industrial Air Compressor
SKU:SUL-f18285
Reliable and efficient Sullivan-Palatek® D Series 30 HP Industrial Air Compressor for superior performance in industrial settings.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® D Series 30 HP Industrial Air Compressor
$7,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® D Series 30 HP Industrial Air Compressor
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

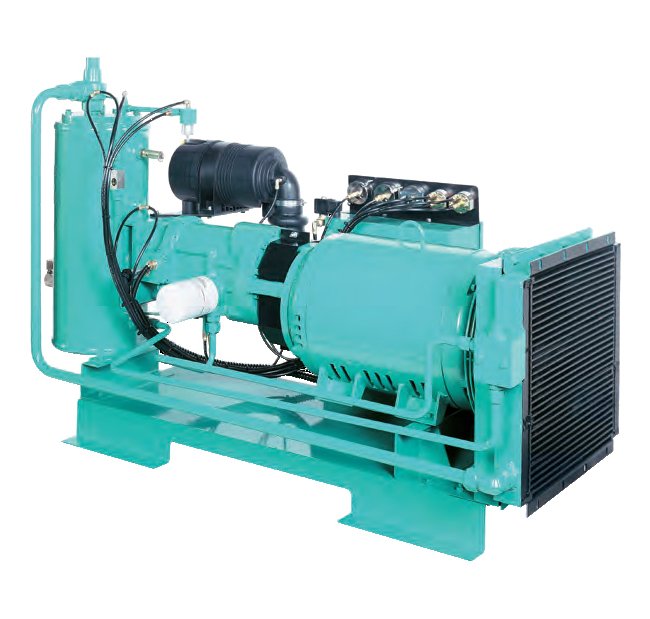

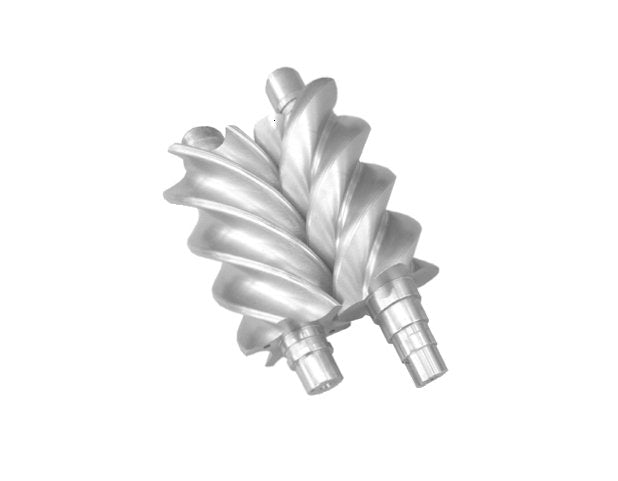

The Sullivan-Palatek® D Series 30 HP Industrial Air Compressor offers unparalleled reliability and performance. With a durable design featuring oversize radial thrust bearings and precision rotary screws, this compressor ensures minimal wear, reduced friction, and extended fluid life. It includes key features such as electric motor with energy efficiency, ASME safety relief valve, and optional warranties for added peace of mind. Ideal for industrial applications requiring high-quality compressed air, this compressor is a top choice for efficiency and longevity.
Product Specifications

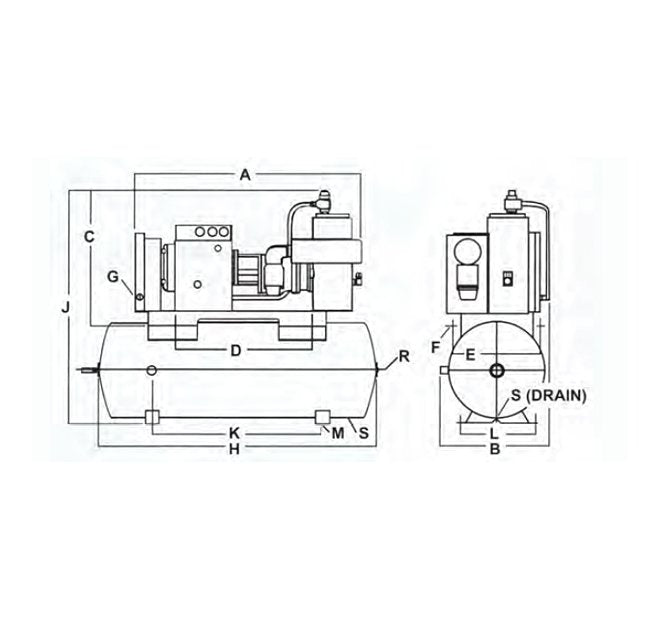

Base Mounted Base Mounted Diameter For Dimension A
58 in
Base Mounted Base Mounted Diameter For Dimension B
30 in
Base Mounted Base Mounted Diameter For Dimension C
35 in
Base Mounted Base Mounted Diameter For Dimension D
40 in
Base Mounted Base Mounted Diameter For Dimension E
21.38 in
Base Mounted Base Mounted Diameter For Dimension F
0.75 in
Base Mounted Base Mounted Diameter For Dimension G
1 in
Base Mounted Base Mounted Diameter For Dimension H
72 in
Base Mounted Base Mounted Diameter For Dimension J
68 in
Base Mounted Base Mounted Diameter For Dimension K
42 in
Base Mounted Base Mounted Diameter For Dimension L
24 in
Base Mounted Base Mounted Diameter For Dimension M
0.9 in
Base Mounted Base Mounted Diameter For Dimension R
2 in
Base Mounted Base Mounted Diameter For Dimension S
0.5 in
Base Mounted Base Mounted Port Connection For Dimension G
National Pipe Thread (NPT)
Base Mounted Base Mounted Port Connection For Dimension R
National Pipe Thread (NPT)
Base Mounted Base Mounted Port Connection For Dimension S
National Pipe Thread (NPT)
Base Mounted Base Mounted Weight
770 lb
Base Mounted Motor Power
30 hp
Base Mounted Note For Crated Dimensions A B C H J And K
Crated Dimensions, L-84", W-45", H-60" (Tank Mounted 74").
Base Mounted Sump Capacity
3 gal
Base Mounted Tank Diameter
30 in
Base Mounted Tank Mounted Capacity
120 gal
Base Mounted Weight
1095 lb
Features 0

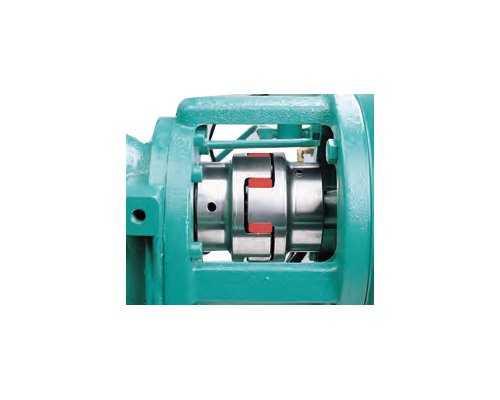

Electric Motor 208, 230, 460, 575 VoltsMotor Starter - 208/230/460/575 Volt (15-25 HP) 460/575 Volt (30-40 HP)Protective DevicesOil Level Sight GlassASME Coded 200 PSI Separator/Sump TankDirect Drive CouplingQuality InstrumentationAll New Platinum and Platinum-Plus Warranties available.Energy Efficient
Note 0

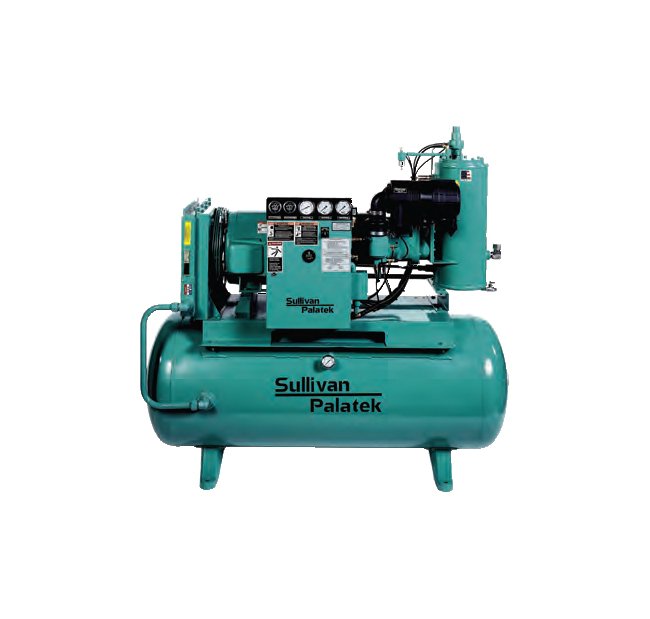

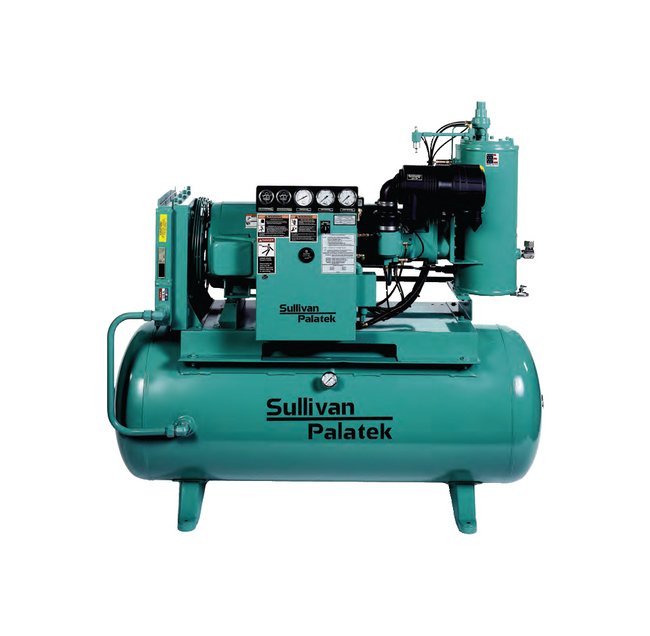

Water cooled option available.The ultimate performance rotary screw air compressor.Shown with optional tank mount.
Specifications Brand
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Compressed Air Accessories
Air Filters | Air System Analysis | Condensate Management Systems | Desiccant Air Dryers | Oil Free Systems | Refrigerated Air Dryers | System Management Solutions
Specifications Diesel Driven Portable Air Compressors
185 to 1800 cfm | 3 Year Air End Warranty | John Deere, Cat and Cummins Engines | Offshore Models | Utility Models
Specifications Electric Driven Industrial Air Compressors
15 to 40 hp Direct Drive | 40 to 100 hp Up-Draft | 5 to 10 hp Belt Driven | High and Low Pressure | Specialty Packaged Systems | Variable Frequency Drive Designs
Specifications Flow Capacity At 125 Psi Rating
115 ft³/min
Specifications Flow Capacity At 150 Psi Rating
110 ft³/min
Specifications Flow Capacity At 175 Psi Rating
105 ft³/min
Specifications High Pressure Portable And Skid
900/350 to 1150/350
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Instrument Quality Air
375H to 1600H | Construction Electric 50 to 400 HP | Electronic Parts Orders Through | Full Line of Pneumatic Tools | Hoses and Accessories | Skid Mount Aftercoolers | Skid Mount Dryers and Aftercoolers | SmartEquip™
Specifications Piston Air Compressors
Gas Driven | Pressure Lube | Splash Lube
Specifications Series
D

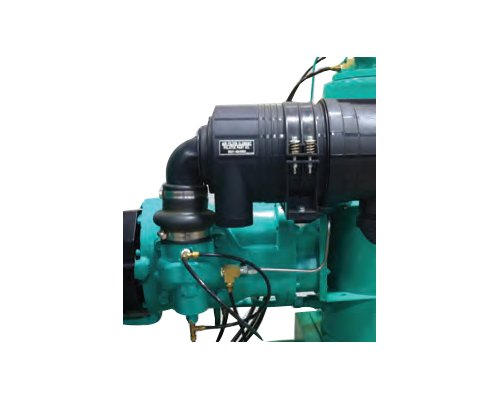

Standard Features Air Intake Filter
Oversized dry type. Primary and secondary element. Easily replaced

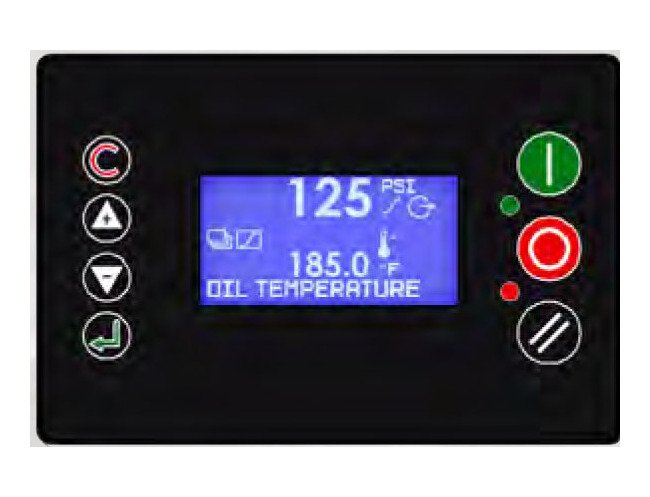

Standard Features Controls
Full modulation, solenoid controlled for smooth transition to lowest possible no load power. Automatic start/stop or constant speed selector switch. Timed dual control.
