Sullivan-Palatek® DG Series 25HP Direct Gear Drive Industrial Air Compressor
Sullivan-Palatek® DG Series 25HP Direct Gear Drive Industrial Air Compressor
SKU:SUL-78974c
Get reliable and efficient compressed air with the Sullivan-Palatek® 25HP Industrial Air Compressor. Trusted performance with 5-year warranty.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® DG Series 25HP Direct Gear Drive Industrial Air Compressor
$8,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® DG Series 25HP Direct Gear Drive Industrial Air Compressor
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

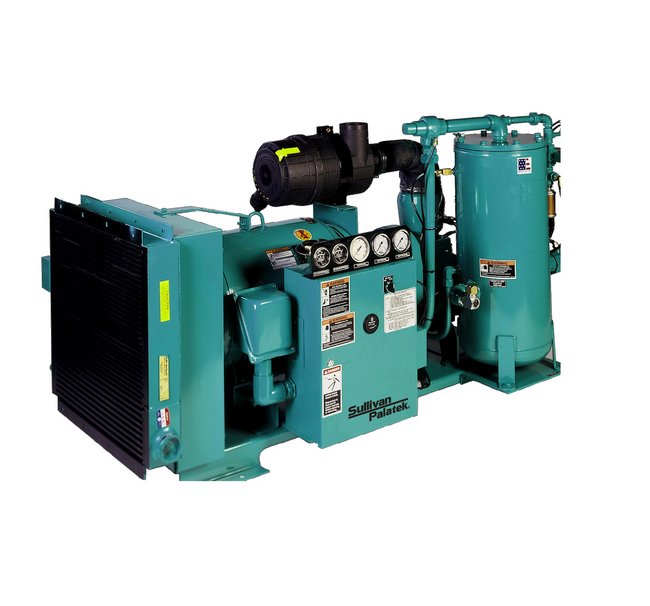

The Sullivan-Palatek® DG Series 25HP Direct Gear Drive Industrial Air Compressor offers exceptional reliability and performance for continuous duty applications. This fluid flooded rotary screw compressor is direct-coupled to a 25HP motor for precise alignment. With a tank capacity of 120, 200, or 240 gallons, this compressor ensures a steady flow capacity of 105 ft³/min. Designed to meet AEM, CAGI, and I Make America standards, it comes with a 5-year platinum warranty with optional 10-year coverage. Perfect for industrial and government facilities requiring top-tier compressed air solutions.
Product Specifications
Compressor Data Air Discharge
1 in
Compressor Data Drive Motor Power
25 hp
Compressor Data Flow Capacity
105 ft³/min
Compressor Data Height C
37 in
Compressor Data Length A
64 in
Compressor Data Motor Speed
1750 rpm
Compressor Data Weight
950 lb

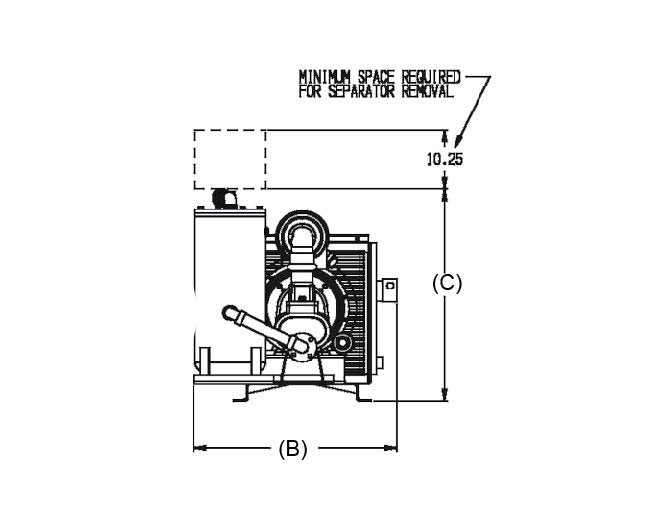

Compressor Data Width B
33 in
Compressor Options 0
Air filter pop-up indicatorAuto restartBase load transfer 2 or 3 machinesCDD - Intergrated Desiccant Dryer SystemCRP - Condensate Management PackageEnclosureHATD Shutdown switchMicroprocessorMotor option TEFCPercent capacity gaugePlatform mounted (25-30-40 HP)Receiver 240 or 400 gallon verticalSeparator trapStarter options: NEMA-4, Wye - Delta, Solid State, or VFDTank mount 120, 200, 240 gallonWater cooled
Cooling Data Air Cooled Oil Sump Fluid Capacity
6 gal
Note 0
Rated capacity in ACFM is based on standard conditions at 125 psig. Capacity will vary with ambient conditions; i.e. temperature and barometric pressure, and compressor output pressure.Description, Specifications and Pictures represented in this literature may vary from actual equipment purchased.Call for complete information regarding all features and options.
Product Information Air Intake Filter
Corrosion resistant housing.Oversize multi-stage dry type with replaceable element.
Product Information Controls
Auto dual control, full modulation, timed stop or constant run standard.Analog controlled for smooth operation and lowest possible no load power.Optional microprocessor.
Product Information Cooling System
Air-cooled with air/oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.5 year platinum warranty available.
Product Information Coupling And Drive
Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.5 year platinum warranty available.
Product Information Electric Motor
NEMA T-Frame, C-Face, double shaft, open drip proof squirrel cage induction type.5 year platinum warranty available.
Product Information Electric Motor Power Frequency
60 Hz
Product Information Electric Motor Power Voltage
200 V | 230 V | 460 V | 575 V
Product Information Electric Motor Power Voltage At 50 Cycle
380 V

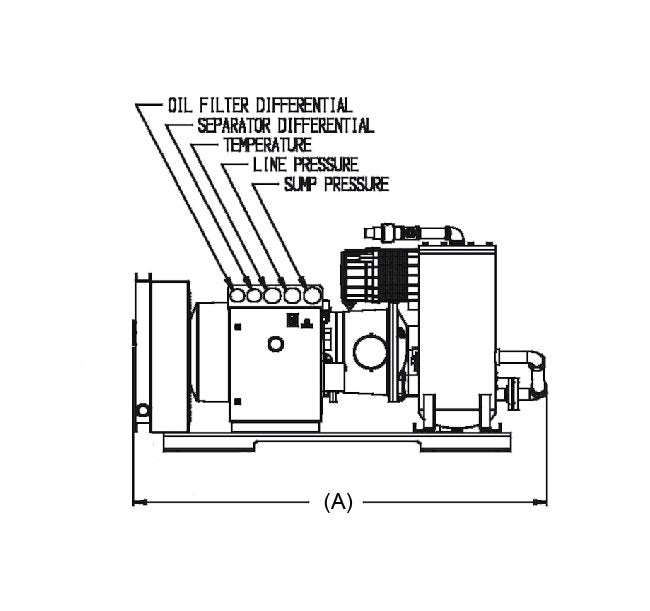

Product Information Instrumentation
Line pressure gauge, fluid reservoir sight glass, hour meter, discharge temperature gauge, fluid filter and separator element differential gauges.
Product Information Lubrication
Factory filled with 4000 hour Palasyn 45.Equipped with microfiber full flow, spin on oil filter.
Product Information Motor Starter
Full voltage magnetic starter with 115 volt controls, NEMA 1 enclosure, circuit breaker, transformer and three-phase over load protector.

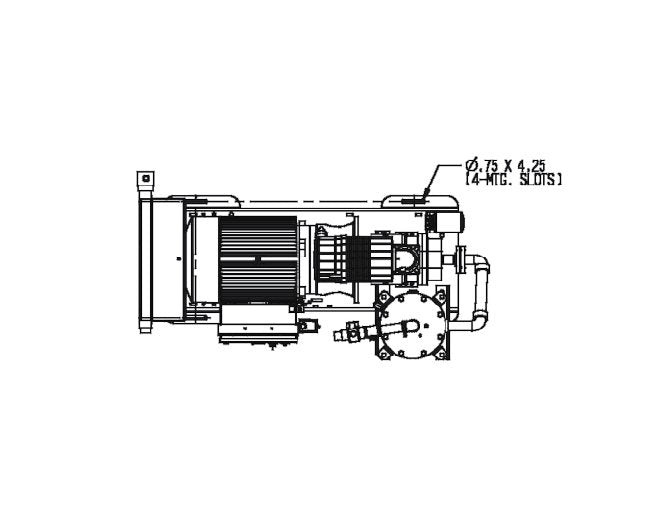

Product Information Mounting
Base mounted, no special foundation required.Optional tank and platform mounting available.
Product Information Phase
3
Product Information Protective Devices
Class 20 overload relay, high temperature and overpressure shutdown.
Specifications Brand
Sullivan-Palatek®
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Series
DG

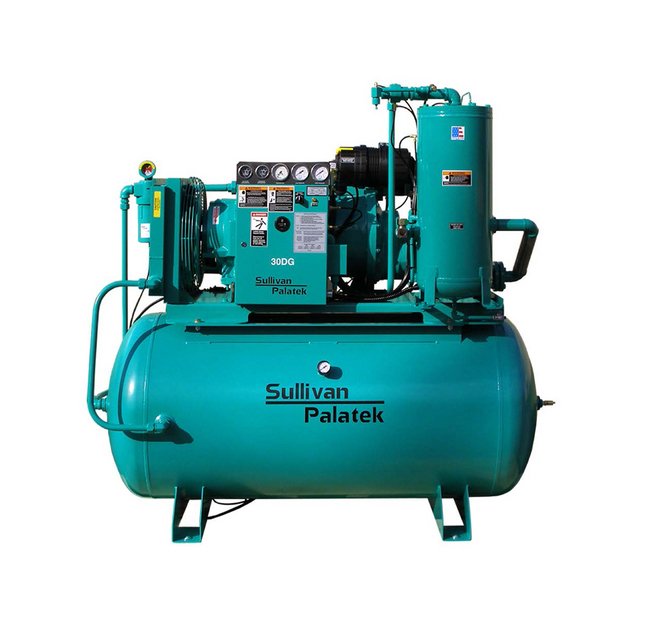

Specifications Tank Capacity
120 gal | 200 gal | 240 gal
