Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor
Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor
SKU:SUL-ace999
Powerful Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor for reliable and efficient compressed air needs.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor
$8,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

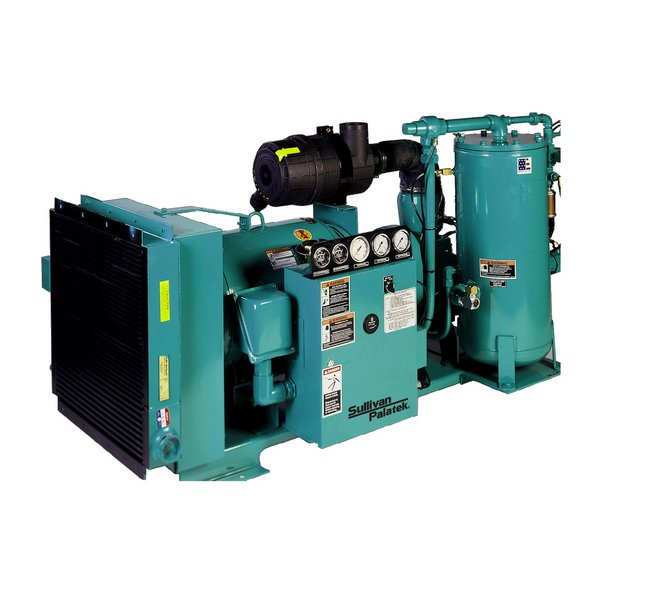

The Sullivan-Palatek® DG Series 50 HP Industrial Air Compressor offers superior performance with a fluid-flooded rotary screw design. Directly coupled to a 50 HP motor, it ensures precise alignment for continuous duty operation. This compressor comes with a 5-year platinum warranty and options for a 10-year platinum plus warranty, delivering reliability and peace of mind to industrial users.
Product Specifications
Compressor Data Air Discharge
2 in
Compressor Data Drive Motor Power
50 hp
Compressor Data Flow Capacity
225 ft³/min

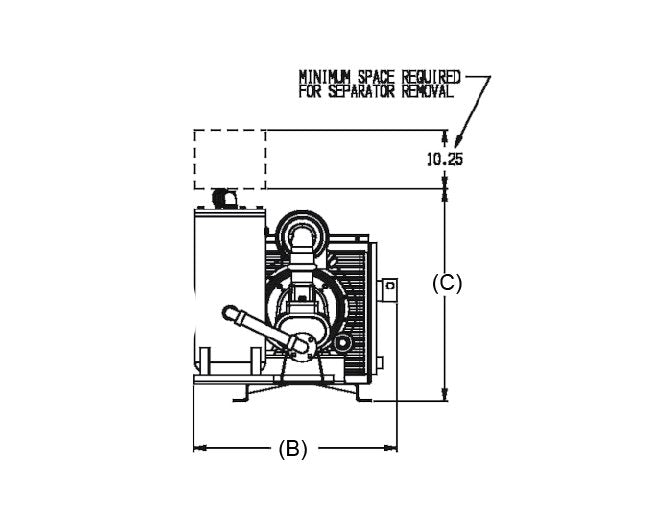

Compressor Data Height C
43 in

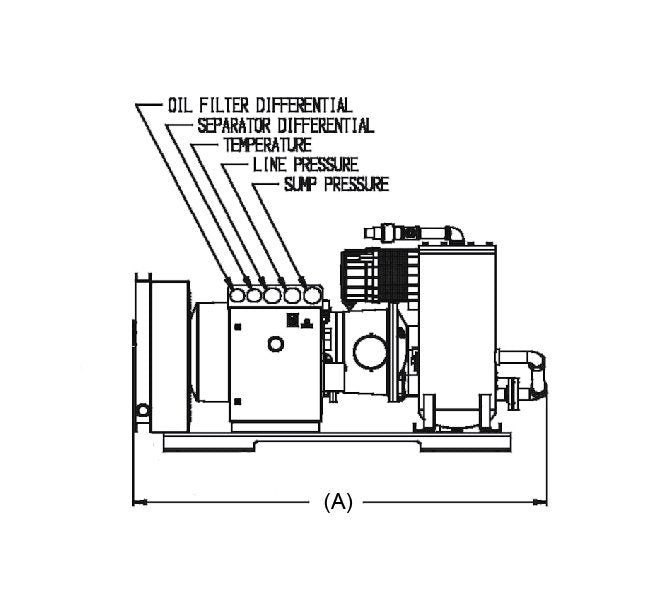

Compressor Data Length A
65 in
Compressor Data Motor Speed
1750 rpm
Compressor Data Weight
1320 lb
Compressor Data Width B
34 in
Compressor Options 0
Air filter pop-up indicatorAuto restartBase load transfer 2 or 3 machinesCDD - Intergrated Desiccant Dryer SystemCRP - Condensate Management PackageEnclosureHATD Shutdown switchMicroprocessorMotor option TEFCPercent capacity gaugePlatform mounted (25-30-40 HP)Receiver 240 or 400 gallon verticalSeparator trapStarter options: NEMA-4, Wye - Delta, Solid State, or VFDTank mount 120, 200, 240 gallonWater cooled
Cooling Data Air Cooled Oil Sump Fluid Capacity
6 gal
Note 0
Rated capacity in ACFM is based on standard conditions at 125 psig. Capacity will vary with ambient conditions; i.e. temperature and barometric pressure, and compressor output pressure.Description, Specifications and Pictures represented in this literature may vary from actual equipment purchased.Call for complete information regarding all features and options.
Product Information Air Intake Filter
Corrosion resistant housing.Oversize multi-stage dry type with replaceable element.
Product Information Controls
Auto dual control, full modulation, timed stop or constant run standard.Analog controlled for smooth operation and lowest possible no load power.Optional microprocessor.
Product Information Cooling System
Air-cooled with air/oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.5 year platinum warranty available.
Product Information Coupling And Drive
Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.5 year platinum warranty available.
Product Information Electric Motor
NEMA T-Frame, C-Face, double shaft, open drip proof squirrel cage induction type.5 year platinum warranty available.
Product Information Electric Motor Power Frequency
60 Hz
Product Information Electric Motor Power Voltage
200 V | 230 V | 460 V | 575 V
Product Information Electric Motor Power Voltage At 50 Cycle
380 V
Product Information Instrumentation
Line pressure gauge, fluid reservoir sight glass, hour meter, discharge temperature gauge, fluid filter and separator element differential gauges.
Product Information Lubrication
Factory filled with 4000 hour Palasyn 45.Equipped with microfiber full flow, spin on oil filter.
Product Information Motor Starter
Full voltage magnetic starter with 115 volt controls, NEMA 1 enclosure, circuit breaker, transformer and three-phase over load protector.

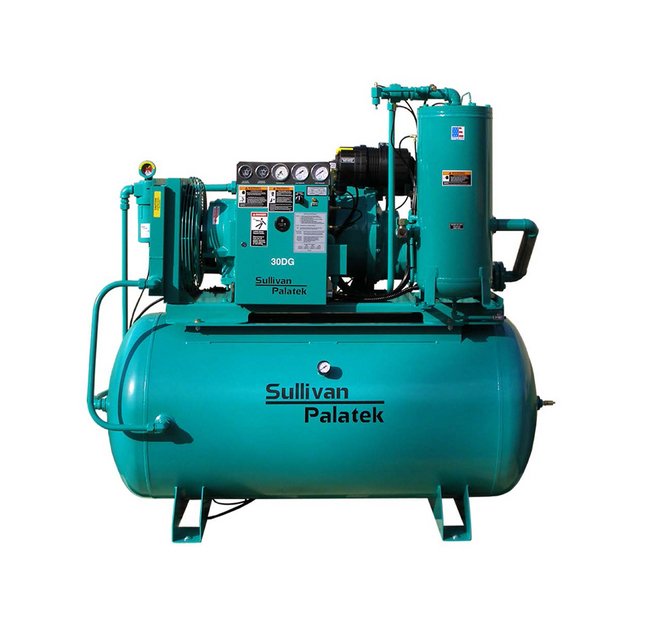

Product Information Mounting
Base mounted, no special foundation required.Optional tank and platform mounting available.
Product Information Phase
3
Product Information Protective Devices
Class 20 overload relay, high temperature and overpressure shutdown.
Specifications Brand
Sullivan-Palatek®
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Series
DG
Specifications Tank Capacity
120 gal | 200 gal | 240 gal
