Sullivan-Palatek® SP20 Series 200 HP Industrial Air Compressor
Sullivan-Palatek® SP20 Series 200 HP Industrial Air Compressor
SKU:SUL-1be118
High-performance 200HP rotary screw air compressor with energy-efficient design and advanced controls. Meets industry standards for reliable operation.
Regular price
$17,999.99
Regular price
Sale price
$17,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® SP20 Series 200 HP Industrial Air Compressor
$17,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® SP20 Series 200 HP Industrial Air Compressor
$17,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

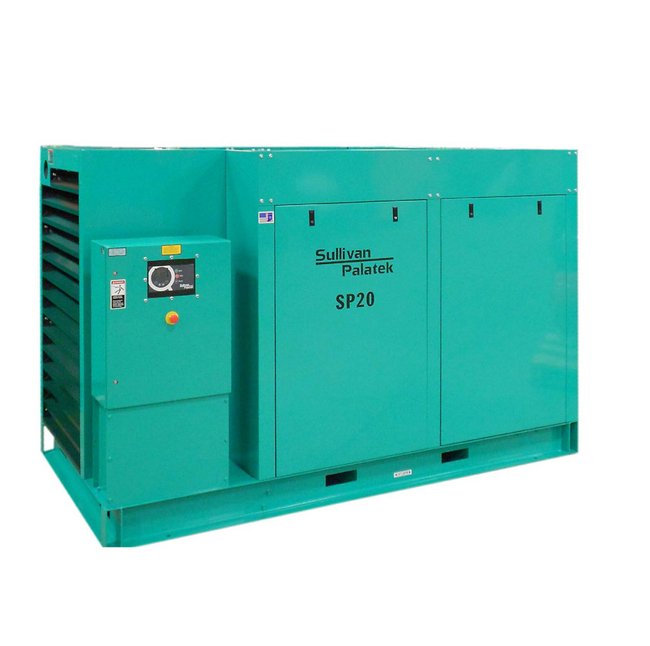

The Sullivan-Palatek® SP20 Series 200 HP Industrial Air Compressor is a high-performance rotary screw compressor designed for energy efficiency and ultimate performance. With a Flow Capacity ranging from 490 to 980 ft³/min at different psi ratings, this compressor's industrial-grade features include a powerful motor, ASME-coded separator tank, large cooling system, and advanced controls for optimal operation. Meeting AEM Member, CAGI, and I Make America standards, this compressor ensures reliable and efficient compressed air supply for various industrial applications.
Product Specifications
Features 0
Energy Efficient
Note 0
The ultimate performance rotary screw air compressor.Due to continual improvements in our products, specifications are subject to change without notice.
Product Information Air Intake Filter
Oversize dry type with easily replaceable elements.
Product Information Controls
S-P microprocessor controller with sequencer, lead lag and remote monitoring for up to 8 machines.
Product Information Cooling System
Large side by side lube and air-cooled aftercooler.
Product Information Coupling And Drive
Compressor is flange mounted to motor C-face for positive alignment and direct driven.
Product Information Electric Motor
460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on most models).
Product Information Inlet And Check Valve
One piece housing for dependable performance. Modulation - 0 to 100%.
Product Information Lube Fill And Level Elbow
One piece fluid fill elbow and level indication sight glass.
Product Information Motor Starter
460 volt, FVM with 115 volt control, NEMA 1.
Product Information Optional Controls
Deluxe gauge panel.
Product Information Optional Motor Starter
NEMA 4, Wye Delta, Solid State Available.
Product Information Optional Separator Tank
300 psi available for 250 psi working pressure applications.
Product Information Optional Variable Frequency Drive Vfd
NEMA 4 | NEMA 12
Product Information Separator Tank
ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
Product Information Standard Variable Frequency Drive Vfd
460 volt, NEMA 1.
Specifications Brand
Sullivan-Palatek®
Specifications Discharge National Pipe Thread Npt
3 in
Specifications Fan Motor Power
5 hp
Specifications Flow Capacity At 100 Psi Rating
980 ft³/min
Specifications Flow Capacity At 125 Psi Rating
900 ft³/min
Specifications Flow Capacity At 150 Psi Rating
810 ft³/min
Specifications Flow Capacity At 175 Psi Rating
770 ft³/min
Specifications Flow Capacity At 200 Psi Rating
730 ft³/min
Specifications Flow Capacity At 250 Psi Rating
490 ft³/min
Specifications Height
72 in
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Length
113 in
Specifications Motor Power
200 hp
Specifications Series
SP20
Specifications Sump Capacity
25 gal
Specifications Weight
6275 lb
Specifications Weight Per Enclosed
6925 lb
Specifications Width
58 in
