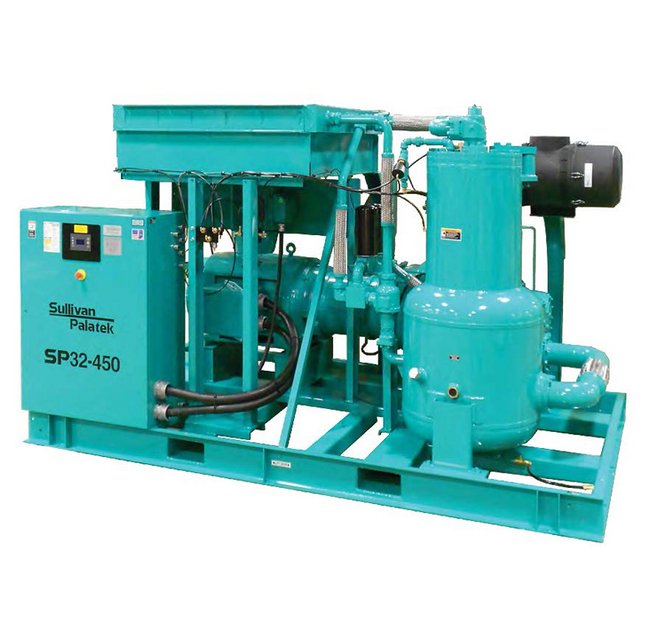

Sullivan-Palatek® SP32 Series Industrial Air Compressor - 1650 ft³/min @ 100 psi
Sullivan-Palatek® SP32 Series Industrial Air Compressor - 1650 ft³/min @ 100 psi
SKU:SUL-bdb2f1
Enhance industrial productivity with the Sullivan-Palatek® SP32 Series Air Compressor - 1650 ft³/min @ 100 psi.
Regular price
$29,999.99
Regular price
Sale price
$29,999.99
Unit price
per
Initiate Order
Sullivan-Palatek® SP32 Series Industrial Air Compressor - 1650 ft³/min @ 100 psi
$29,999.99
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek® SP32 Series Industrial Air Compressor - 1650 ft³/min @ 100 psi
$29,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sullivan-Palatek® SP32 Series Industrial Air Compressor delivers superior performance with a flow capacity of 1650 cubic feet per minute at 100 psi. Equipped with a powerful 350 hp motor and energy-efficient features, this compressor ensures reliable operation in industrial settings. Its innovative design includes a robust cooling system, modulation controls for optimized power usage, and a microprocessor controller for seamless monitoring. Meeting AEM Member, CAGI, and I Make America standards, this compressor is a testament to quality and efficiency in compressed air technology.
Product Specifications
Features 0
Energy Efficient
Note 0
The ultimate performance rotary screw air compressor.Due to continual improvements in our products, specifications are subject to change without notice.
Product Information Air Intake Filter
Oversize dry type with easily replaceable elements.
Product Information Controls
S-P microprocessor controller with sequencer, lead lag and remote monitoring for up to 8 machines.
Product Information Cooling System
Cooling system, large side by side lube and air-cooled aftercooler.
Product Information Coupling And Drive
Compressor is flange mounted to motor C-face for positive alignment and direct driven.
Product Information Electric Motor
460/575/3/60 standard, 50 cycle 380/415.
Product Information Electric Motor Power Voltage
460 V | 575 V
Product Information Electric Motor Power Voltage At 50 Cycle
60 V
Product Information Inlet And Check Valve
One piece housing for dependable performance. Modulation - 0 to 100%.
Product Information Lube Fill And Level Elbow
One piece fluid fill elbow and level indication sight glass.
Product Information Modulation Controls
Full modulation, solenoid controlled for smooth lowest possible no load power.
Product Information Motor Starter
460 volt, Solid State with 115 volt control, NEMA 1.
Product Information Optional Controls
Deluxe gauge panel.
Product Information Optional Motor Starter
NEMA 4, Wye Delta Available.
Product Information Optional Variable Frequency Drive Vfd
NEMA 4 | NEMA 12
Product Information Phase
3
Product Information Protective Devices
Class 20 solid state overload relay, high air temperature, high pressure shutdown.
Product Information Separator Tank
ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
Product Information Standard Variable Frequency Drive Vfd
460 volt, NEMA 1.
Specifications Brand
Sullivan-Palatek®
Specifications Discharge National Pipe Thread Npt
3 in
Specifications Fan Motor Power
15 hp
Specifications Flow Capacity At 100 Psi Rating
1650 ft³/min
Specifications Flow Capacity At 125 Psi Rating
1566 ft³/min
Specifications Height
84 in
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Length
135 in
Specifications Motor Power
350 hp
Specifications Series
SP32
Specifications Sump Capacity
45 gal
Specifications Weight
10900 lb
Specifications Weight Per Enclosed
12000 lb
Specifications Width
80 in
