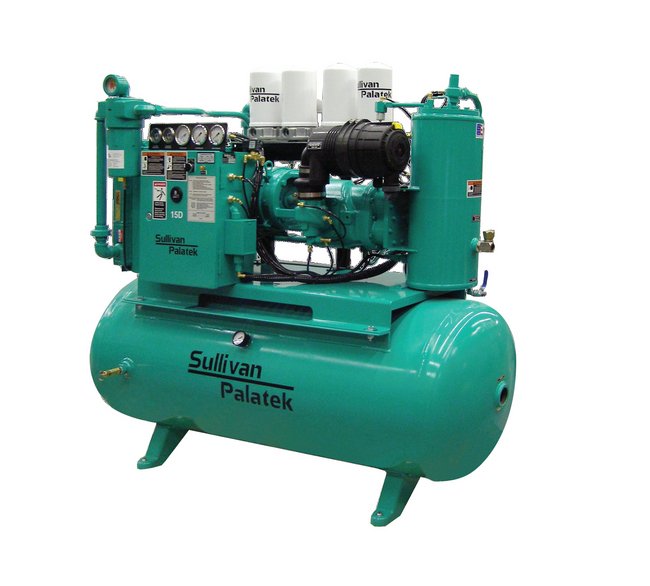

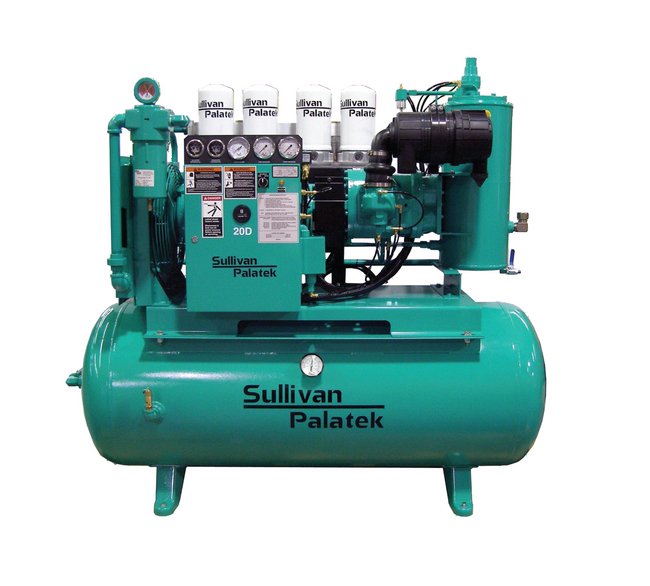

The Sullivan-Palatek® 125 acfm Industrial Air Compressor is a powerhouse designed for industrial applications, delivering a maximum full load pressure of 120 psig with a motor power of 30 hp. This complete compressor package includes a top-of-the-line mounted desiccant air dryer, high efficiency coalescing air filter, and a receiver tank. With a -40 ºF dew point, this compressor ensures superior moisture and contaminant elimination. Energy-efficient and meeting CAGI standards, this compressor guarantees reliability and peak performance for your industrial air needs.
Product Specifications
Compressor Data Driven Rotor Coupling
Direct
Compressor Data Drive Ratio
Direct
Compressor Data Maximum Full Load Pressure
120 psig
Compressor Data Maximum Unload Pressure
130 psig
Compressor Data Minimum Full Load Pressure
70 psig
Compressor Data Motor Power
30 hp
Compressor Data Motor Power At 100 Psig Rating
32 bhp
Compressor Data Motor Power At Full Load
34 bhp
Compressor Data Motor Speed
1750 rpm
Compressor Data Rotor Diameter
108 mm
Compressor Data Rotor Lengthdepth Ratio
2.3
Compressor Data Volumetric Capacity
125 acfm
Cooling Data Air Cooled Aftercooler Approach
10 ºF
Cooling Data Air Cooled Fan Air Flow
4600 ft³/min
Cooling Data Air Cooled Fluid Capacity
6 gal
Cooling Data Air Cooled Heat Rejection
81408 Btu/hr
Cooling Data Air Cooled Maximum Duct Loss H2o
0.2
Cooling Data Water Cooled Flow Of Water At 60 F
4 gpm
Cooling Data Water Cooled Flow Of Water At 70 F
4.4 gpm
Cooling Data Water Cooled Flow Of Water At 80 F
6 gpm
Cooling Data Water Cooled Maximum Water Temperature
85 ºF
Cooling Data Water Cooled Water Connection Inlet Size
3/4 in
Cooling Data Water Cooled Water Connection Outlet Size
3/4 in
Discharge Piping Female National Pipe Thread Fnpt Air Cooled Bas
1 in
Discharge Piping Female National Pipe Thread Fnpt Tank Mounted A
2 in
Discharge Piping Female National Pipe Thread Fnpt Water Cooled B
1-1/2 in
Electrical Data Circuit Breaker Control Voltage
115 V
Electrical Data Motor Full Load Current At 200 V
89.7 A
Electrical Data Motor Full Load Current At 208 V
86.3 A
Electrical Data Motor Full Load Current At 230 V
78 A
Electrical Data Motor Full Load Current At 460 V
39 A
Electrical Data Motor Full Load Current At 575 V
31.2 A
Features 0
Energy Efficient
Product Information Air Dryer

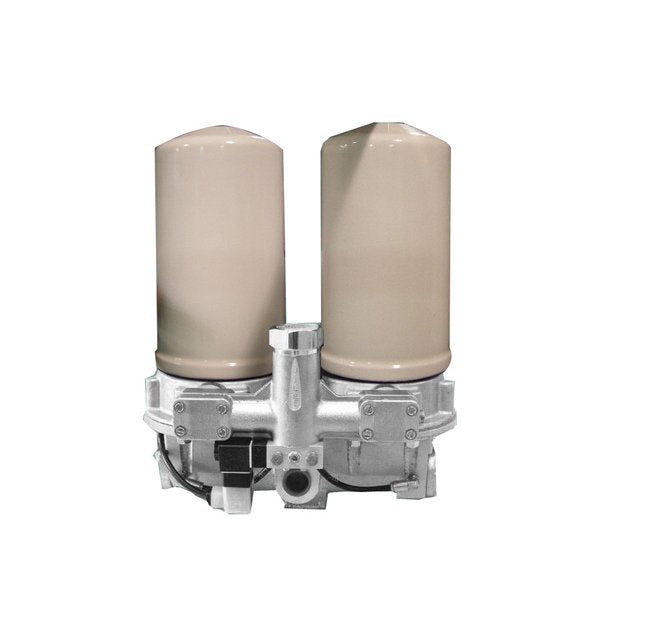

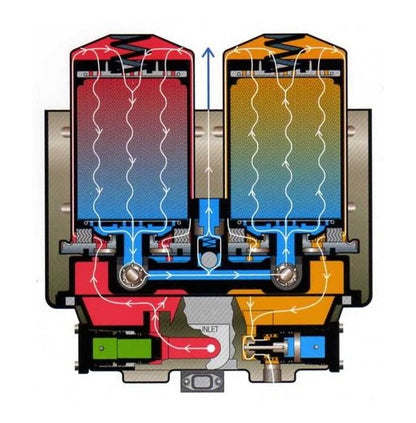

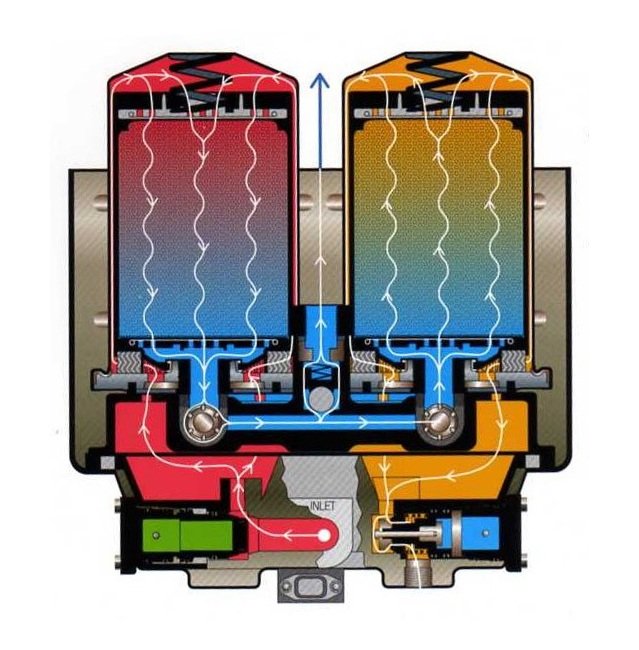

Desiccant air dryer and coalescing air filter for moisture removal, spin on replaceable cartridges and built for -40 ºF dew point.
Product Information Air Intake Filter
Multi-stage dry type with replaceable element.
Product Information Controls
Full modulation, electronically controlled for smooth operation and lowest possible no load power. Auto dual control, timed stop or constant run.
Product Information Cooling System
Air-cooled with air cooler/aftercooler and factory filled with Palasyn 45 synthetic lubricoolant. Equipped with micro fiber full flow oil filter.
Product Information Electric Motor
NEMA T-Frame, C-Face, double shaft, open drip proof squirrel cage induction type.Direct coupling to motor for positive alignment.
Product Information Instrumentation
Line pressure gauge, fluid reservoir gauge, hour meter, discharge temperature gauge, oil filter and separator element differential gauges.Microprocessor control available.
Specifications Brand
Sullivan-Palatek®
