Sullivan-Palatek SP32 Industrial Air Compressor
Sullivan-Palatek SP32 Industrial Air Compressor
SKU:SUL-19ff26
Powerful Sullivan-Palatek SP32 Industrial Air Compressor for energy-efficient performance in industrial settings.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
Sullivan-Palatek SP32 Industrial Air Compressor
$28,999.00
Quantity: 1
Claim Your Seller Account
Sullivan-Palatek SP32 Industrial Air Compressor
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

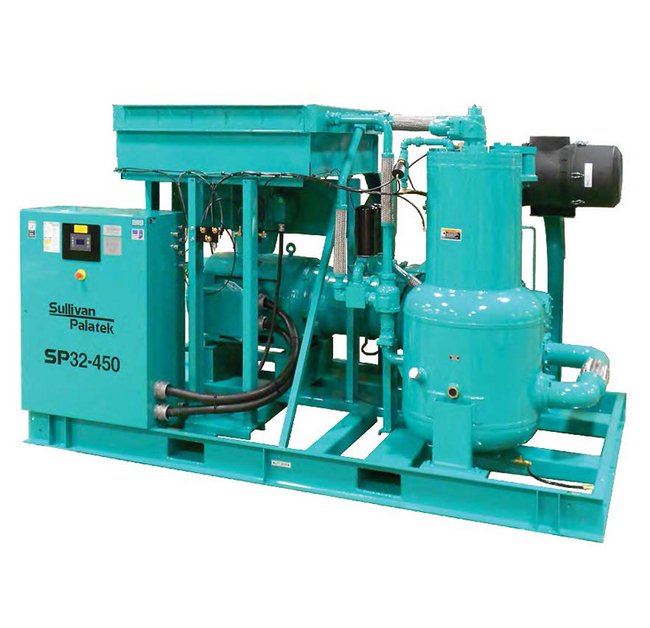

The Sullivan-Palatek® SP32 Series Industrial Air Compressor is a high-performance solution for industrial applications, boasting a 1910 ft³/min flow capacity at 100 psi and 450 hp motor power. Built to meet AEM, CAGI, and I Make America standards, this compressor ensures energy efficiency with features like full modulation controls, a Class 20 solid-state overload relay, and a Wye Delta optional motor starter. Enjoy reliable operation and advanced monitoring capabilities with the S-P microprocessor controller and deluxe gauge panel. Experience top-notch performance and compliance with this rotary screw compressor.
Product Specifications
Features 0
Energy Efficient
Note 0
The ultimate performance rotary screw air compressor.Due to continual improvements in our products, specifications are subject to change without notice.
Product Information Air Intake Filter
Oversize dry type with easily replaceable elements.
Product Information Controls
S-P microprocessor controller with sequencer, lead lag and remote monitoring for up to 8 machines.
Product Information Cooling System
Cooling system, large side by side lube and air-cooled aftercooler.
Product Information Coupling And Drive
Compressor is flange mounted to motor C-face for positive alignment and direct driven.
Product Information Electric Motor
460/575/3/60 standard, 50 cycle 380/415.
Product Information Electric Motor Power Voltage
460 V | 575 V
Product Information Electric Motor Power Voltage At 50 Cycle
60 V
Product Information Inlet And Check Valve
One piece housing for dependable performance. Modulation - 0 to 100%.
Product Information Lube Fill And Level Elbow
One piece fluid fill elbow and level indication sight glass.
Product Information Modulation Controls
Full modulation, solenoid controlled for smooth lowest possible no load power.
Product Information Motor Starter
460 volt, Solid State with 115 volt control, NEMA 1.
Product Information Optional Controls
Deluxe gauge panel.
Product Information Optional Motor Starter
NEMA 4, Wye Delta Available.
Product Information Optional Variable Frequency Drive Vfd
NEMA 4 | NEMA 12
Product Information Phase
3
Product Information Protective Devices
Class 20 solid state overload relay, high air temperature, high pressure shutdown.
Product Information Separator Tank
ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
Product Information Standard Variable Frequency Drive Vfd
460 volt, NEMA 1.
Specifications Brand
Sullivan-Palatek®
Specifications Discharge National Pipe Thread Npt
3 in
Specifications Fan Motor Power
20 hp
Specifications Flow Capacity At 100 Psi Rating
1910 ft³/min
Specifications Flow Capacity At 125 Psi Rating
1770 ft³/min
Specifications Flow Capacity At 150 Psi Rating
1633 ft³/min
Specifications Height
84 in
Specifications Industry Standards
AEM Member | CAGI Compressed Air and Gas Institute® | I Make America
Specifications Length
135 in
Specifications Motor Power
450 hp
Specifications Series
SP32
Specifications Sump Capacity
45 gal
Specifications Weight
13900 lb
Specifications Weight Per Enclosed
15000 lb
Specifications Width
80 in
