Suncor 3/4 in Stainless Steel Anchor Base with Stud

Suncor 3/4 in Stainless Steel Anchor Base with Stud

SKU:STA-d47edb

Premium stainless steel Anchor Base with Stud for secure and versatile lifting applications.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Suncor 3/4 in Stainless Steel Anchor Base with Stud

Suncor 3/4 in Stainless Steel Anchor Base with Stud

$69.99

Quantity: 1

Claim Your Seller Account

Suncor 3/4 in Stainless Steel Anchor Base with Stud

Suncor 3/4 in Stainless Steel Anchor Base with Stud

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

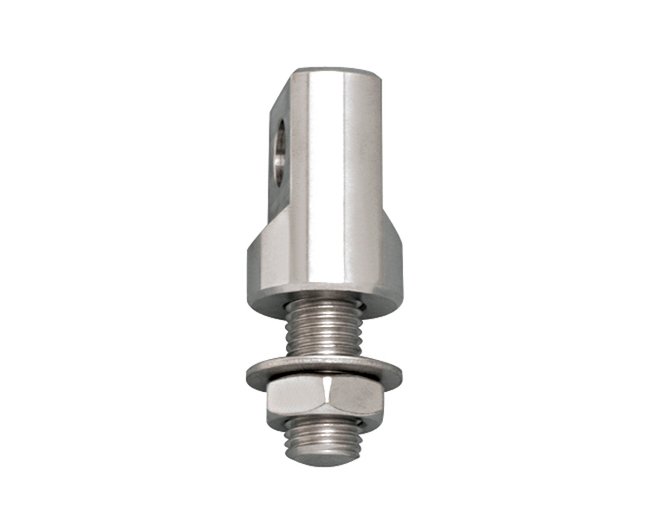

The Suncor 3/4 in Stainless Steel Anchor Base with Stud is a premium hoist assembly component precision machined from grade 316 stainless steel, ensuring superior corrosion resistance and durability. Designed to attach lifting points securely to objects lacking natural attachments, this anchor base accommodates various shackle types for versatile applications. With a working load limit of 6,000 lb, a 180-degree pivoting shackle, and a set screw for reliable fastening, this base offers a full range of motion. Whether for industrial, governmental, or marine use, this Anchor Base with Stud is a dependable choice for safe and efficient lifting operations.

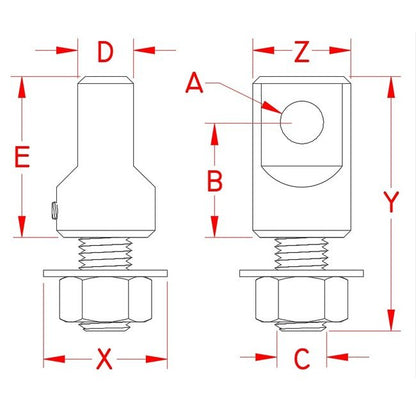

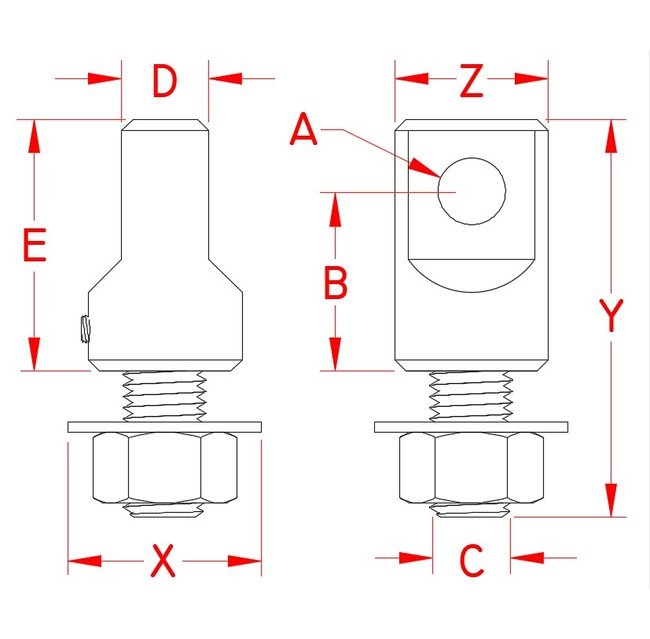

Product Specifications

Specifications Dimension A
0.88 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1"-8
Specifications Dimension D
1.19 in
Specifications Dimension E
2.89 in
Specifications Dimension X
2.00 in
Specifications Dimension Y
4.76 in
Specifications Dimension Z
2.00 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
3/4 in
Specifications Suncor Exclusive
Yes
Specifications Weight
2.43 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
