Suncor 304 Stainless Steel Bushing Rope Sheave

Suncor 304 Stainless Steel Bushing Rope Sheave

SKU:STA-1949c0

Premium Suncor stainless steel sheave for marine and industrial rigging, 304-grade with 1000 lb WLL.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor 304 Stainless Steel Bushing Rope Sheave

Suncor 304 Stainless Steel Bushing Rope Sheave

$29.99

Quantity: 1

Claim Your Seller Account

Suncor 304 Stainless Steel Bushing Rope Sheave

Suncor 304 Stainless Steel Bushing Rope Sheave

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

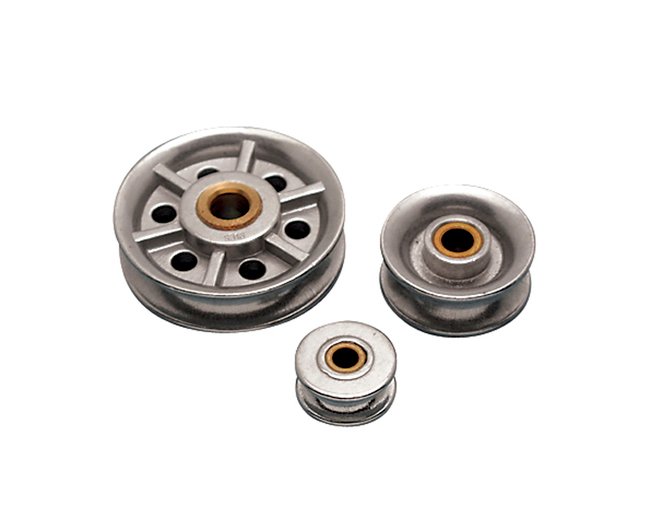

The Suncor 304 Stainless Steel Bushing Rope Sheave is a premium-grade pulley designed for marine and industrial rigging applications. Made from precision cast 304 stainless steel with a bronze bushing, it ensures maximum corrosion resistance and durability. Capable of accommodating rope sizes from 1/4" to 1", this sheave guarantees a perfect fit for diverse projects, with a Working Load Limit (WLL) of 1000 lb. Trust in Suncor quality for reliable performance in any rigging setup.

Product Specifications

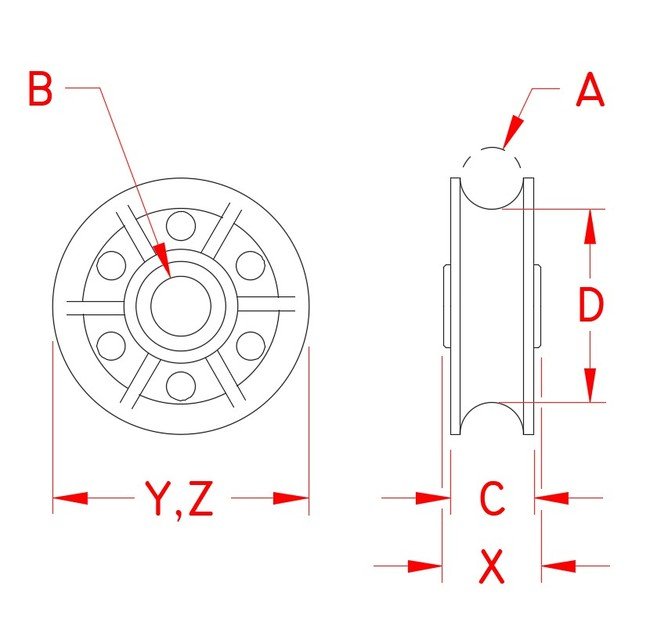

Specifications Dimension A
3/8 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.78 in
Specifications Dimension D
1.38 in
Specifications Dimension X
0.81 in
Specifications Dimension Y
2.00 in
Specifications Dimension Z
2.00 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.26 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
