Suncor 316-NM Stainless Steel Anchor Shackle

Suncor 316-NM Stainless Steel Anchor Shackle

SKU:STA-0818f9

Premium Suncor 316-NM Stainless Steel Anchor Shackle for marine use, ASME B30.26-2010 compliant, 8,000 lb WLL.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Suncor 316-NM Stainless Steel Anchor Shackle

Suncor 316-NM Stainless Steel Anchor Shackle

$69.99

Quantity: 1

Claim Your Seller Account

Suncor 316-NM Stainless Steel Anchor Shackle

Suncor 316-NM Stainless Steel Anchor Shackle

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

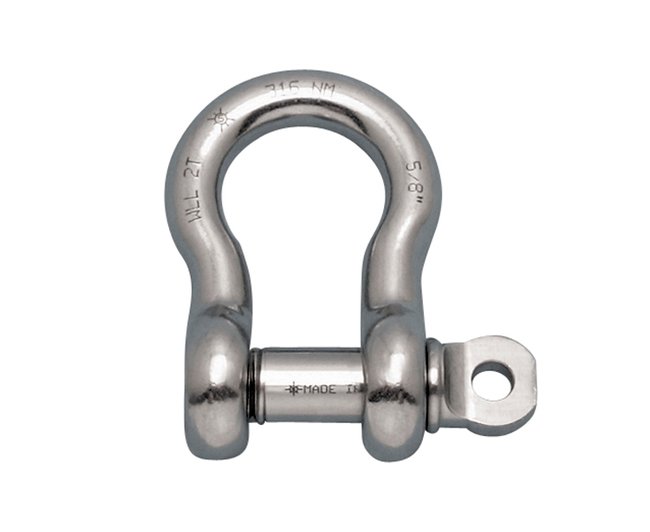

The Suncor 316-NM Stainless Steel Anchor Shackle is expertly crafted for marine environments, featuring a grade 316 stainless steel construction and an oversize screw pin for secure connections. With a working load limit of 8,000 lb, this anchor shackle is ideal for heavy-duty applications where strength and corrosion resistance are paramount. Compliant with ASME B30.26-2010 and DFARS standards, this shackle meets rigorous industry requirements, including Fed Spec RR-C-271 Type IVA Class 2. Designed for durability and reliability, this anchor shackle is proudly made in the USA by Suncor.

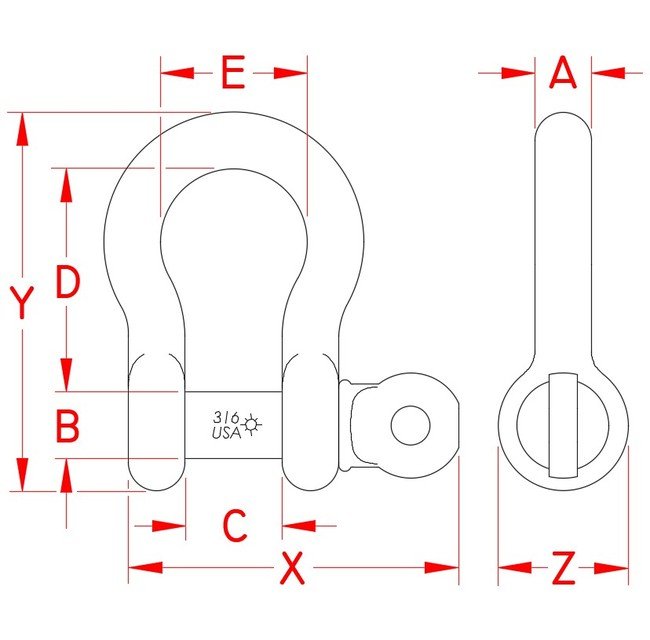

Product Specifications

Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.48 in
Specifications Dimension D
3.30 in
Specifications Dimension E
2.20 in
Specifications Dimension X
5.75 in
Specifications Dimension Y
4.78 in
Specifications Dimension Z
1.92 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
3.23 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
