Suncor 316-NM Stainless Steel Plain Eye Bolt with UNC Threads
Suncor 316-NM Stainless Steel Plain Eye Bolt with UNC Threads
SKU:STA-7a986a
Durable Suncor 316-NM Stainless Steel Eye Bolt, 5,140 lb WLL, ideal for marine and industrial use.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Suncor 316-NM Stainless Steel Plain Eye Bolt with UNC Threads
$14.99
Quantity: 1
Claim Your Seller Account
Suncor 316-NM Stainless Steel Plain Eye Bolt with UNC Threads
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

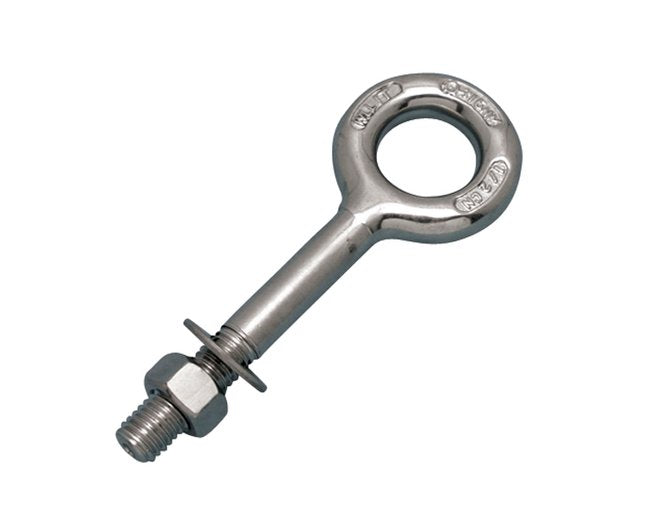

The Suncor 316-NM Stainless Steel Plain Eye Bolt is a durable and corrosion-resistant solution for marine and industrial applications. Made from grade 316-NM stainless steel, this eye bolt comes with one nut and washer, ensuring secure fastening. With a Working Load Limit of 5,140 lb, precision machined fabrication, and compliance with ASME B30.26 specifications, this eye bolt is ideal for projects requiring reliability and performance.
Product Specifications

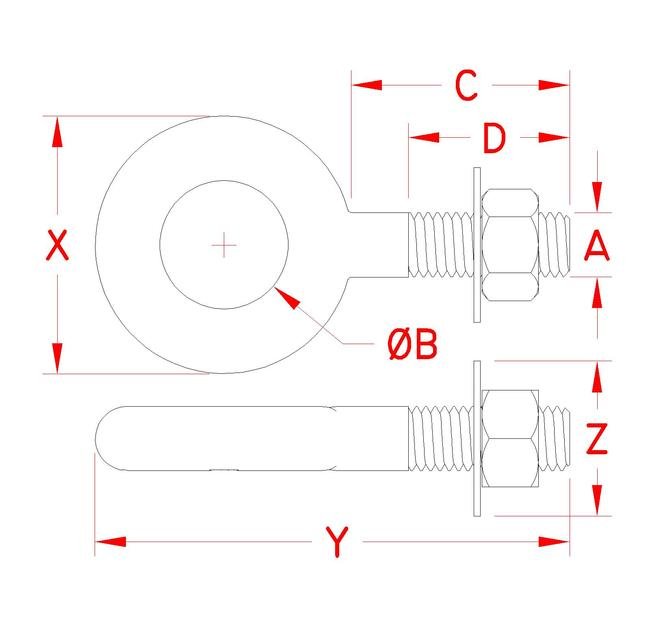

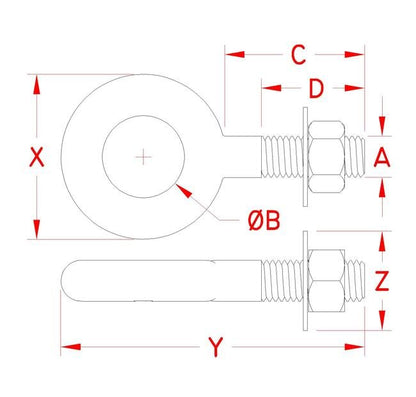

Specifications Dimension A
3/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.00 in
Specifications Dimension D
0.88 in
Specifications Dimension X
2.90 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
1.45 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.06 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
