Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

SKU:STA-425fde

Premium Suncor 316 Stainless Steel Rope Sheave for marine and industrial rigging with bronze bushing. Maximum corrosion resistance, 1000 lb WLL. Suncor patented design.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

$29.99

Quantity: 1

Claim Your Seller Account

Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

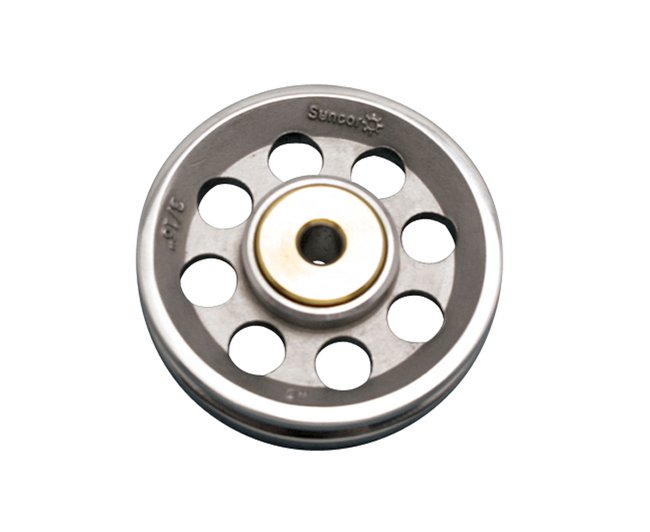

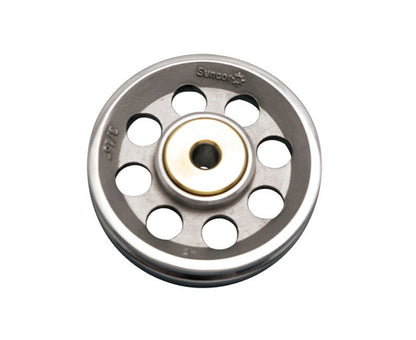

The Suncor 316 Stainless Steel Bushing Rope Sheave features a bronze bushing and is designed to accommodate rope sizes from 1/4" to 1" for precise applications. Crafted from grade 316 stainless steel, this sheave excels in marine and industrial rigging by offering exceptional corrosion resistance and durability. With a working load limit of 1000 lb, precision-cast fabrication, and exclusive Suncor patents, this sheave ensures reliability in critical operations.

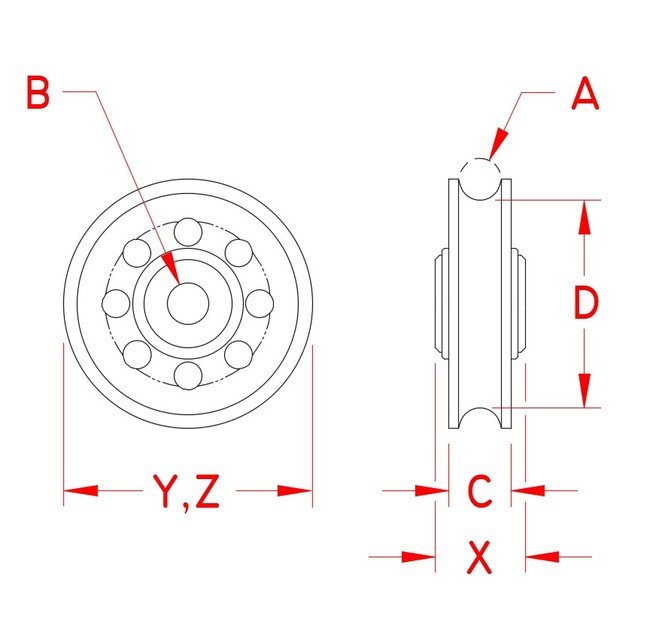

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
1/2 in
Specifications Dimension C
0.56 in
Specifications Dimension D
1.88 in
Specifications Dimension X
0.82 in
Specifications Dimension Y
2.25 in
Specifications Dimension Z
2.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.34 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
