Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

SKU:STA-bfc5cd

Premium 316 stainless steel rope sheave with bronze bush, ideal for marine and industrial rigging. High corrosion resistance, durable, and efficient, handles rope sizes 1/4" to 1".

Regular price $45.99
Regular price Sale price $45.99
Sale

Initiate Order

Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

$45.99

Quantity: 1

Claim Your Seller Account

Suncor 316 Stainless Steel Bushing Rope Sheave

Suncor 316 Stainless Steel Bushing Rope Sheave

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

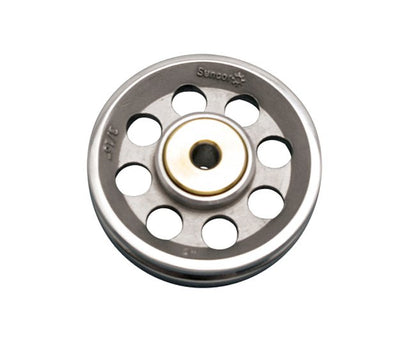

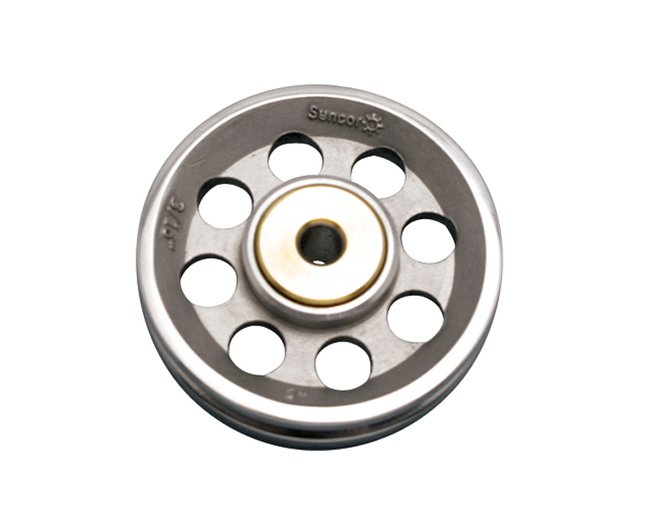

The Suncor 316 Stainless Steel Bushing Rope Sheave is engineered with a bronze bush to accommodate rope sizes ranging from 1/4" to 1", ensuring precise fits for diverse applications. Crafted from top-grade 316 stainless steel, this sheave offers unparalleled corrosion resistance and durability, making it a reliable choice for marine and industrial rigging projects. With a working load limit of 600 lb, precision cast fabrication, and patented Suncor exclusivity, this sheave guarantees high performance and longevity in demanding environments.

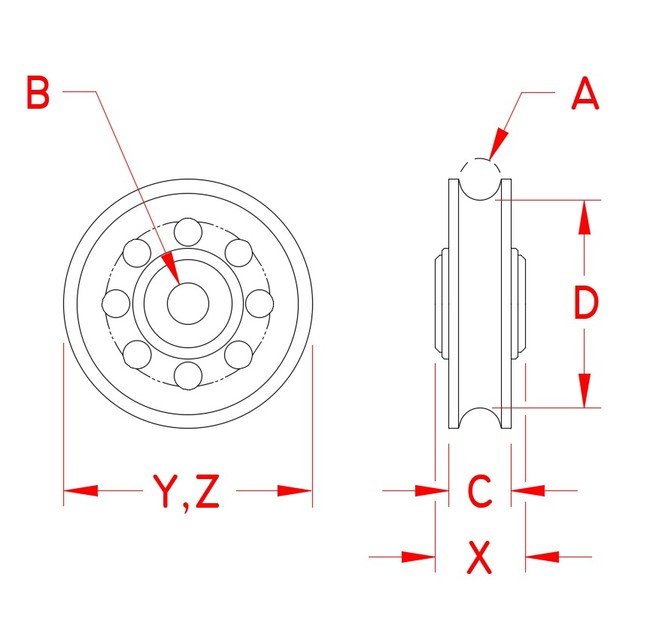

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.44 in
Specifications Dimension D
1.44 in
Specifications Dimension X
0.65 in
Specifications Dimension Y
1.75 in
Specifications Dimension Z
1.75 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.18 lb
Specifications Working Load Limit Wll
600 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
