Suncor 316 Stainless Steel Bushing Rope Sheave
Suncor 316 Stainless Steel Bushing Rope Sheave
SKU:STA-93cdf1
Premium Suncor 316 Stainless Steel Rope Sheave for marine & industrial rigging, WLL 8,000 lb
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

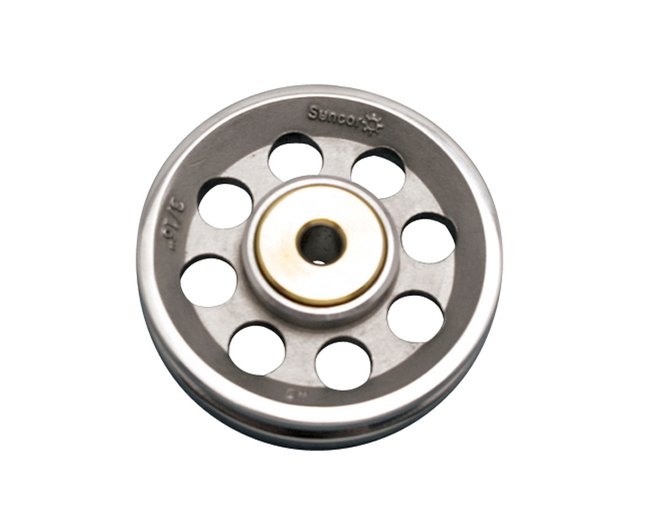

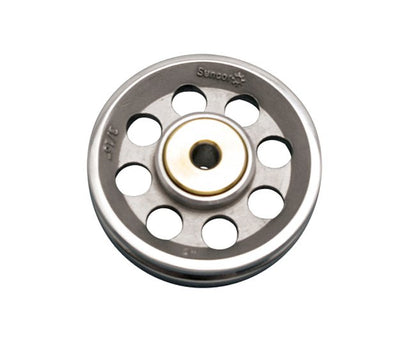

The Suncor 316 Stainless Steel Bushing Rope Sheave is engineered with a bronze bushing to fit rope sizes from 1/4" to 1" precisely. Crafted from grade 316 stainless steel, this sheave offers unparalleled corrosion resistance and durability, making it an ideal choice for demanding marine and industrial rigging applications. With a Working Load Limit (WLL) of 8,000 lb, precision cast fabrication, and Suncor exclusivity, this sheave ensures reliable performance and longevity in challenging environments.

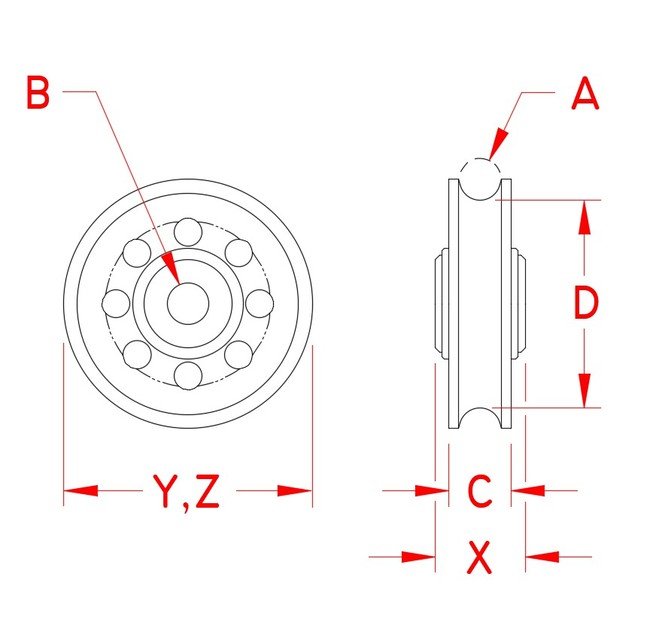

Product Specifications
Specifications Dimension A
1 in
Specifications Dimension B
3/4 in
Specifications Dimension C
1.38 in
Specifications Dimension D
5.25 in
Specifications Dimension X
1.63 in
Specifications Dimension Y
6.25 in
Specifications Dimension Z
6.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
4.82 lb
Specifications Working Load Limit Wll
8,000 lb
