Suncor 316 Stainless Steel Bushing Rope Sheave - Marine & Industrial Grade
Suncor 316 Stainless Steel Bushing Rope Sheave - Marine & Industrial Grade
SKU:STA-3289b4
Premium 316 Stainless Steel Rope Sheave for marine and industrial rigging applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor 316 Stainless Steel Bushing Rope Sheave - Marine & Industrial Grade
$39.99
Quantity: 1
Claim Your Seller Account
Suncor 316 Stainless Steel Bushing Rope Sheave - Marine & Industrial Grade
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

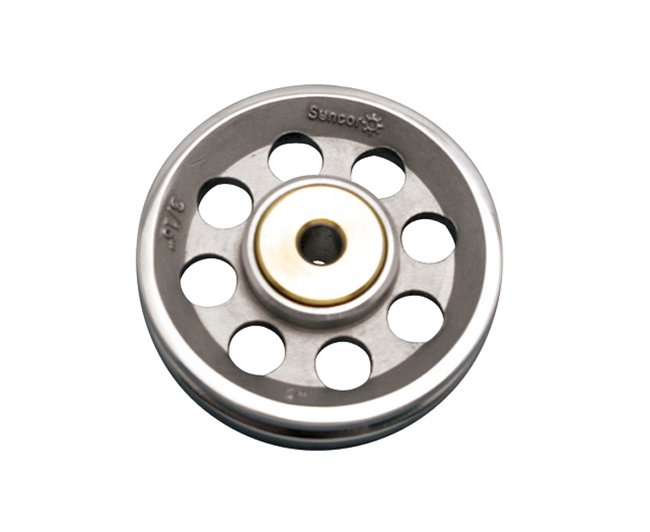

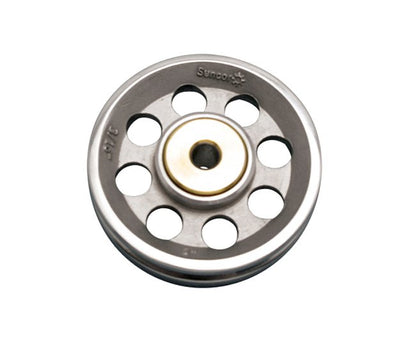

Upgrade your rigging projects with the Suncor 316 Stainless Steel Bushing Rope Sheave. This precision-cast sheave features a bronze bushing and fits rope sizes from 1/4" to 1". Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance and durability, making it ideal for marine and industrial applications. With a working load limit of 3000 lb, this sheave ensures reliability and performance in demanding environments.
Product Specifications

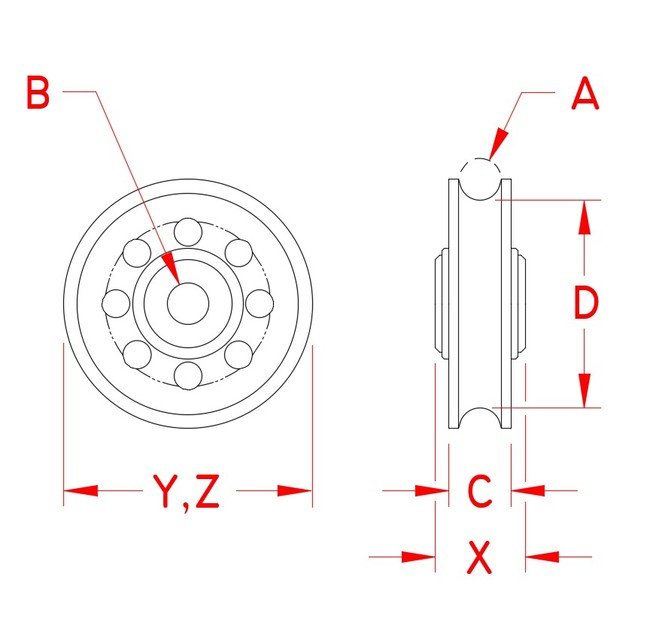

Specifications Dimension A
9/16 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.94 in
Specifications Dimension D
3.69 in
Specifications Dimension X
1.13 in
Specifications Dimension Y
4.25 in
Specifications Dimension Z
4.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
1.7 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
