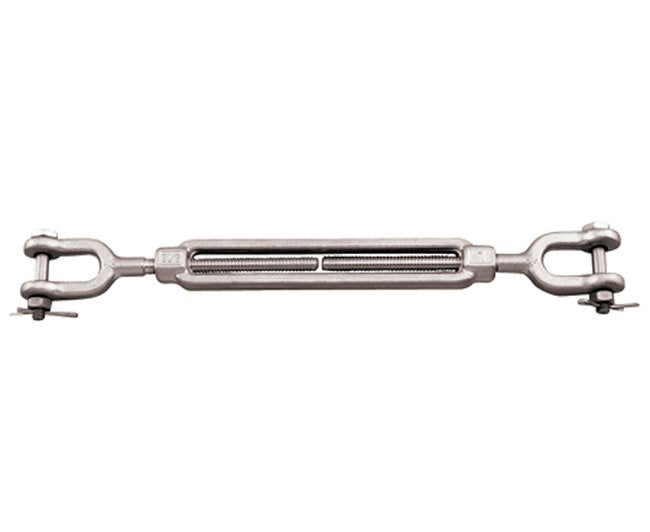

Suncor 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
Suncor 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
SKU:STA-8b4086
Get unmatched durability with Suncor's 316 Stainless Steel Turnbuckle. Ideal for marine and industrial use, meets ASTM standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$24.99
Quantity: 1
Claim Your Seller Account
Suncor 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability with the Suncor 316 Stainless Steel Forged Jaw and Jaw Turnbuckle. Crafted from grade 316-NM stainless steel, this turnbuckle ensures maximum corrosion resistance, making it ideal for marine and industrial applications. Meeting ASTM F1145-05 (2011) Type 1, Class G standards, this turnbuckle guarantees reliability and safety for your projects.
Product Specifications

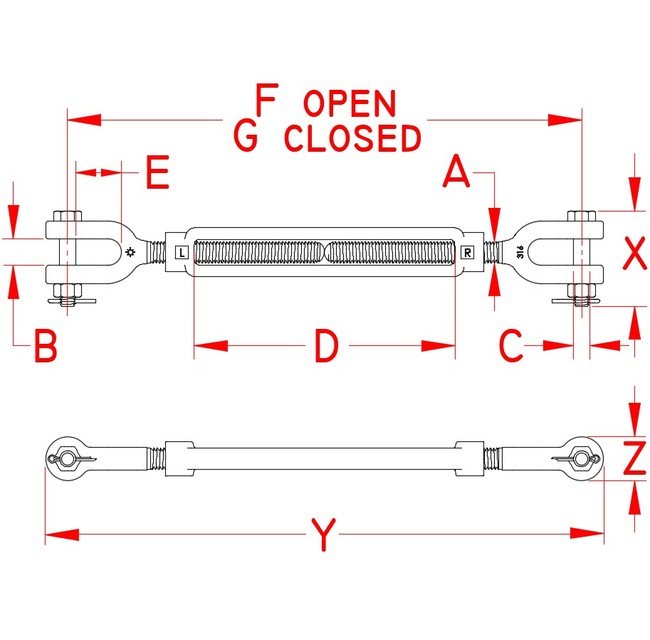

Specifications Dimension A
5/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.25 in
Specifications Dimension D
4.50 in
Specifications Dimension E
0.82 in
Specifications Dimension F
13.50 in
Specifications Dimension G
9.00 in
Specifications Dimension X
1.68 in
Specifications Dimension Y
10.00 in
Specifications Dimension Z
0.72 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.59 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
