Suncor 316 Stainless Steel Hoist Assembly

Name: Suncor 316 Stainless Steel Hoist Assembly
Brand: Suncor Stainless, Inc.
SKU: STA-730591
Price: 89.99 USD
Availability: OutOfStock

SKU:STA-730591

Durable Suncor 316 Stainless Steel Hoist Assembly with 6,000 lb WLL, ideal for versatile lifting applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

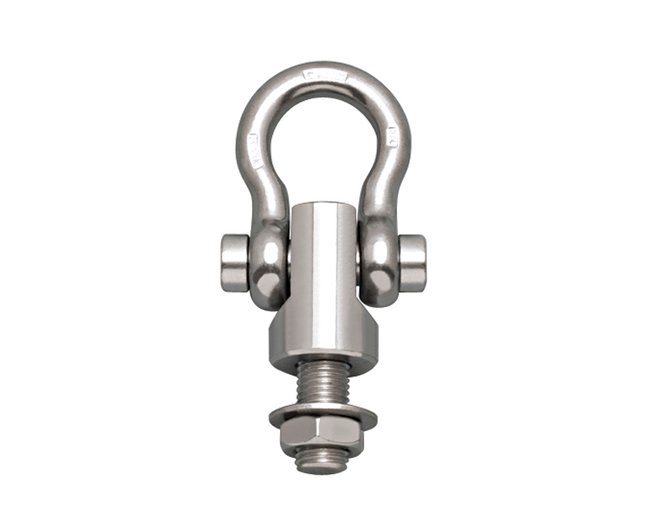

The Suncor 316 Stainless Steel Hoist Assembly is a superior lifting solution designed for maximum durability and corrosion resistance. This complete assembly includes a hoist anchor base, fixed shackle with 180-degree pivoting capability, threaded rod, washer, and nut. Made from grade 316 stainless steel, it meets stringent institutional procurement standards and offers a working load limit of 6,000 lb. The anchor base features a set screw for secure attachment, providing a versatile solution for various lifting applications.

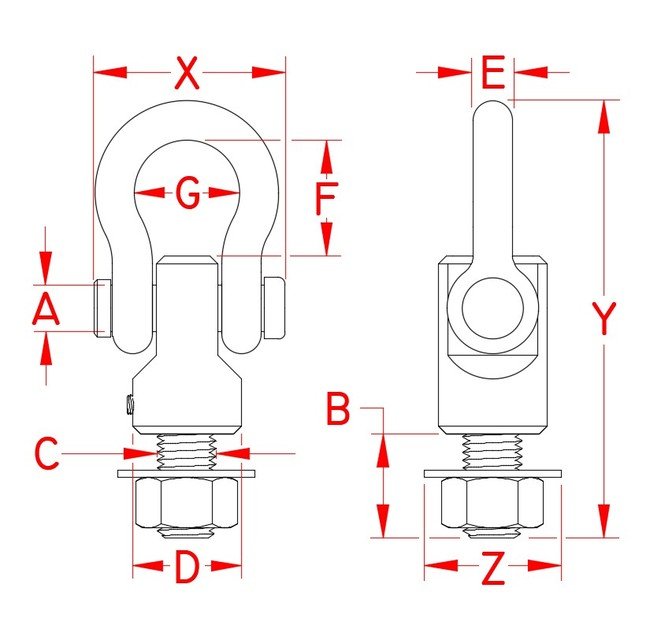

Product Specifications

Specifications Dimension A

0.88 in

Specifications Dimension B

1.90 in

Specifications Dimension C

1"-8

Specifications Dimension D

2.00 in

Specifications Dimension E

0.75 in

Specifications Dimension F

2.48 in

Specifications Dimension G

1.95 in

Specifications Dimension X

3.73 in

Specifications Dimension Y

7.75 in

Specifications Dimension Z

2.00 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Size

3/4 in

Specifications Suncor Exclusive

Yes

Specifications Weight

4.55 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Suncor 316 Stainless Steel Hoist Assembly
