Suncor 316 Stainless Steel Hoist Assembly

Suncor 316 Stainless Steel Hoist Assembly

SKU:STA-738282

Enhance lifting capabilities with the Suncor 316 Stainless Steel Hoist Assembly. Grade 316 stainless steel construction, 180-degree pivoting shackle, and 1500 lb WLL for durability and versatility.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor 316 Stainless Steel Hoist Assembly

Suncor 316 Stainless Steel Hoist Assembly

$49.99

Quantity: 1

Claim Your Seller Account

Suncor 316 Stainless Steel Hoist Assembly

Suncor 316 Stainless Steel Hoist Assembly

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

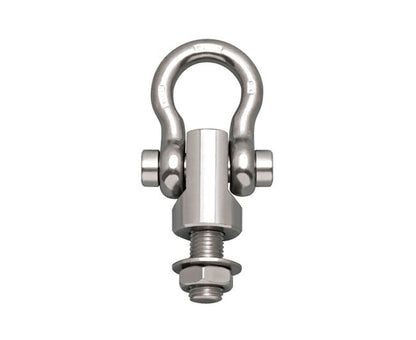

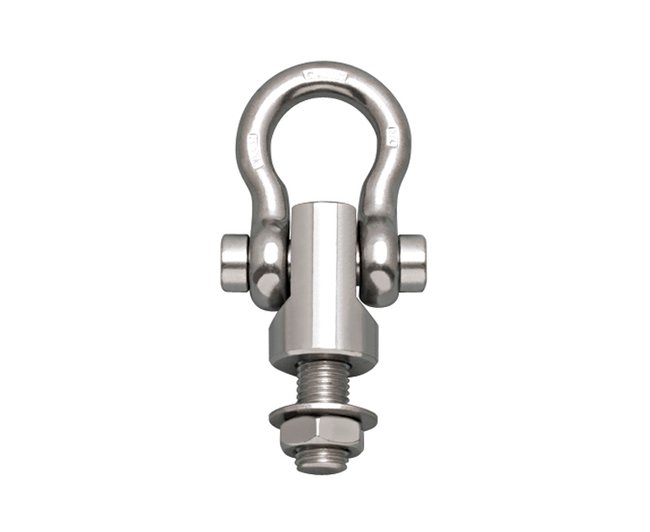

The Suncor 316 Stainless Steel Hoist Assembly is a complete lifting solution featuring a durable grade 316 stainless steel construction for superior corrosion resistance. It includes a hoist anchor base, fixed shackle, threaded rod, washer, and nut. Ideal for diverse lifting applications, the anchor base allows secure attachment to objects without natural lifting points. The pivoting shackle enables 180-degree flexibility, while the base's set screw ensures a stable connection. With a high Working Load Limit (WLL) of 1500 lb, this assembly offers reliability and versatility for institutional and government procurement needs.

Product Specifications

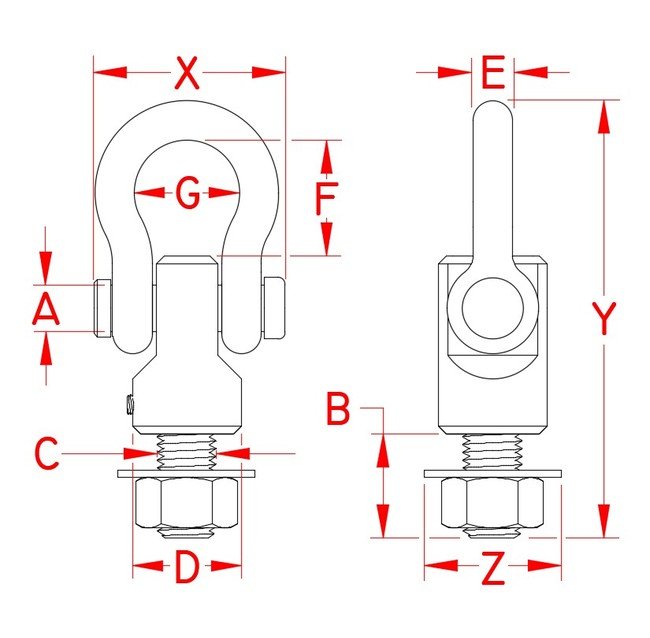

Specifications Dimension A
0.44 in
Specifications Dimension B
0.86 in
Specifications Dimension C
1/2"-13
Specifications Dimension D
1.25 in
Specifications Dimension E
0.38 in
Specifications Dimension F
1.13 in
Specifications Dimension G
1.05 in
Specifications Dimension X
2.02 in
Specifications Dimension Y
4.36 in
Specifications Dimension Z
1.25 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
3/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.86 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
