Suncor 316 Stainless Steel Threaded Yoke End, UNC Threads

Name: Suncor 316 Stainless Steel Threaded Yoke End, UNC Threads
Brand: Suncor Stainless, Inc.
SKU: STA-2cfa51
Price: 14.99 USD
Availability: OutOfStock

SKU:STA-2cfa51

Enhance marine and industrial turnbuckles with Suncor's durable 316 Stainless Steel Threaded Yoke End, ideal for various applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

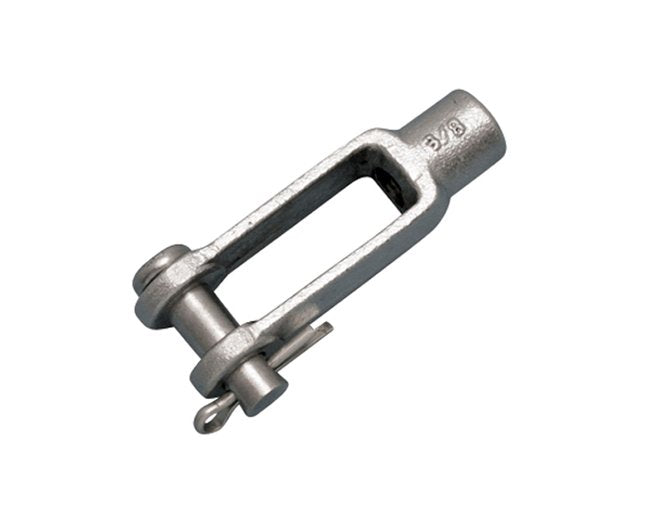

Upgrade your marine and industrial turnbuckle applications with the Suncor Threaded Yoke End. Crafted from grade 316 stainless steel, this yoke end offers superior corrosion resistance and durability. Available in various sizes from 3/16" to 3/4", featuring UNC threads for secure fastening. Precision machined and drop forged for reliability, this threaded yoke end ensures a Working Load Limit (WLL) of 300 lb. Trust Suncor's exclusive design for top-notch performance in challenging environments.

Product Specifications

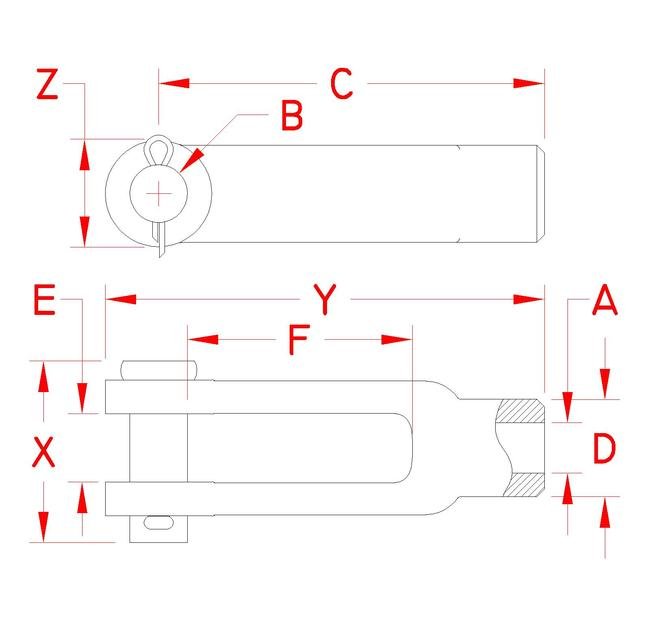

Specifications Dimension A

3/16 in

Specifications Dimension B

0.19 in

Specifications Dimension C

1.56 in

Specifications Dimension D

0.31 in

Specifications Dimension E

0.19 in

Specifications Dimension F

0.89 in

Specifications Dimension X

0.68 in

Specifications Dimension Y

1.81 in

Specifications Dimension Z

0.39 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

0.04 lb

Specifications Working Load Limit Wll

300 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
