Suncor 316 Stainless Steel US Anchor Shackle - 1/4 in
Suncor 316 Stainless Steel US Anchor Shackle - 1/4 in
SKU:STA-09f183
Premium Suncor 316 Stainless Steel US Anchor Shackle, ASME B30.26-2010 & DFARS compliant, ideal for marine applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor 316 Stainless Steel US Anchor Shackle - 1/4 in
$29.99
Quantity: 1
Claim Your Seller Account
Suncor 316 Stainless Steel US Anchor Shackle - 1/4 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

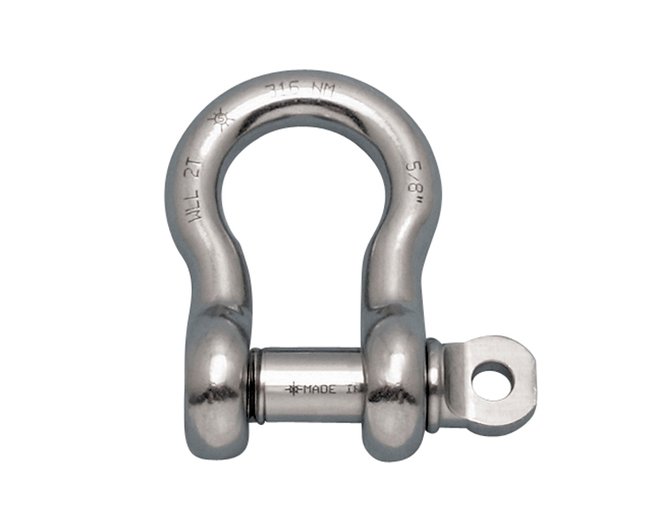

The Suncor 316 Stainless Steel US Anchor Shackle is expertly crafted with grade 316 stainless steel, featuring an oversize screw pin for secure applications. Specifically designed for salt water environments, this anchor shackle meets ASME B30.26-2010 section 26-0 American National Standard and is DFARS compliant. With a Working Load Limit (WLL) of 1000 lb, this drop-forged shackle is perfect for marine, industrial, and heavy-duty use, proudly Made in USA.
Product Specifications

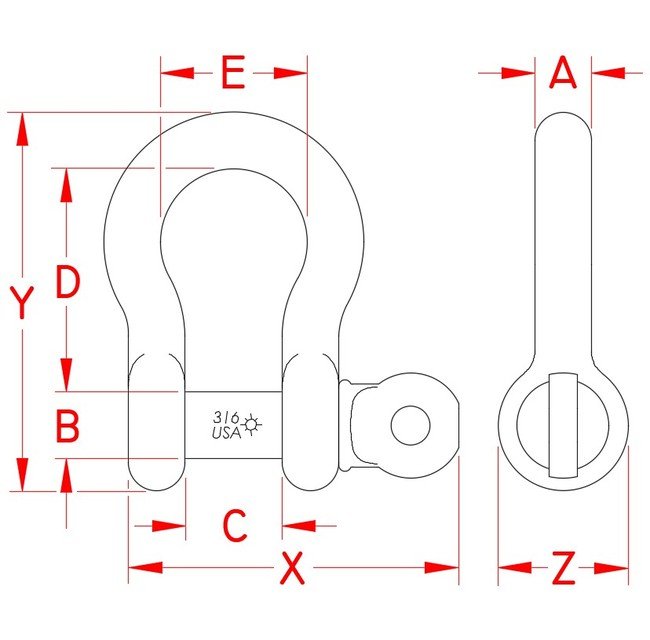

Specifications Dimension A
1/4 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.47 in
Specifications Dimension D
1.11 in
Specifications Dimension E
0.75 in
Specifications Dimension X
1.56 in
Specifications Dimension Y
1.80 in
Specifications Dimension Z
0.61 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.1 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
