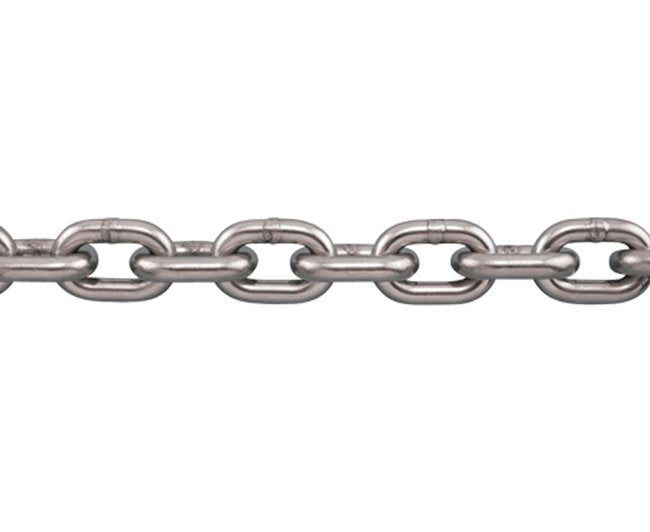

Suncor 316L Stainless Steel Lifting Chain, Grade 50, 3/8 inch
Suncor 316L Stainless Steel Lifting Chain, Grade 50, 3/8 inch
SKU:CHA-e361eb
Heavy-duty Suncor 316L Stainless Steel Lifting Chain, Grade 50, 3/8 inch, MIL-DTL-32655 compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor 316L Stainless Steel Lifting Chain, Grade 50, 3/8 inch
$39.99
Quantity: 1
Claim Your Seller Account
Suncor 316L Stainless Steel Lifting Chain, Grade 50, 3/8 inch
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor 316L Stainless Steel Lifting Chain in Grade 50 offers exceptional strength and durability. Compliant with MIL-DTL-32655 standards, this chain is calibrated to grade 80 dimensions for reliable performance. With a 17,600 lb Basic Load and a 4,400 lb Working Load Limit, it meets rigorous overhead lifting requirements. Ensure safety by never exceeding the Working Load Limit and using all components rated for overhead lifting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions In Dimension A
0.39 in
Dimensions In Dimension B
1.18 in
Dimensions In Dimension C
0.55 in
Dimensions In Height X
1.34 in
Dimensions In Length Y
1.96 in
Dimensions In Width Z
1.34 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead liftingImported
Specifications Basic Load Bl
17,600 lb
Specifications Carton Quantity
200
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
3/8 in
Specifications Upc Code
791506045885
Specifications Weight Wt
1.41 lb/ft
Specifications Working Load Limit Wll
4,400 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
