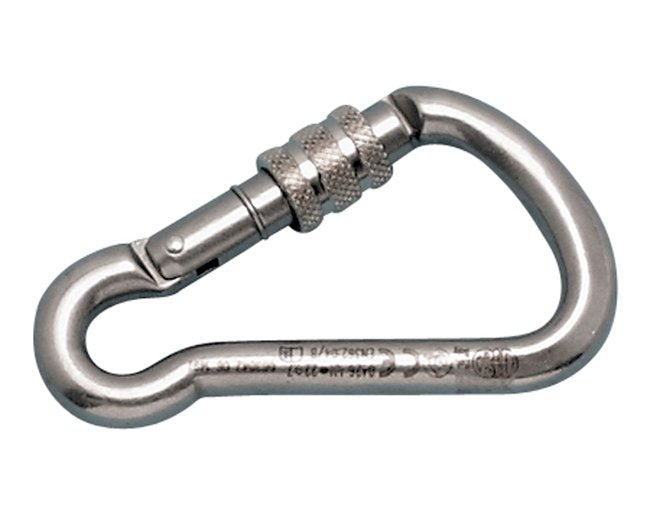

Suncor Aluminum Screw Lock Harness Clip
Suncor Aluminum Screw Lock Harness Clip
SKU:STA-506750
Premium Suncor Aluminum Clip with 1,600 lb WLL and Enhanced Safety Features
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Suncor Aluminum Screw Lock Harness Clip is a premium-grade industrial fastening solution suitable for a range of applications. Crafted from durable aluminum using drop forged and wire formed fabrication, this clip ensures robust performance. With a working load limit of 1,600 lb and a break load three times higher, it guarantees utmost safety and reliability. Ideal for securing critical connections, the aluminum screw lock mechanism adds an extra layer of security, meeting stringent institutional procurement standards.
Product Specifications

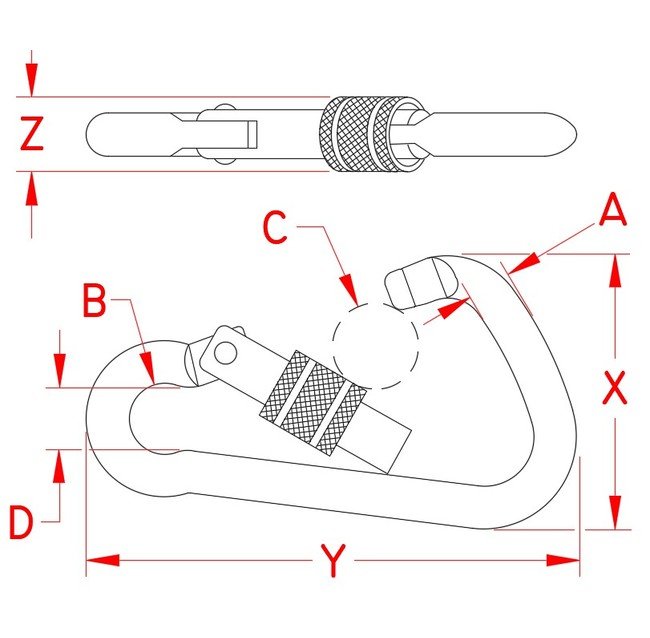

Specifications Dimension A
7/16 in
Specifications Dimension B
0.70 in
Specifications Dimension C
0.91 in
Specifications Dimension D
0.50 in
Specifications Dimension X
2.87 in
Specifications Dimension Y
4.92 in
Specifications Dimension Z
0.67 in
Specifications Fabrication Type
Drop Forged | Wire Formed
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
Aluminum
Specifications Weight
0.18 lb
Specifications Working Load Limit Wll
1,600 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
