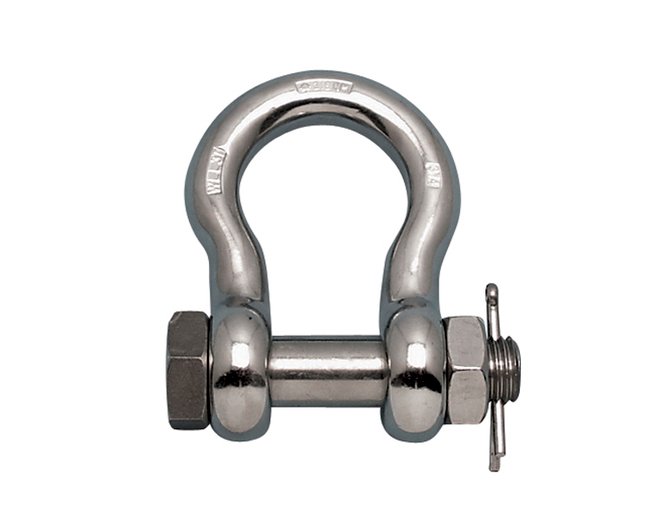

Suncor Bolt Anchor Shackle - Grade 316 Stainless Steel
Suncor Bolt Anchor Shackle - Grade 316 Stainless Steel
SKU:STA-6059d2
Premium grade 316 stainless steel Bolt Anchor Shackle with oversize bolt, ideal for marine use. Load rated to 8,000 lb.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Suncor Bolt Anchor Shackle - Grade 316 Stainless Steel
$49.99
Quantity: 1
Claim Your Seller Account
Suncor Bolt Anchor Shackle - Grade 316 Stainless Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Bolt Anchor Shackle, made from premium grade 316 stainless steel, boasts an oversize bolt design tailored for salt water environments. Ideal for connecting anchors securely, this shackle is drop forged and load rated to 8,000 lb, meeting ASME B30.26-2010, Fed. Spec. RR-C-271, and MIL-DTL-32655 standards. With dimensions of 7/8" x 1.00", this Suncor exclusive product combines durability and functionality for marine and industrial applications.
Product Specifications

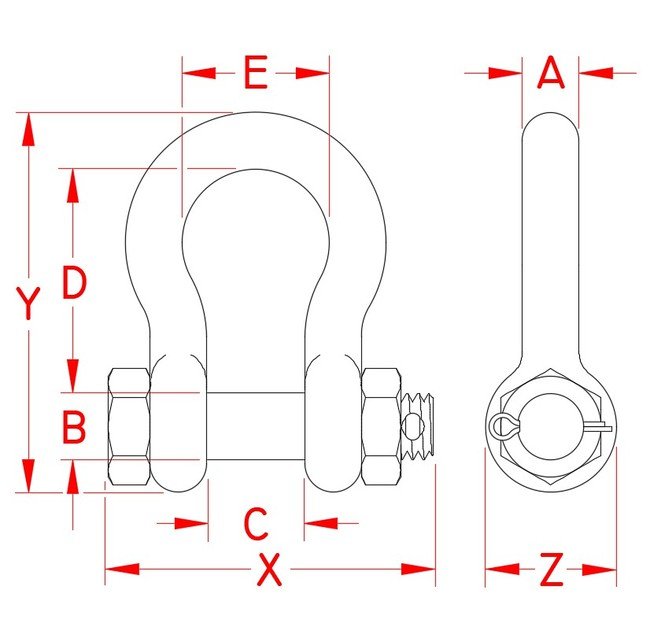

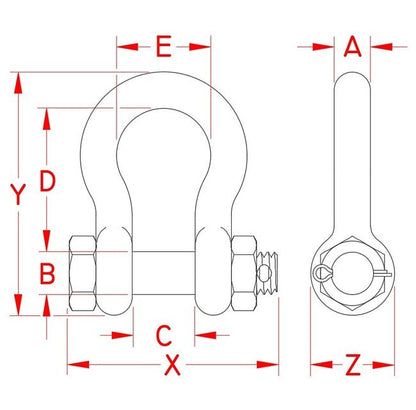

Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.48 in
Specifications Dimension D
3.30 in
Specifications Dimension E
2.20 in
Specifications Dimension X
4.85 in
Specifications Dimension Y
5.73 in
Specifications Dimension Z
1.94 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
3.66 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
