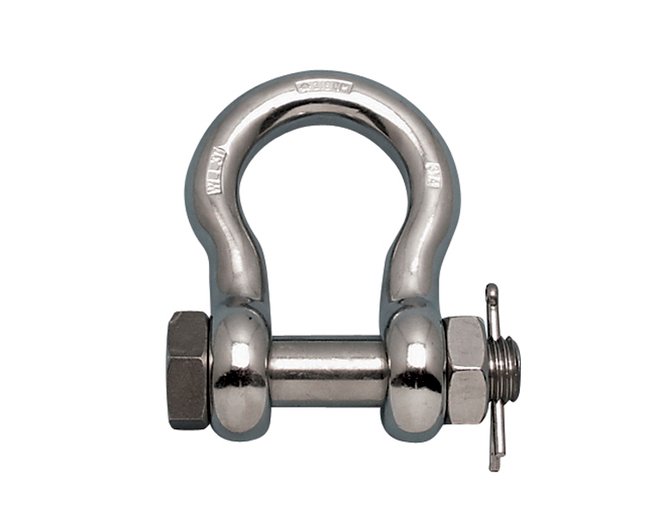

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

SKU:STA-050bf8

Premium Suncor Bolt Anchor Shackle made of 316-NM Stainless Steel with oversize bolt, ideal for marine use.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

$34.99

Quantity: 1

Claim Your Seller Account

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Bolt Anchor Shackle is precision-crafted from 316-NM stainless steel featuring an oversize bolt, ensuring unmatched durability and corrosion resistance, making it ideal for saltwater applications. This anchor shackle securely connects anchors to chains or anchor swivels, offering a reliable solution for marine environments. Meeting ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and more, this shackle exceeds stringent standards for class 3 applications.

Product Specifications

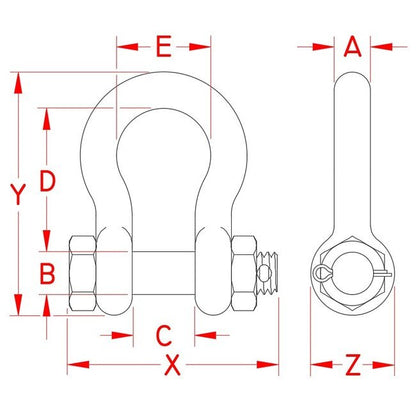

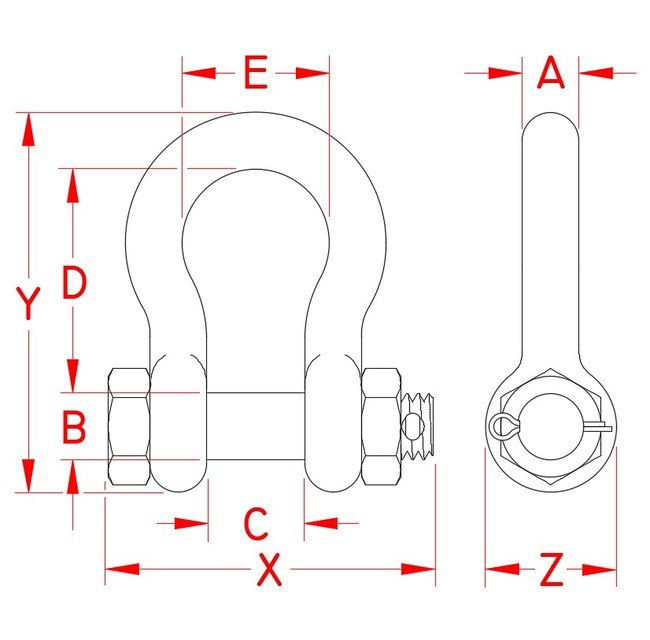

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.72 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1.10 in
Specifications Dimension X
2.65 in
Specifications Dimension Y
2.92 in
Specifications Dimension Z
1.01 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.47 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
