Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

SKU:STA-2f3e14

Discover unparalleled strength with the Suncor Bolt Anchor Shackle - ideal for marine connections. Made of 316-NM stainless steel with a 6,000 lb WLL. ASME B30.26-2010 compliant.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

Suncor Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

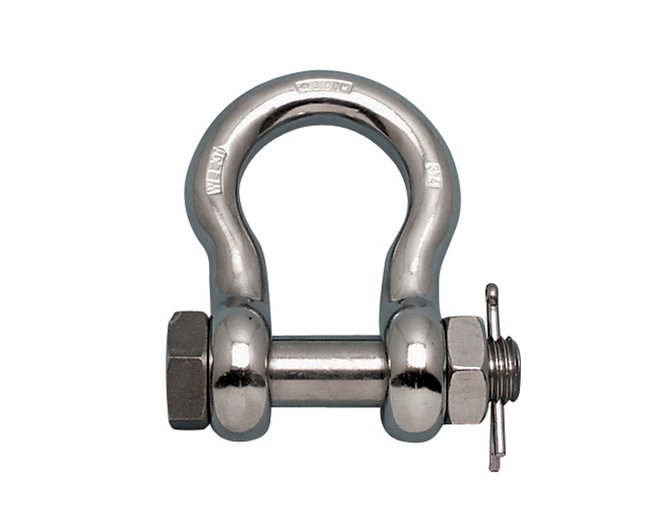

The Suncor Bolt Anchor Shackle is expertly crafted from premium 316-NM stainless steel with a robust oversize bolt, ensuring exceptional strength and durability. Designed for saltwater applications, this shackle securely connects the anchor to the chain or swivel. With a working load limit of 6,000 lb, this drop-forged shackle meets ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and Type IVA standards, making it a reliable choice for marine and industrial settings.

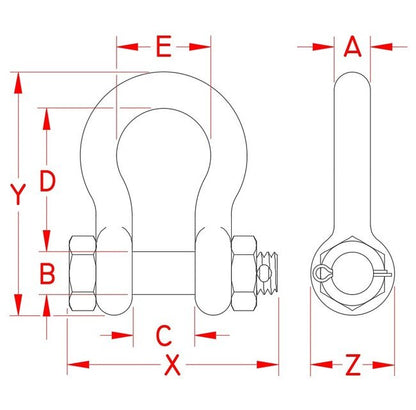

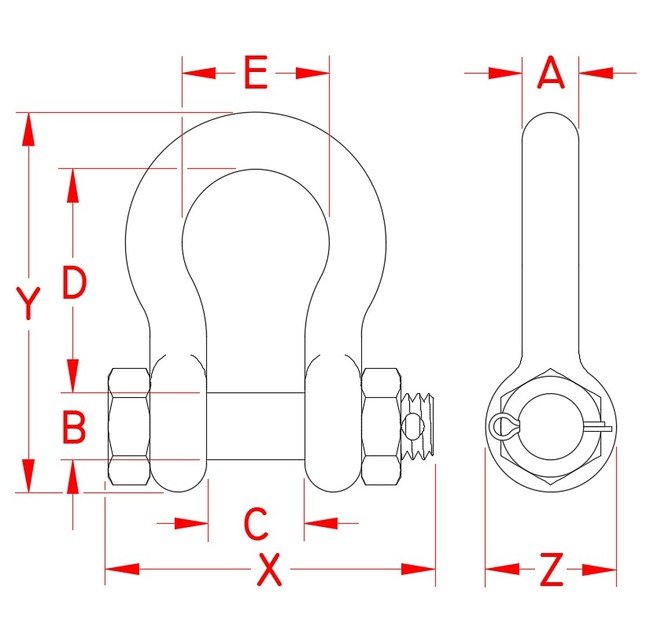

Product Specifications

Specifications Dimension A
3/4 in
Specifications Dimension B
0.88 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.84 in
Specifications Dimension E
1.90 in
Specifications Dimension X
4.21 in
Specifications Dimension Y
4.92 in
Specifications Dimension Z
1.73 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
2.42 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
