Suncor Bolt Chain Shackle - 316 Stainless Steel

Suncor Bolt Chain Shackle - 316 Stainless Steel

SKU:STA-a5f1b6

Premium 316 stainless steel Bolt Chain Shackle with oversize bolt for maximum corrosion resistance - WLL 1500 lb. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Bolt Chain Shackle - 316 Stainless Steel

Suncor Bolt Chain Shackle - 316 Stainless Steel

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Bolt Chain Shackle - 316 Stainless Steel

Suncor Bolt Chain Shackle - 316 Stainless Steel

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

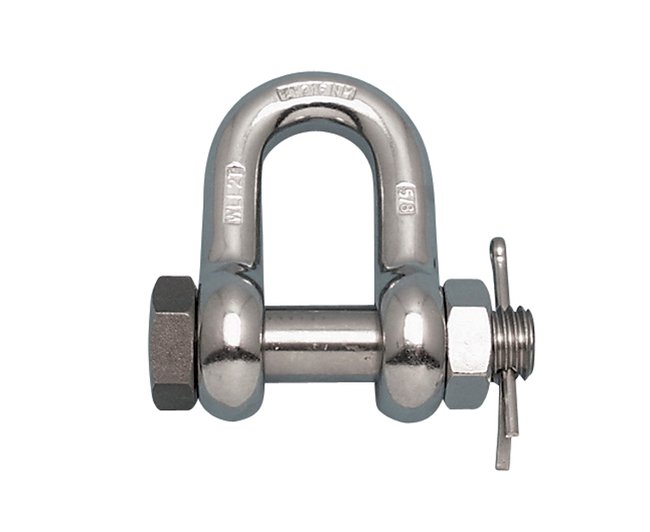

The Suncor Bolt Chain Shackle is a premium-grade shackle crafted from 316-NM stainless steel, ensuring exceptional corrosion resistance for demanding industrial and marine environments. This shackle, compliant with ASME B30.26-2010, Fed Spec RR-C-271, and MIL-DTL-32655 standards, features a robust design with an oversized bolt for increased safety and stability. With a Working Load Limit (WLL) of 1500 lb, drop forged fabrication, and precise dimensions, this Suncor shackles series offers reliability and durability like no other. Ideal for heavy-duty applications I/A/W (In Accordance With) government standards.

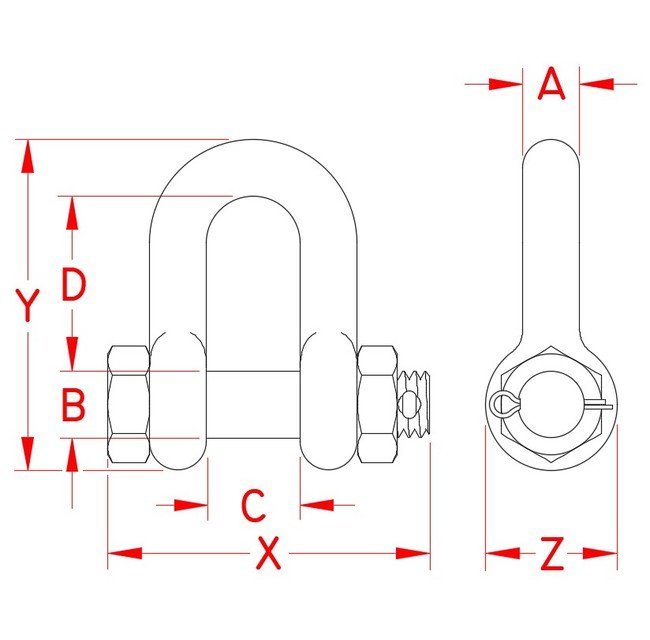

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.44 in
Specifications Dimension C
0.65 in
Specifications Dimension D
1.24 in
Specifications Dimension X
2.28 in
Specifications Dimension Y
2.24 in
Specifications Dimension Z
0.90 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.3 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
