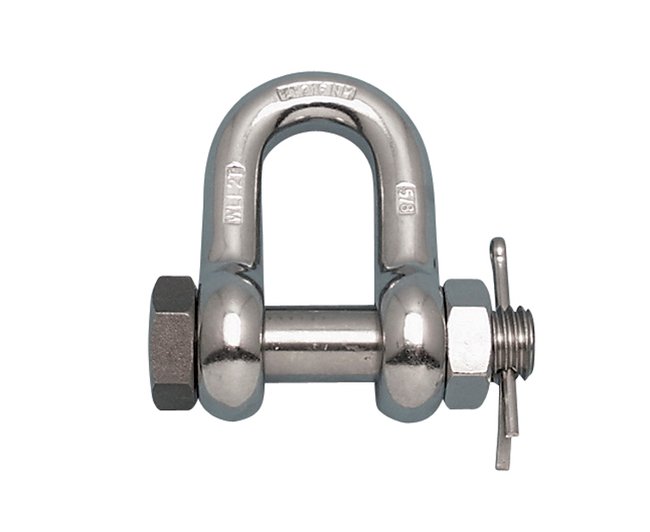

The Suncor Bolt Chain Shackle is expertly crafted from 316-NM stainless steel, ensuring unparalleled corrosion resistance for demanding industrial and marine environments. This drop-forged shackle features an oversized bolt design and adheres to stringent standards, including ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and more. With a 3000 lb Working Load Limit, Suncor's exclusive shackle combines durability, reliability, and compliance for versatile applications.

Product Specifications

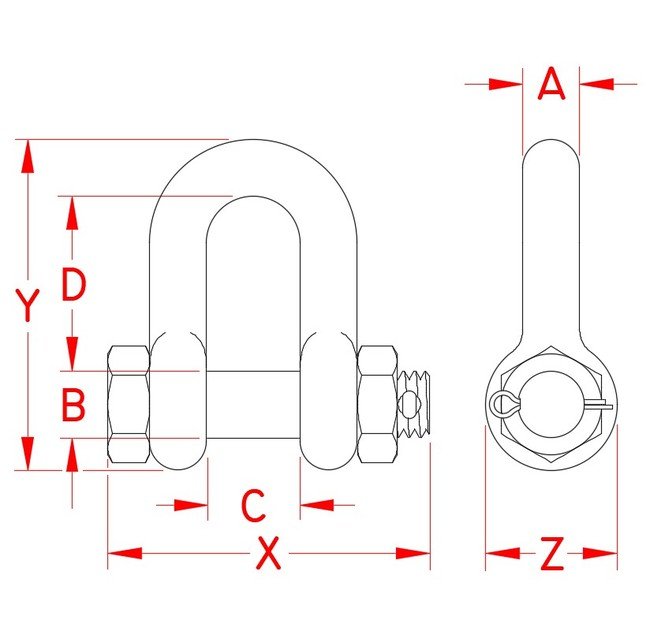

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.58 in
Specifications Dimension X
2.87 in
Specifications Dimension Y
2.93 in
Specifications Dimension Z
1.18 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.72 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
