Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

SKU:STA-87cd21

Premium-grade Suncor Bolt Chain Shackle - 316 Stainless Steel, ideal for industrial and marine use. WLL 2000 lb, corrosion-resistant, complies with ASME B30.26-2010 & more.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

Suncor Bolt Chain Shackle - 316 Stainless Steel, 7/16 in

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

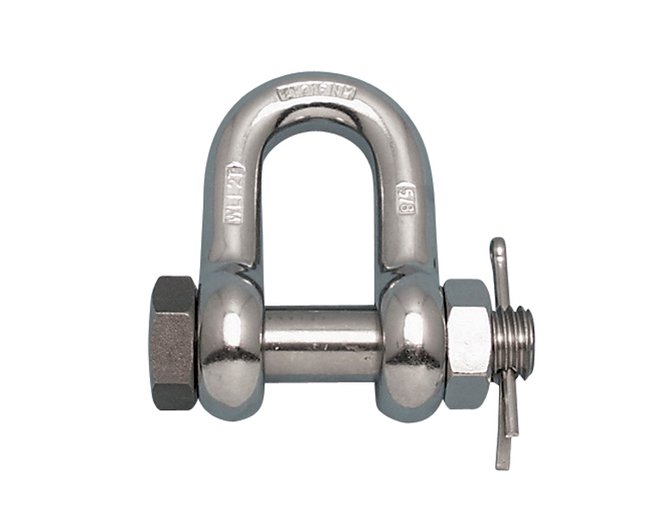

The Suncor Bolt Chain Shackle is a premium industrial and marine-grade rigging component expertly crafted from 316-NM stainless steel. Designed to resist corrosion, this shackle features a drop-forged oversize bolt for superior strength and durability. With a Working Load Limit (WLL) of 2000 lb, this shackle complies with ASME B30.26-2010, Class 3 specifications, and meets strict industry standards including Fed Spec. RR-C-271 and MIL-DTL-32655. Ideal for heavy-duty applications, this Suncor shackle guarantees reliability and safety in diverse operating environments.

Product Specifications

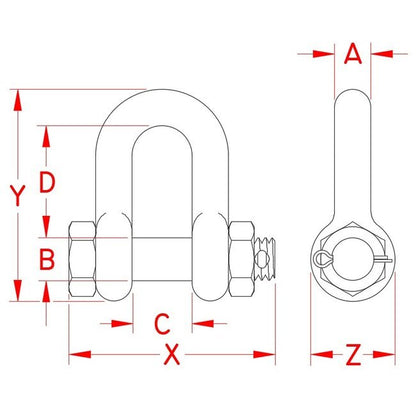

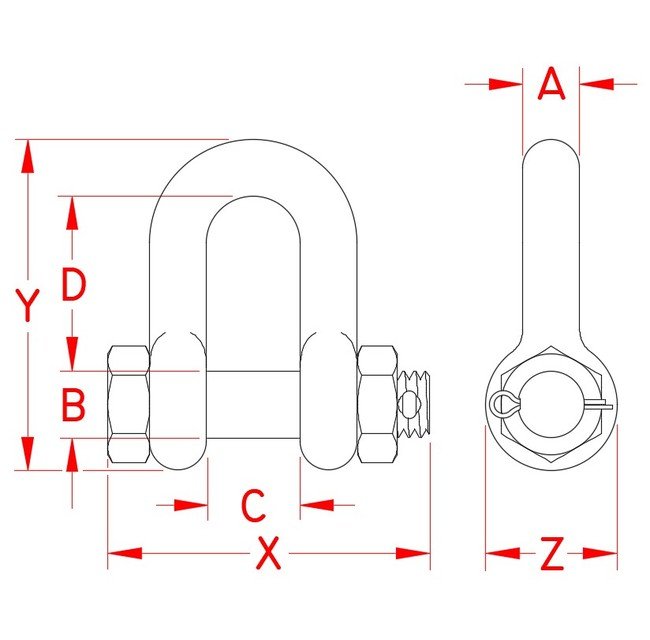

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.75 in
Specifications Dimension D
1.43 in
Specifications Dimension X
2.62 in
Specifications Dimension Y
2.62 in
Specifications Dimension Z
1.00 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.43 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
