Suncor Bolt Chain Shackle - 316 Stainless Steel, WLL 6,000 lb

Name: Suncor Bolt Chain Shackle - 316 Stainless Steel, WLL 6,000 lb
Brand: Suncor Stainless, Inc.
SKU: STA-e74a91
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-e74a91

Highly durable Suncor Bolt Chain Shackle, 316 Stainless Steel, WLL 6,000 lb - ASME, Fed Spec, MIL-DTL compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

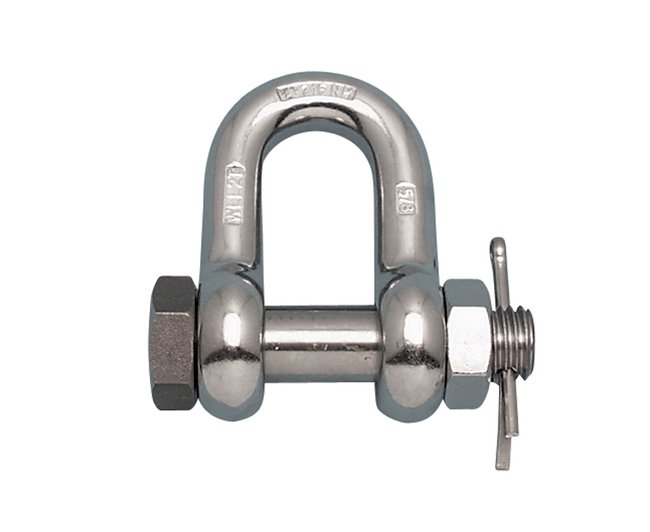

The Suncor Bolt Chain Shackle is a robust industrial and marine solution crafted from 316-NM Stainless Steel for exceptional corrosion resistance. With a generous working load limit of 6,000 lb, this drop-forged shackle ensures optimal durability and reliability. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and more, this Suncor exclusive product meets stringent industry standards for performance and safety.

Product Specifications

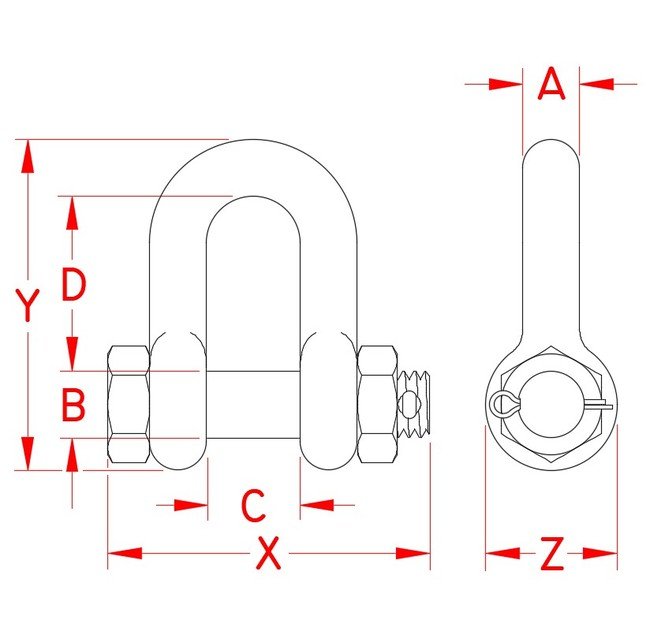

Specifications Dimension A

3/4 in

Specifications Dimension B

0.88 in

Specifications Dimension C

1.20 in

Specifications Dimension D

2.40 in

Specifications Dimension X

4.18 in

Specifications Dimension Y

4.40 in

Specifications Dimension Z

1.72 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

2.2 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor Bolt Chain Shackle - 316 Stainless Steel, WLL 6,000 lb
