Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

SKU:STA-1de41f

Durable Suncor Bolt Chain Shackle in stainless steel 316, ideal for industrial and marine use. Fed spec compliant.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

$69.99

Quantity: 1

Claim Your Seller Account

Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

Suncor Bolt Chain Shackle - Stainless Steel 316 - Federal Spec Compliant

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Bolt Chain Shackle is a robust solution crafted from durable 316-NM stainless steel, ensuring exceptional corrosion resistance for a wide range of industrial and marine applications. With an oversized bolt design, this stainless steel shackle guarantees high performance and reliability under heavy loads. Compliant with Fed Spec RR-C-271, Type IVB, Class 3 standards, this shackle is meticulously engineered to meet the stringent requirements of government and institutional buyers, making it a trusted choice for demanding environments.

Product Specifications

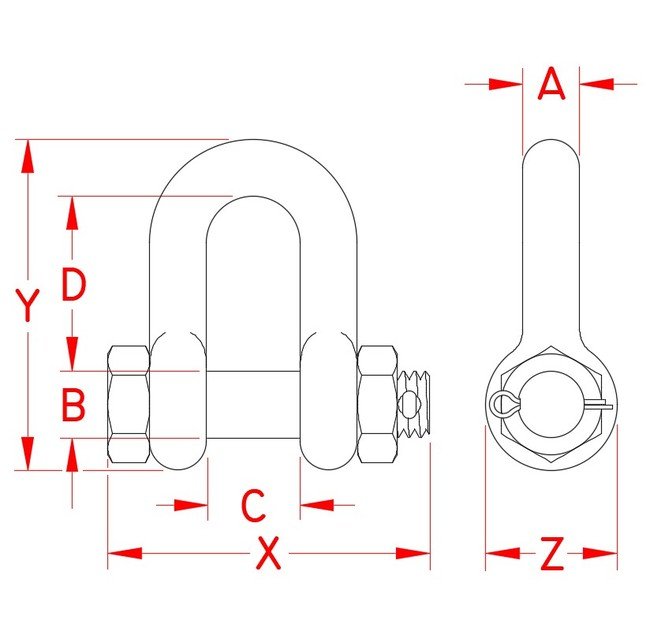

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.67 in
Specifications Dimension D
3.20 in
Specifications Dimension X
5.18 in
Specifications Dimension Y
5.85 in
Specifications Dimension Z
2.19 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
4.69 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
