Suncor Bolt Chain Shackle - Stainless Steel, 316-NM, 5/16 in
Suncor Bolt Chain Shackle - Stainless Steel, 316-NM, 5/16 in
SKU:STA-e05e3b
Premium Suncor Bolt Chain Shackle: 316 Stainless Steel, Oversize Bolt, Fed Spec RR-C-271 Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Bolt Chain Shackle - Stainless Steel, 316-NM, 5/16 in
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Bolt Chain Shackle - Stainless Steel, 316-NM, 5/16 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Bolt Chain Shackle is engineered with a robust oversize bolt and crafted from premium 316-NM stainless steel, offering exceptional corrosion resistance for marine and industrial environments. Compliant with Fed Spec RR-C-271, Type IVB, Class 3 standards, this shackle ensures reliability and durability. Available in various sizes to suit diverse applications, this drop-forged shackle with a 1,300 lb Working Load Limit (WLL) is a trusted choice for demanding tasks.
Product Specifications

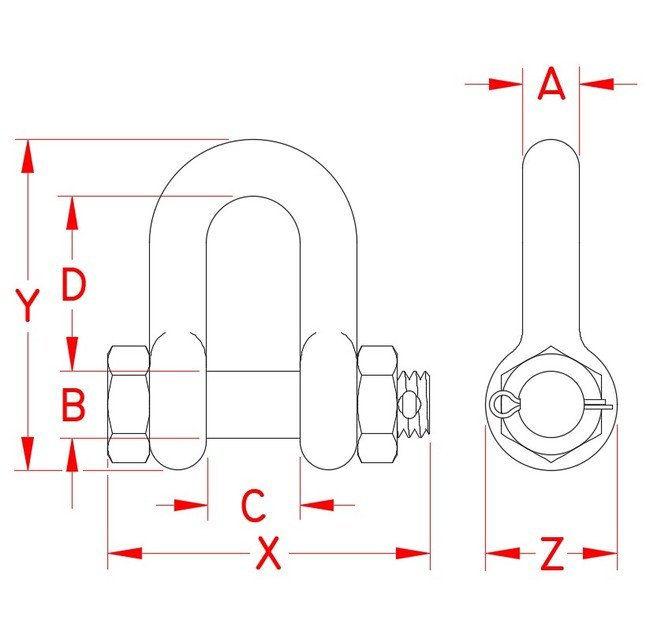

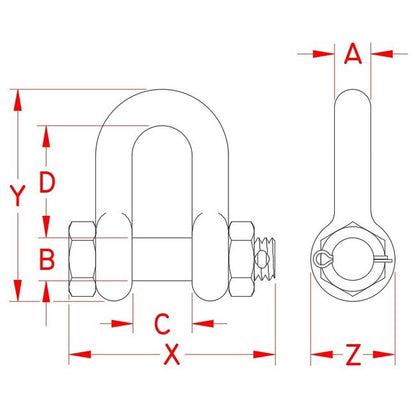

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.52 in
Specifications Dimension D
1.02 in
Specifications Dimension X
1.80 in
Specifications Dimension Y
1.85 in
Specifications Dimension Z
0.72 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.16 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
