Suncor Bow Shackle with Captive Pin
Suncor Bow Shackle with Captive Pin
SKU:STA-2a1779
Secure your marine applications with the self-locking Suncor Bow Shackle in grade 316 stainless steel. Available in various sizes for durability and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Bow Shackle with Captive Pin
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Bow Shackle with Captive Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

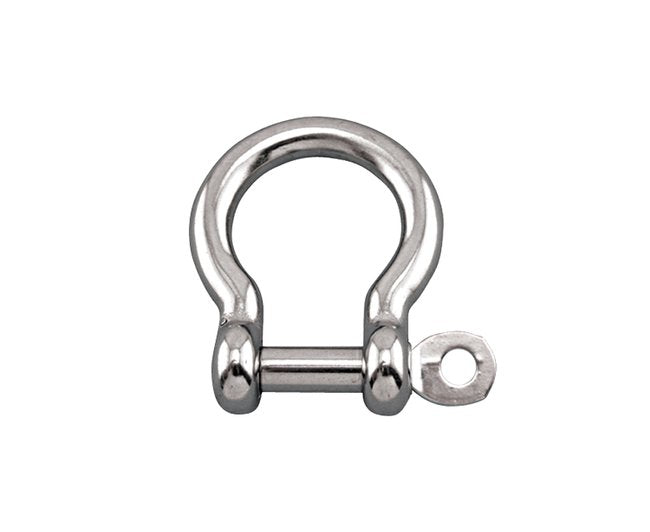

The Suncor Bow Shackle with Captive Pin features a self-locking pin integrated within the shackle body, preventing accidental disengagement. Crafted from grade 316 stainless steel, this shackle offers superior corrosion resistance and durability for marine applications. Available in sizes from 5/32" to 15/32", this precision cast shackle ensures the pin remains secure, making it ideal for critical marine operations.

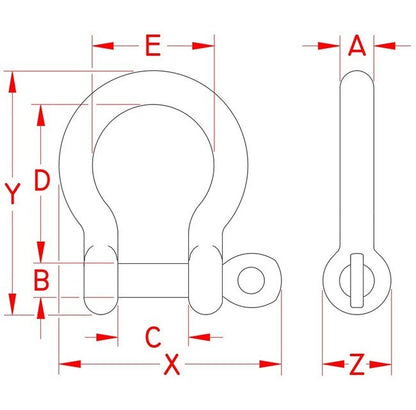

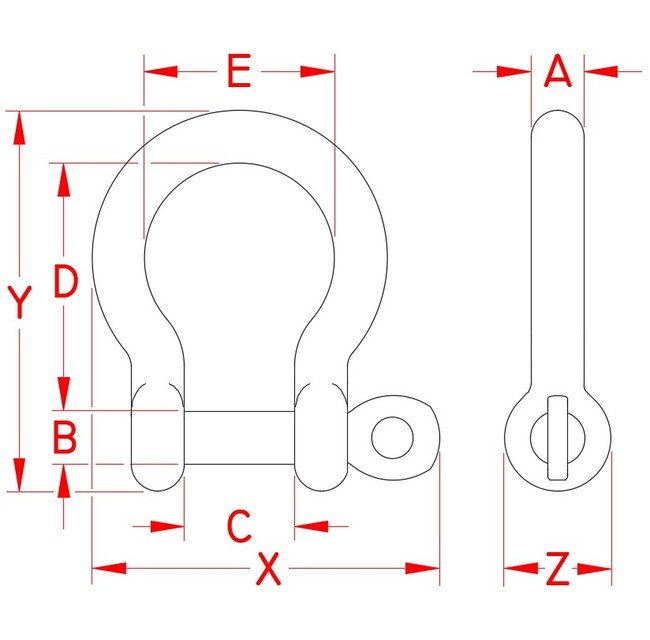

Product Specifications
Specifications Dimension A
5/32 in
Specifications Dimension B
0.17 in
Specifications Dimension C
0.33 in
Specifications Dimension D
0.75 in
Specifications Dimension E
0.52 in
Specifications Dimension X
0.91 in
Specifications Dimension Y
1.14 in
Specifications Dimension Z
0.30 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.02 lb
Specifications Working Load Limit Wll
200 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
