Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

SKU:STA-bda581

Suncor Chain Shackle Body - Precision-forged, grade 316-NM stainless steel, 1,300 lb WLL, versatile sizes, compatible replacement part

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

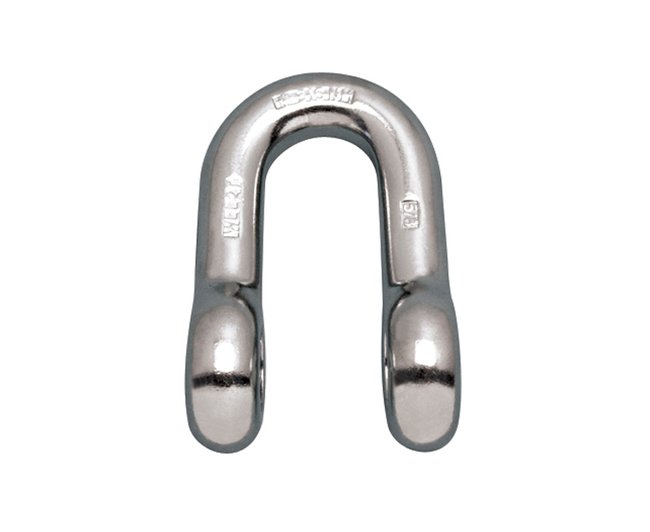

Meet your heavy-duty rigging needs with the Suncor Chain Shackle Body. Precision-forged from grade 316-NM stainless steel, this unthreaded shackle body is marked for easy tonnage identification. With a working load limit of 1,300 lb, it offers reliable performance in diverse applications. Available in various sizes from 1/4" to 1", it is a perfect replacement part compatible with Shackle Bolt. Trust in Suncor excellence for durability and safety in your rigging operations.

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
0.40 in
Specifications Dimension C
0.53 in
Specifications Dimension D
1.88 in
Specifications Dimension X
0.72 in
Specifications Dimension Y
1.82 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.09 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
