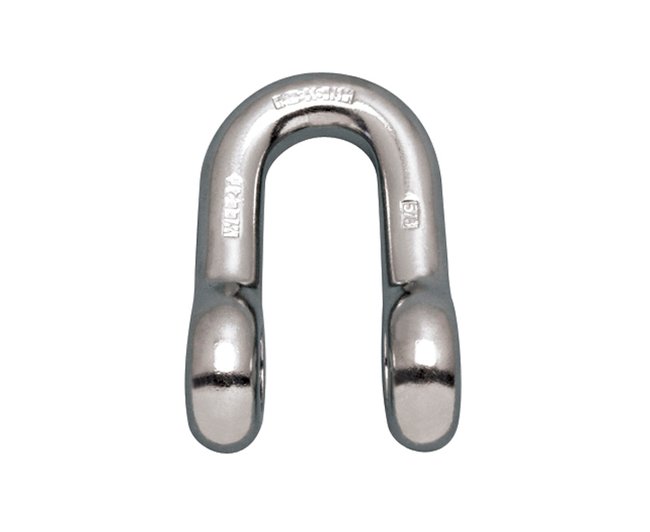

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel

Name: Suncor Chain Shackle Body - Grade 316-NM Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-58d9ad
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-58d9ad

Premium Suncor Chain Shackle Body - Grade 316-NM Stainless Steel, durable & reliable. Working Load Limit: 2000 lb.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Chain Shackle Body is a premium unthreaded component marked to the nearest fractional ton, crafted from high-quality 316-NM stainless steel. Precision-engineered with dimensions ranging from 7/16" to 1", this drop-forged shackle body ensures superior durability and reliability. With a Working Load Limit (WLL) of 2000 lb, it meets stringent quality standards, making it an ideal replacement part that seamlessly integrates with the Shackle Bolt for secure applications.

Product Specifications

Specifications Dimension A

7/16 in

Specifications Dimension B

0.52 in

Specifications Dimension C

0.75 in

Specifications Dimension D

2.66 in

Specifications Dimension X

1.02 in

Specifications Dimension Y

2.6 in

Specifications Dimension Z

1.60 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

0.25 lb

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Suncor Chain Shackle Body - Grade 316-NM Stainless Steel
