Suncor Fed. Spec. Eye & Eye Swivel - Stainless Steel Swivel Connector
Suncor Fed. Spec. Eye & Eye Swivel - Stainless Steel Swivel Connector
SKU:STA-352edc
Premium Suncor Fed. Spec. Eye & Eye Swivel - Corrosion-resistant stainless steel connector for heavy-duty applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor Fed. Spec. Eye & Eye Swivel - Stainless Steel Swivel Connector
$39.99
Quantity: 1
Claim Your Seller Account
Suncor Fed. Spec. Eye & Eye Swivel - Stainless Steel Swivel Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

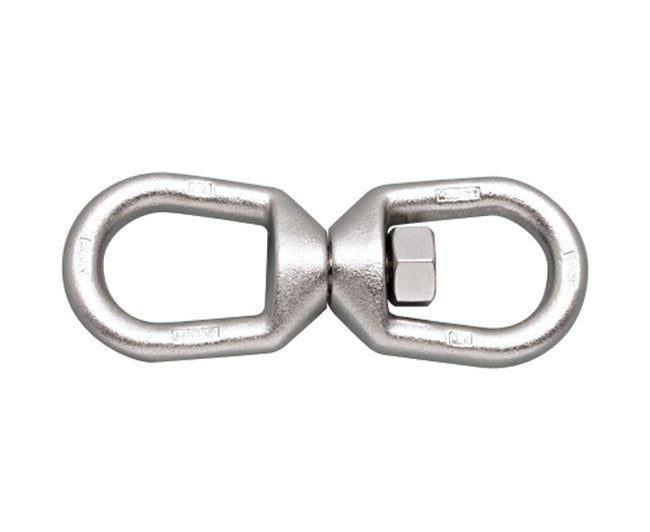

The Suncor Fed. Spec. Eye & Eye Swivel is a premium-grade connector designed for industrial applications. Crafted from drop-forged 316 stainless steel, this swivel offers exceptional corrosion resistance and durability. With a working load limit of 1500 lbs, it effectively relieves stress from twisting and knotting in chains, wire ropes, or fibrous ropes. Compliant with Federal Specification RR-C-271F Type VII, Class 2 standards, this swivel features an oversize eye opening for easy attachment. Ideal for heavy-duty use, this positioning device ensures secure connections without swiveling under load.

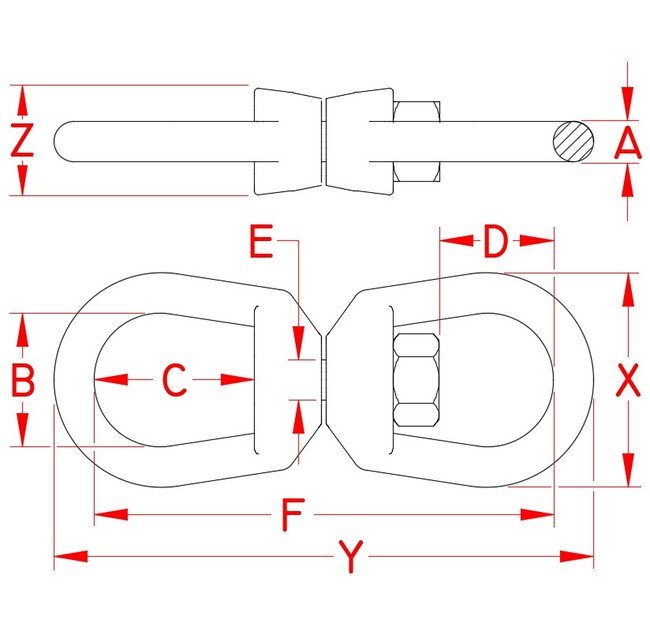

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
1.25 in
Specifications Dimension C
1.50 in
Specifications Dimension D
1.17 in
Specifications Dimension E
0.38 in
Specifications Dimension F
4.29 in
Specifications Dimension X
2.00 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
0.94 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
0.67 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
