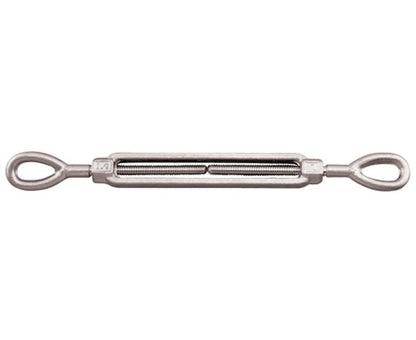

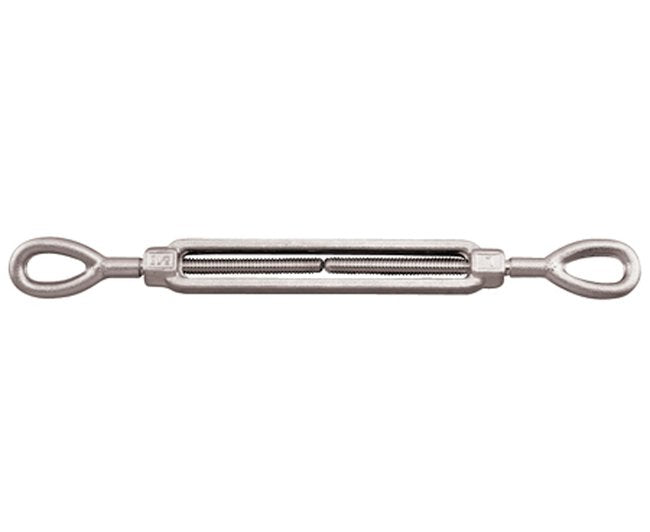

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

SKU:STA-492b2d

Enhance projects with Suncor Forged Eye & Eye Turnbuckle - Grade 316 Stainless Steel. WLL 8,000 lb, ASTM F1145-05 compliant.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Eye and Eye Turnbuckle - Grade 316 Stainless Steel

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with the Suncor Forged Eye and Eye Turnbuckle. Crafted from grade 316 stainless steel, it ensures superior corrosion resistance and durability. Available in sizes ranging from 1/4" to 1-1/4", meeting ASTM F1145-05 (2011) Type 1, Class D standards, this drop-forged turnbuckle boasts a Working Load Limit (WLL) of 8,000 lb. Trust Suncor's exclusive design for reliable performance.

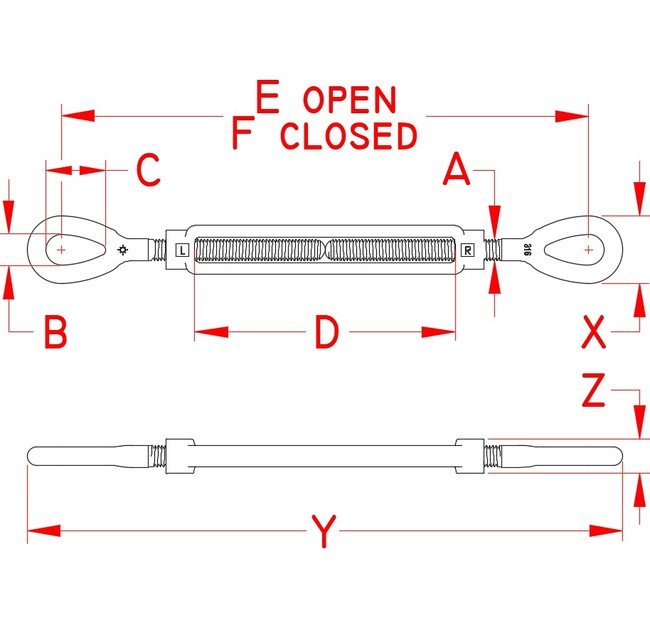

Product Specifications

Specifications Dimension A
1 in
Specifications Dimension B
1.38 in
Specifications Dimension C
2.95 in
Specifications Dimension D
6.00 in
Specifications Dimension E
23.50 in
Specifications Dimension F
20.00 in
Specifications Dimension X
3.09 in
Specifications Dimension Y
22.00 in
Specifications Dimension Z
1.52 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
9.07 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
