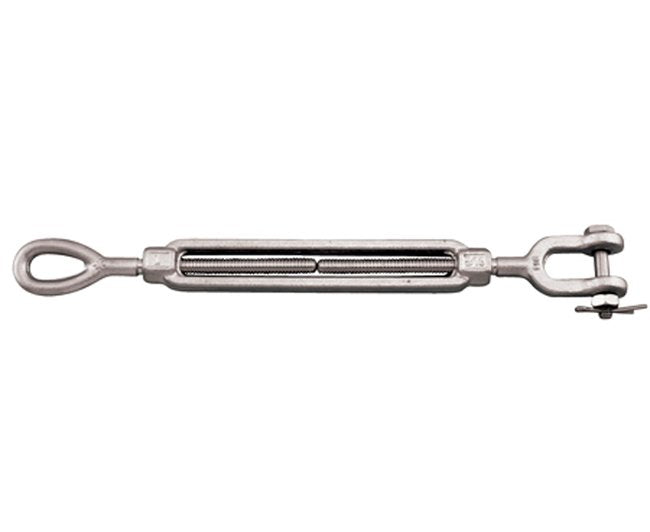

Suncor Forged Jaw and Eye Turnbuckle

Name: Suncor Forged Jaw and Eye Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-06eef6
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-06eef6

Premium Suncor turnbuckle in various sizes, 316-NM stainless steel with 8,000 lb WLL, ASTM & ASME compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Forged Jaw and Eye Turnbuckle with an open body is crafted from top-grade 316-NM stainless steel, ensuring exceptional corrosion resistance and longevity. Available in a range of sizes from 1/4" to 1-1/4", this turnbuckle is ideal for marine and industrial applications. Compliant with ASTM F1145-05 (2011) Type 1, Class H standards, and ASME B30.26-2010 Section 26-2.0, it boasts a Working Load Limit (WLL) of 8,000 lb. Trust this Suncor exclusive for reliability and performance.

Product Specifications

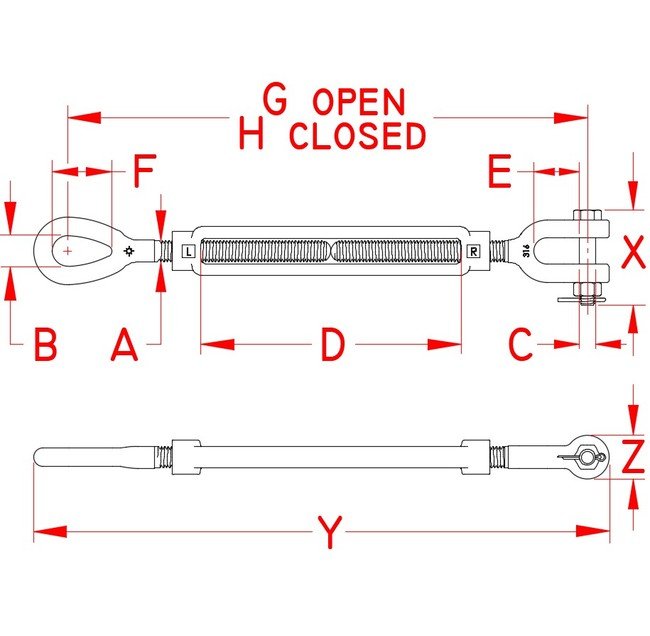

Specifications Dimension A

1 in

Specifications Dimension B

1.38 in

Specifications Dimension C

0.88 in

Specifications Dimension D

6.00 in

Specifications Dimension E

2.18 in

Specifications Dimension F

3.00 in

Specifications Dimension G

23.00 in

Specifications Dimension H

19.00 in

Specifications Dimension X

4.52 in

Specifications Dimension Y

21.75 in

Specifications Dimension Z

2.13 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

10 lb

Specifications Working Load Limit Wll

8,000 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

Suncor Forged Jaw and Eye Turnbuckle
