Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

SKU:STA-389ac5

Premium Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel for marine and industrial use. Meets ASTM F1145-05 (2011).

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

$69.99

Quantity: 1

Claim Your Seller Account

Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

Suncor Forged Jaw and Jaw Turnbuckle - Grade 316 Stainless Steel

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

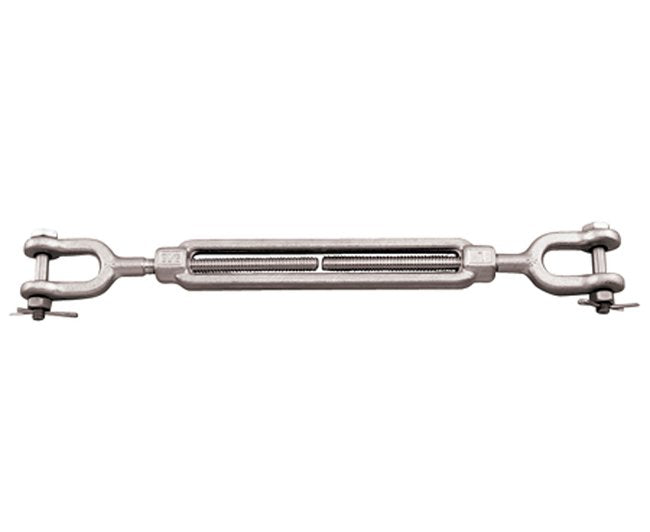

The Suncor Forged Jaw and Jaw Turnbuckle is a reliable solution crafted from grade 316 stainless steel, offering exceptional corrosion resistance and durability. Designed with precision dimensions meeting ASTM specification F1145-05 (2011) Type 1, Class G, and a Working Load Limit (WLL) of 5,200 lb, this turnbuckle is ideal for marine and industrial applications. With a fabrication type of drop forged and compliance with ASME B30.26-2010 Section 26-2.0, this turnbuckle guarantees performance and longevity in demanding environments.

Product Specifications

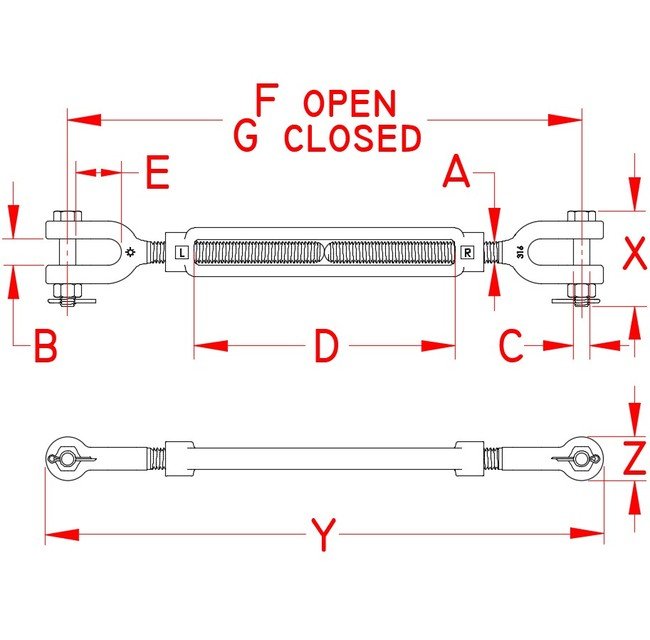

Specifications Dimension A
3/4 in
Specifications Dimension B
1.00 in
Specifications Dimension C
0.63 in
Specifications Dimension D
6.00 in
Specifications Dimension E
1.56 in
Specifications Dimension F
21.50 in
Specifications Dimension G
15.00 in
Specifications Dimension X
3.38 in
Specifications Dimension Y
17.00 in
Specifications Dimension Z
1.60 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
4.93 lb
Specifications Working Load Limit Wll
5,200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
