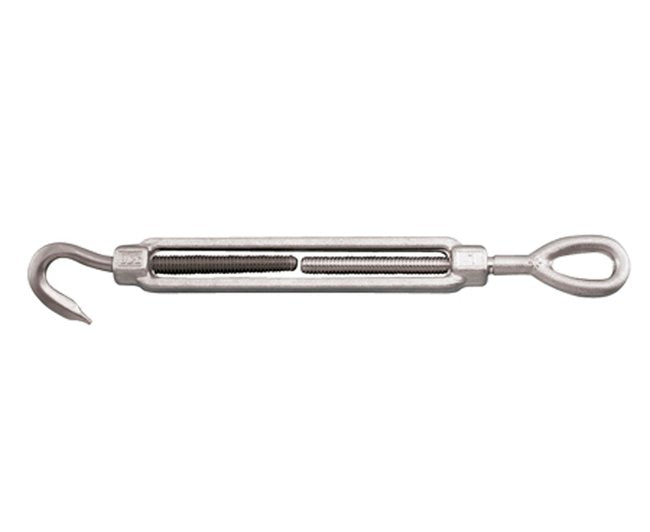

Suncor Forged Stainless Steel Hook and Eye Turnbuckle
Suncor Forged Stainless Steel Hook and Eye Turnbuckle
SKU:STA-c8e961
Enhance projects with the durable Suncor Forged Stainless Steel Turnbuckle featuring a 1,600 lb WLL & ASTM compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor Forged Stainless Steel Hook and Eye Turnbuckle
$39.99
Quantity: 1
Claim Your Seller Account
Suncor Forged Stainless Steel Hook and Eye Turnbuckle
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial projects with the Suncor Forged Hook and Eye Turnbuckle. Crafted from grade 316-NM stainless steel, this turnbuckle offers unbeatable corrosion resistance and durability. With a Working Load Limit (WLL) of 1,600 lb, it meets ASTM F1145-05 (2011) Type 1, Class D specifications. The drop-forged construction ensures reliability and strength for a variety of applications.

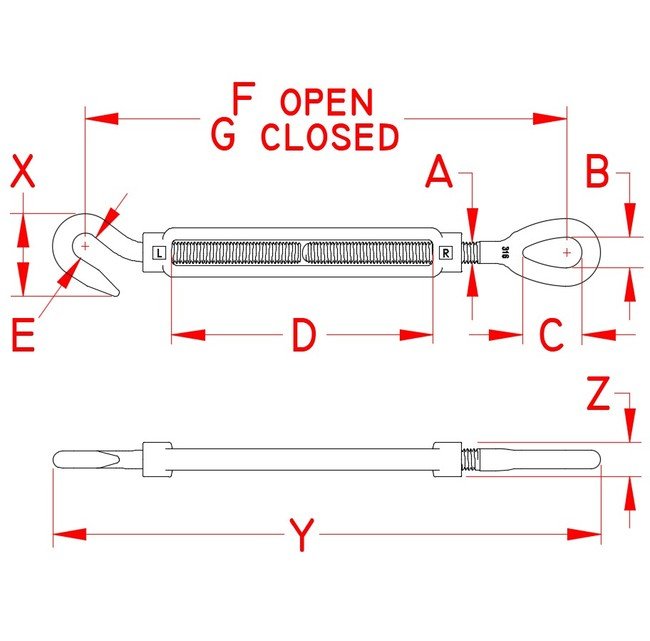

Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
0.87 in
Specifications Dimension C
1.73 in
Specifications Dimension D
6.00 in
Specifications Dimension E
0.82 in
Specifications Dimension F
20.00 in
Specifications Dimension G
13.50 in
Specifications Dimension X
2.30 in
Specifications Dimension Y
16.00 in
Specifications Dimension Z
1.02 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D
Specifications Suncor Exclusive
Yes
Specifications Weight
2.34 lb
Specifications Working Load Limit Wll
1,600 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
