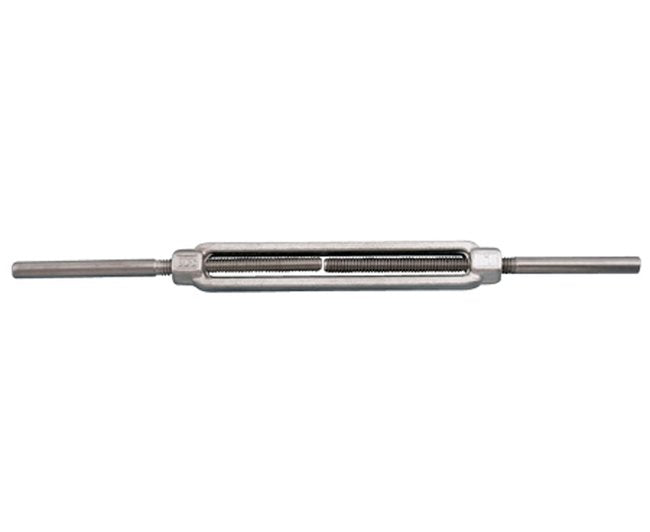

Suncor Forged Stainless Steel Stub Turnbuckle

Suncor Forged Stainless Steel Stub Turnbuckle

SKU:STA-1621a8

Durable Suncor SS Turnbuckle for marine & industrial applications, ASTM F1145-05 compliant

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Forged Stainless Steel Stub Turnbuckle

Suncor Forged Stainless Steel Stub Turnbuckle

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Forged Stainless Steel Stub Turnbuckle

Suncor Forged Stainless Steel Stub Turnbuckle

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with the Suncor Forged Stainless Steel Stub Turnbuckle. Made from grade 316 stainless steel, these turnbuckles provide exceptional corrosion resistance and durability. Available in sizes from 1/4" to 1-1/4", these turnbuckles meet ASTM specification F1145-05 (2011) Type 1, Class D, as well as MIL-DTL-32655 standards. With a Working Load Limit (WLL) of 8,000 lb and precision fabrication through drop forging, these turnbuckles ensure performance and reliability in challenging environments.

Product Specifications

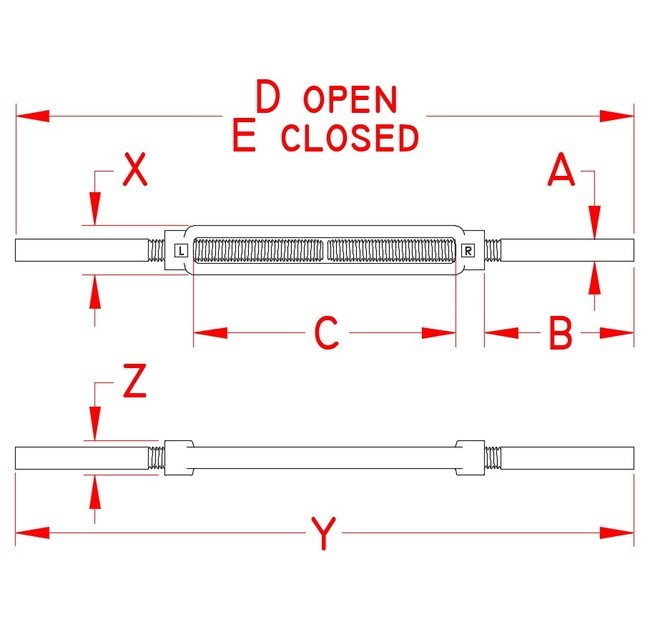

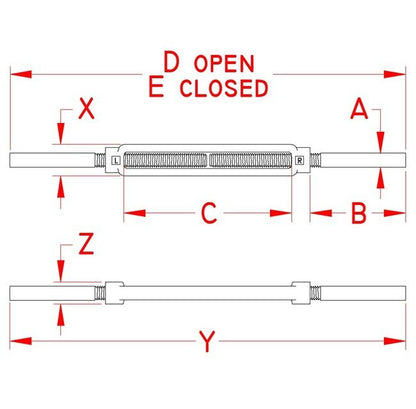

Specifications Dimension A
1 in
Specifications Dimension B
4.65 in
Specifications Dimension C
6.00 in
Specifications Dimension D
24.00 in
Specifications Dimension E
18.00 in
Specifications Dimension X
2.23 in
Specifications Dimension Y
18.00 in
Specifications Dimension Z
1.53 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
6.32 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
