Suncor Forged Stub & Stub Turnbuckle - Stainless Steel
Suncor Forged Stub & Stub Turnbuckle - Stainless Steel
SKU:STA-8cd017
Premium grade 316 stainless steel turnbuckle for marine & industrial use, ASTM F1145-05 compliant, WLL 2200 lb
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Suncor Forged Stub & Stub Turnbuckle - Stainless Steel
$49.99
Quantity: 1
Claim Your Seller Account
Suncor Forged Stub & Stub Turnbuckle - Stainless Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

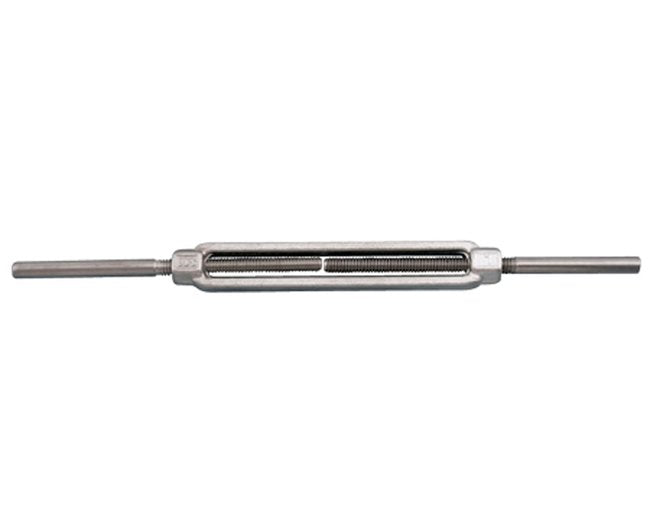

Enhance your marine and industrial projects with the Suncor Forged Stub and Stub Turnbuckle. Crafted from grade 316 stainless steel, these turnbuckles offer superior corrosion resistance and durability. Available in sizes ranging from 1/4" to 1-1/4", they meet ASTM F1145-05 (2011) Type 1, Class C standards. With a working load limit of 2200 lb, these drop forged turnbuckles are ideal for heavy-duty applications.
Product Specifications

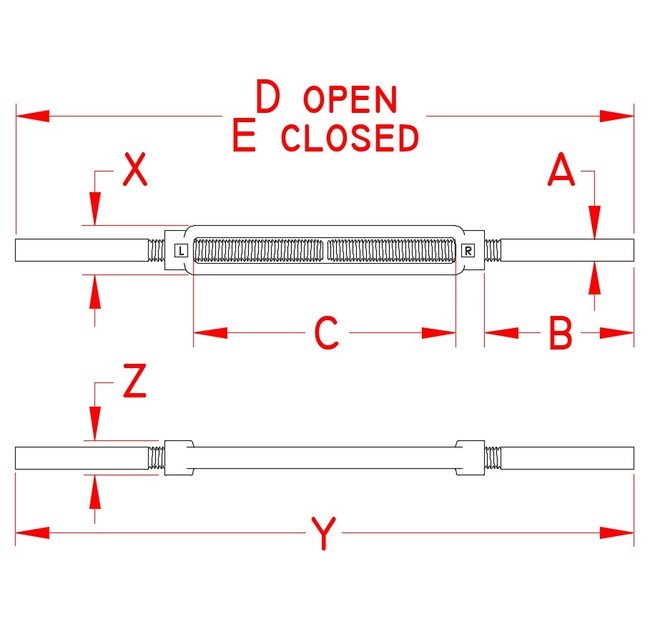

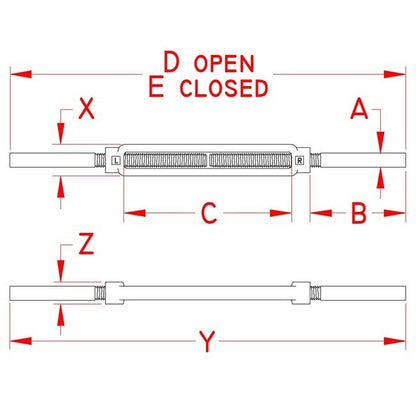

Specifications Dimension A
1/2 in
Specifications Dimension B
3.30 in
Specifications Dimension C
6.00 in
Specifications Dimension D
20.00 in
Specifications Dimension E
14.00 in
Specifications Dimension X
1.16 in
Specifications Dimension Y
14 in
Specifications Dimension Z
0.83 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
1.22 lb
Specifications Working Load Limit Wll
2200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
